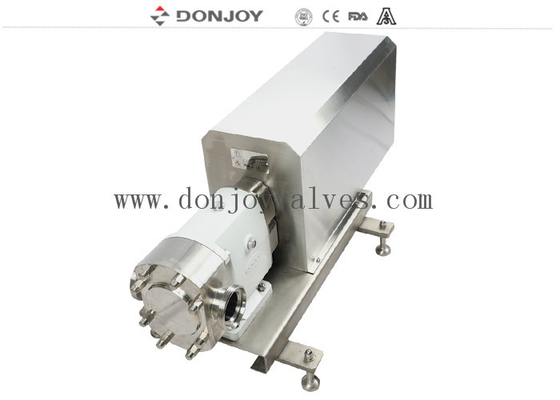

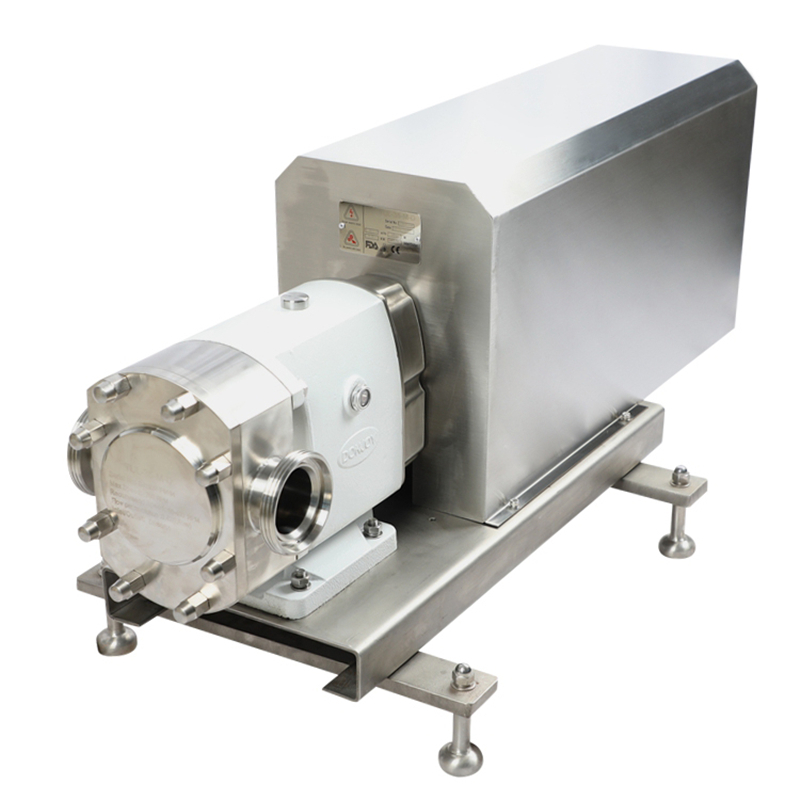

TUL-20 Purity Lobe Pump Transfer High Visocisty With Motor Cover

TUL-20 Purity Lobe Pump Transfer High Visocisty With Motor Cover

    • TUL-20 Purity Lobe Pump Transfer High Visocisty With Motor Cover
    • TUL-20 Purity Lobe Pump Transfer High Visocisty With Motor Cover
  • TUL-20 Purity Lobe Pump Transfer High Visocisty With Motor Cover

    Product Details:

    Place of Origin: CHINA
    Brand Name: DONJOY
    Certification: CE,3A,FDA
    Model Number: TUL/TUR

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiation
    Packaging Details: Wooden box
    Delivery Time: 10-30 working days
    Payment Terms: T/T, LC, Credit Card
    Supply Ability: 30 sets 30 working dyas
    Contact Now
    Detailed Product Description
    Materials: Sanitary Lobe Pump Size: TUL / TUR 20 - 125
    Operation: Motor Mechanical: SIC / SIC / EPDM
    Connection: Clamped Pressure: 1- 15 Bar
    Medium: Fulid Etc. Feature: Could Be With Frequency Converter
    High Light:

    Mechanical SIC Sanitary Lobe Pump

    ,

    Clamped SIC Sanitary Lobe Pump

    ,

    EPDM Seal Sanitary Lobe Pump

    TUL-20 purity lobe pump transfer high visocisty with motor cover



    Technical feature

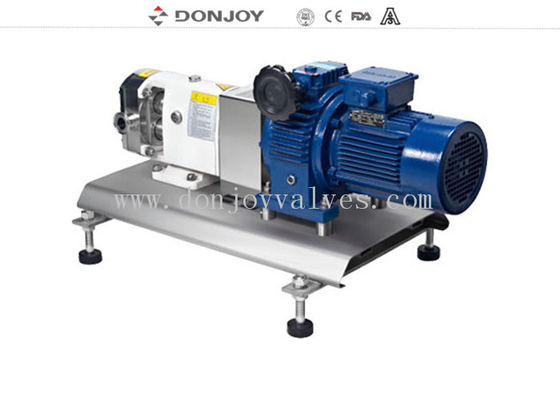

    A. Maual Continuously Variable Transmission
    B. Frequency Cnverter adjust motor gear box
    C. Fixed speed output transmission




    Description
    Options
    1. Mechanical seal: SIC / SICE / EPDM, TC / TC, EPDM
    2. Single seal, Double Mechanical Seal

    TUL-20 Purity Lobe Pump Transfer High Visocisty With Motor Cover 0
    3. Rotors: 2 leave rotor, 3 leave rotors, Butterfly rotors, Single Butterfly rotors

    TUL-20 Purity Lobe Pump Transfer High Visocisty With Motor Cover 1
    4. Gasket: FPM(Viton),NBR, EPDM
    5. Relief valve at front cover r external by –pass
    6. Built-in safety valve
    7. End-face heat jacket
    8. Complete heat jacket
    9. Vertical TUR Series or Horizontal TUL Series
    10. Different Drives and Fixes
    11. Assembly on a stainless steel baseplate
    12. Connection: Clamp(DIN32676,3A,ISO), Threaad(DIN,SMS,RJT,IDF), Butt weld, Flange
    13. Motor Type B5 motor frequency 50HZ, 60HZ
    14. Voltage(v)220-240, 360-400, 420-460, 630-690



    Specifications

    Product Name:

    TUL-60 rotary lobe pump with Mechanical manual adjust motor with motor for honey

    Material:

    SS304/SS316L/1.4301/1.4404

    Seal Material:

    SIC/SIC/EPDM (Standard, FDA approval)

    Max. Flow:

    62m3/h / 395 GPM

    Max.pressure:

    12bar/ 174PSI

    Max. rev:

    1450 rmp

    Rotor Type:

    2-leaves, 3-leaves, butterfly, signal butterfly

    Installation Could be installed with frequency converter
    frequency converter Optional

    Mechanical seal:

    SIC/SiC/EPDM(Standard)

    Voltage:

    110V, 220V, 380V

    Motor:

    ABB,SEW, 50hz/ 60hz

    Surface treatment:

    Inner polished and Sandblast outside

    Availably connection:

    Clamp, Thread Butt weld, Flange

    Availably standard:

    DIN, SMS, 3A, RJT, ISO/IDF

    Operated:

    Electic

    Certificate:

    3A/54-02 (1580), PED/97/23/EC,
    FDA.177.2600, ISO9001/2008

    Application scope:

    Dairy, food, beverage, pharmacy, cosmetic, etc


    Design and Features
    1. Horizontal TUL, Vetrical TUR
    2. Bare-Shaft Consturction
    3. Hygienic Design of the attachement of the rotors
    4. Sanitary Mechanical Seal, Easy cleaning and maintenace
    5. Applied to CIP Cleaning and sic Sterlization
    6. according to USA 3A Standard


    Applications
    This pump is deal for the transfer of viscous as well as low-wiscous media in the food processing, cosmetics and pharmaceutical Industries.


    Principles
    1. As the lobes rotates, the space on the suciton side increasese as one lobe is distanced from another, thus creating a partial vacuum which draws the fluid in to the pump chamber.
    2. As they are rotated by the shafts,each lobe is consecutively filled and the fluid is displaced to the delivery side.The small gaps between the robes and between the lobes and the walls of the pump body ensure that the spaces are duly filled.
    3. The pump housing is ompletely filled and the fluid escapes through the teeth of the lobes and is forced against the walls of the spaces. Which contributes to the pump aciton.



    PUMP INLET&OUTLET CONNECTION

    TUL-20 Purity Lobe Pump Transfer High Visocisty With Motor Cover 2



    Pump model and weight



    PUMP model Input shaft torque(NM) Maximum axial radial load (N) Inner diameter connection size
    [mm]
    Recommended maximum theoretical soft particle size
    [mm]
    Bare pump weight [kg]
    STUL-10 15 224 22.4 6 12
    TUL-20 60 750 22.4 10 32
    TUL-23 60 750 35.1 20 34
    TUL-25 60 750 47.8 20 39
    TUL-30 123 1237 47.8 25 60
    TUL-35 123 1237 59.5 25 63
    TUL-55 123 1237 66 25 65
    TUL-60 123 1237 72.2 25 68
    TUL-70 416 2588 72.2 40 151
    TUL-80 416 2588 72.2 40 151
    TUL-100 416 2588 97.6 40 160
    TUL-125 416 2588 125 40 165



    Lobe pump Curve



    TUL-20 Purity Lobe Pump Transfer High Visocisty With Motor Cover 3

    Drawing of Lobe pump



    Competitive Advantage
    “DONJOY is the only company that pass nine series of products by American 3A certification organization in Asian sanitary pumps and valves field.”
