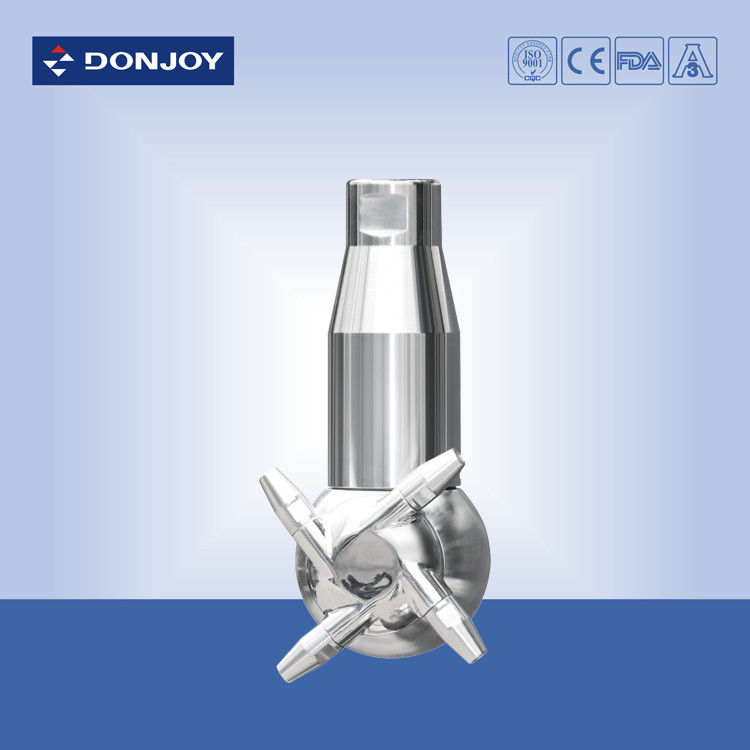

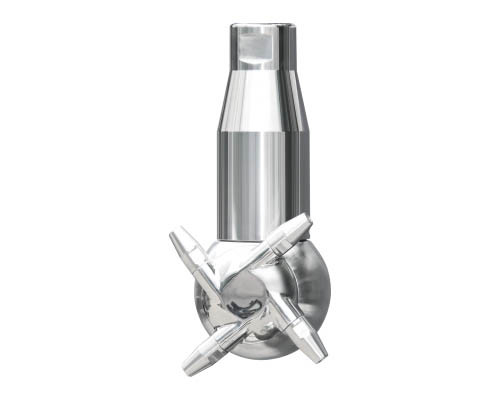

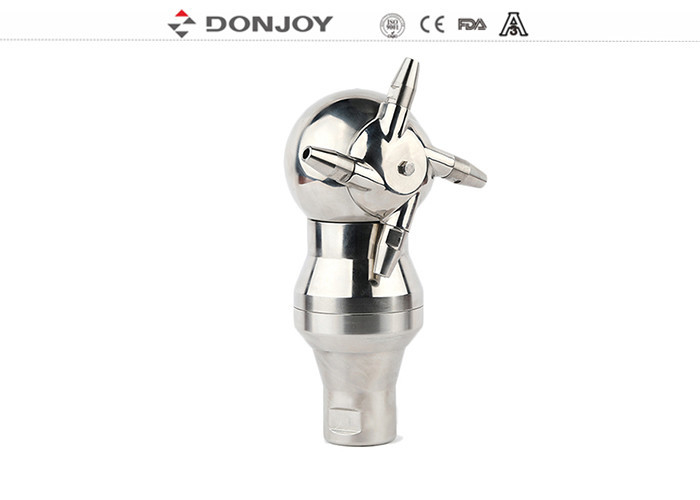

Rotary Jet Head 360° Inject Tank Cleaner 1.5" BSP Thread Connection

Rotary Jet Head 360° Inject Tank Cleaner 1.5" BSP Thread Connection

    • Rotary Jet Head 360° Inject Tank Cleaner 1.5" BSP Thread Connection
    • Rotary Jet Head 360° Inject Tank Cleaner 1.5" BSP Thread Connection
    • Rotary Jet Head 360° Inject Tank Cleaner 1.5" BSP Thread Connection
  • Rotary Jet Head 360° Inject Tank Cleaner 1.5" BSP Thread Connection

    Product Details:

    Place of Origin: CHINA
    Brand Name: DONJOY
    Certification: CE/FDA/ISO/3A

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Packaging Details: Carton, Wooden Case
    Payment Terms: T/T,L/C, Credit Card
    Contact Now
    Detailed Product Description
    Flow: 4-45 M³ Inlet Pressure: 4-10 Bar
    Max Temperature: 95 ℃ Connection: Thread BSP
    Suggest Pressure: 6 Bar Material: 316L, PTFE

    Rotary Jet Head 360° Inject Tank Cleaner 1.5" BSP Thread Connection
    Quick Detail

    Cleaning Ball
    Type: 360 Degree, 180 Degree, 270 Degree
    Nozzle Size:5mm, 6mm, 7mm, 8mm, 4mm
    Connection : Thread, NPT or BSP Thread , Clamp

    Technical Parament
    Flow :4-45m³
    Inlet Pressure:4-10Bar
    Suggest Pressure:6Bar
    Max Temperature:90℃
    Lubrication: Cleaning Medium

    Specification


    Product Name:

    rotary jet head 360°,inject, Tank cleaner, 1.5" BSP Thread connection

    Material:

    SUS304/316L;PTFE

    Flow:

    4-45m³/h

    Inlet Pressure:

    4-10 bar

    Suggest Pressure:

    6 bar

    Availably  size:

    1.5"-DN40

    Connection way:

    thread BSP,clamp

    Max temperature:

      95°C

    Max environment temperature:

    140°C

    Application Scope:

    Widely used  in food and diary products ,Pharmaceutical, Chemicl treatment,Transport equipment, Beverage

    Typical application:

    process containers and reactor; tank; transport irrigation equipment; fermentation; yeast breeding

    Advantages:

    Self-cleaning; low liquid consumption; heath design

    Typical cleaning methods:

    fixed installation CIP system

    Packaging Details:

    Bubble pack for each. Outside packing are carton or plywood cases. Or as per the request of customers.

    Delivery details:

    Usually within 20 days after receiving T/T down payment.




































    Typical Application
    1.Fixedinstallaiton CIP System
    2.Process Containers and reator
    3.Store tank
    4.Transport tank equipment
    5.Fermentation
    6.Yeast Breeding

    Operating Principle

    1.      Rotary injector is hygenic tank cleaner,with 360degree coverage in a given tank or process container, the rotary jet head is driven by flow liquid through impeller in the pressure and flow increase will increase the length of the jet and the impact to the tank or vessel surface

    2.      Rotary injector with unique self cleaning funciton, internal is completely cleaning.



    Drawing

    Rotary Jet Head 360° Inject Tank Cleaner 1.5" BSP Thread Connection


    Delivery time: About one week/7 Days
    Packing : If by air or by expres will put into the cartons. If by sea will packed in the woodencase
    Payments: T/T,L/C,Western union. Credit Card
    MOQ: 1PCS
    If you need mor informations,Please do not hesitate to contact us.
