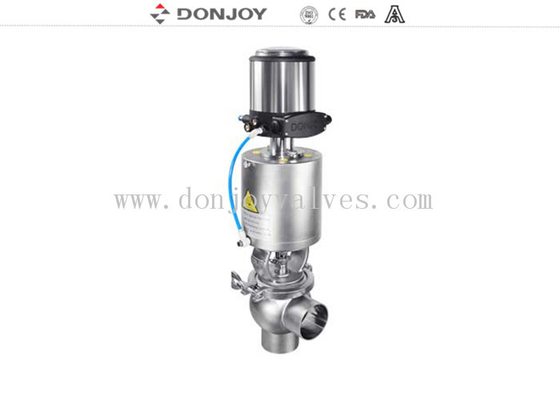

Aseptic Reversing Seat Valve DN25-DN150 with pneumatic actuator 304 / 316L

Aseptic Reversing Seat Valve DN25-DN150 with pneumatic actuator 304 / 316L

    • Aseptic Reversing Seat Valve DN25-DN150 with pneumatic actuator 304 / 316L
    • Aseptic Reversing Seat Valve DN25-DN150 with pneumatic actuator 304 / 316L
    • Aseptic Reversing Seat Valve DN25-DN150 with pneumatic actuator 304 / 316L
    • Aseptic Reversing Seat Valve DN25-DN150 with pneumatic actuator 304 / 316L
  • Aseptic Reversing Seat Valve DN25-DN150 with pneumatic actuator 304 / 316L

    Product Details:

    Place of Origin: CHINA
    Brand Name: DONJOY
    Certification: CE,3A,FDA

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: US $400 - 1,200 / Piece
    Packaging Details: carton box
    Delivery Time: according to order
    Payment Terms: T/T, LC, Credit Card
    Supply Ability: 1000 Piece/Pieces per Month
    Contact Now
    Detailed Product Description
    Material: SS304 / 316 Media: Water Etc.
    Operate Mode: Pneumatic Size: DN25 - DN150
    Pressure: Medium Pressure Valve Seat: Single Seat
    Product Name: Reversing Valve Ra: Could Reach ≤0.5μm

    Aseptic Reversing Seat Valve DN25-DN150 with pneumatic actuator 304 / 316L


    Quick detail
    Aseptic Reversing Seat Valve
    Aseptic Regulating Seat Valve
    Aseptic Divert Seat Valve



    Specification

    Product Name:

    sanitary aseptic reversing valve with pneumatic actuator for

    conveying fluid

    Valve Body Material:

    Stainless steel

    Seal Material:

    EPDM (standard) FPM/SILICON/NBR, FDA177.2600

    Max Working Pressure:

    10 bar

    Max.Working Temperature:

    130°C

    Available size:

    DN25 - DN150 or 1" - 6"

    Available connection:

    Clamp/welding/thread/special connection

    Available standard:

    3A/DIN/SMS/RJT/ISO/IDF

    Operated:

    Pneumatic operation

    Structure

    Aseptic type

    Certificate:

    3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO

    Application scope:

    Dairy, food, beverage, pharmacy, cosmetic etc

    Body seat

    single seat

    Body type

    20type,30type,11type,12type,21type,22type,31type,32type

    Feature of seal:

    Elastic compression, friction - free



    Feature
    The material connected with others: AISI 316L / 1.4404
    The material in other part: AISI 304
    Seal ring: EPDM FDA 177.2600
    Inernal surface finish: Ra ≤ 0.8μm
    External surface finish: CNC fine machining


    Options
    Gasket: NBR / MVQ / FPM
    Pneumatic actuator of double acting
    Inductive position sensor
    C - TOP control head
    Position sensor


    Product drawings

    Aseptic Reversing Seat Valve DN25-DN150 with pneumatic actuator 304 / 316L
