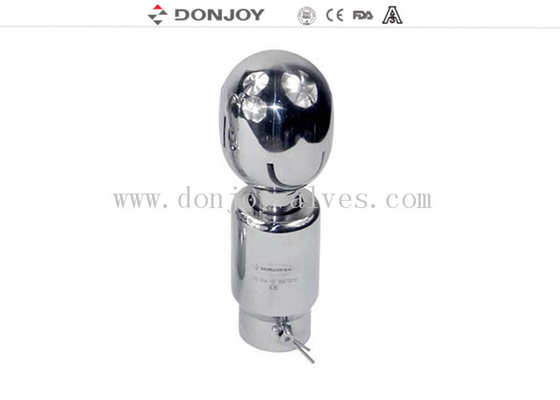

DIN / 3A / SMS Rotating CIP Spray Ball Thread Connection Washing Nozzle

DIN / 3A / SMS Rotating CIP Spray Ball Thread Connection Washing Nozzle

    • DIN / 3A / SMS Rotating CIP Spray Ball Thread Connection Washing Nozzle
    • DIN / 3A / SMS Rotating CIP Spray Ball Thread Connection Washing Nozzle
    • DIN / 3A / SMS Rotating CIP Spray Ball Thread Connection Washing Nozzle
  • DIN / 3A / SMS Rotating CIP Spray Ball Thread Connection Washing Nozzle

    Product Details:

    Place of Origin: CHINA
    Brand Name: DONJOY
    Certification: CE/FDA/ISO/3A

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: $8/pc
    Packaging Details: Carton, Wooden Case
    Payment Terms: T/T,L/C, Credit Card
    Supply Ability: 3000 pcs
    Contact Now
    Detailed Product Description
    Brand: DONJOY SIZE: 1/2"-3"
    Stanadard: DIN,3A,SMS,ISO Connection: Welded, Clamped,Thread,pin Connection
    Polished: Mirror, Matt Material: Stainless Steel

    DIN / 3A / SMS Rotating CIP Spray Ball Thread Connection Washing Nozzle



    Quick Detail



    Cleaning Ball

    Type: 360 Degree, 180 Degree, 270 Degree

    Connection: Thread, Pin, Weld, Clamp

    Materials : SS304,SS316L



    Specification


    Product Name:
    Rotary Tank cleanerl. Spary claing ball, Elliptial / Round Ball,Thread Connection
    Material: SUS304/316L;PTFE
    Flow: 4-45m³/h
    Inlet Pressure: 4-10 bar
    Suggest Pressure: 6 bar
    Availably size: 3/4"-2.5"
    Connection way: thread BSP,clamp Pin, Welded
    Max temperature: 95°C
    Max environment temperature: 140°C
    Application Scope: Widely used in food and diary products ,Pharmaceutical, Chemicl treatment,Transport equipment, Beverage
    Typical application: process containers and reactor; tank; transport irrigation equipment; fermentation; yeast breeding
    Advantages: Self-cleaning; low liquid consumption; heath design
    Typical cleaning methods: fixed installation CIP system
    Packaging Details: Bubble pack for each. Outside packing are carton or plywood cases. Or as per the request of customers.
    Delivery details: Usually within 20 days after receiving T/T down payment.

























































    Typical Application

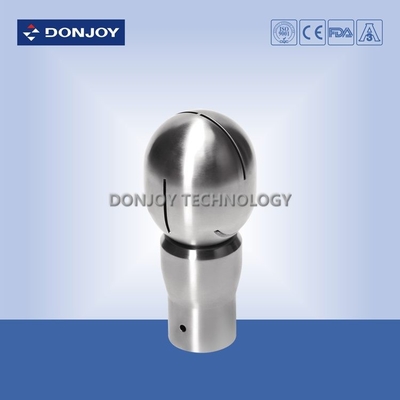

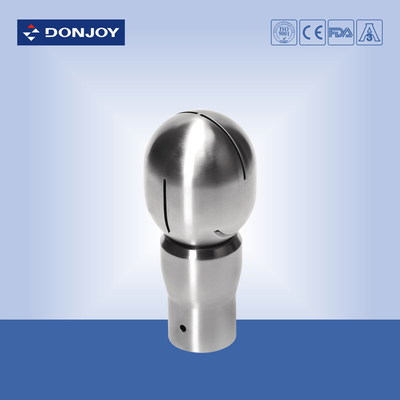

    Rotary cleaning ball: Ball is Elliptical and Round. Jet orifice is flat slot shape.

    1.Fixedinstallaiton CIP System

    2.Process Containers and reator

    3.Store tank

    4.Transport tank equipment

    5.Fermentation

    6.Yeast Breeding



    Bolted Cleaning Ball Size Table



    Q INCH DIN Ht Hs





    C

    2Bar
    Size ID Size ID

    Spray

    Radius(M)

    Cleaning Radius(m) Flow Rat(m³/H)
    28 1/2” 12.9 DN10 12.2 90.5 93.5 7 2.5 1.1 2.5
    3/4” 19.2 DN15 18.2 93.5 86.5 10 2.8 1.2 2.8
    1” 25.7 DN20 22.2 93.5 86.5 10 2.8 1.3 3.0
    45 3/4” 19.2 DN20 22. 128.5 116.5 10 3.0 2.2 6
    1” 25.7 DN25 28.3 128.5 116.5 10 3.4 2.5 6.5
    1.25” 32.1 DN32 34.3 128.5 116.5 10 3.5 2.6 7
    65 1.25” 32.1 DN32 34.3 165.5 149.5 10 4.0 3.0 12
    1.5” 38.4 DN40 40.3 169.5 153.5 14 4.2 3.1 15
    2” 51.1 DN50 52.3 172.5 156.5 14 4.5 3.2 16
    75 1.5” 38.4 DN40 40.3 197.5 177.5 14 6.0 4.1 18
    2” 51.1 DN50 52.3 197.5 177.5 14 6.5 4.2 22
    2.5” 63.8     201.5 181.5 14 7.0 4.4 25











































    Drawing

    DIN / 3A / SMS Rotating CIP Spray Ball Thread Connection Washing Nozzle

    DIN / 3A / SMS Rotating CIP Spray Ball Thread Connection Washing Nozzle


    Express Shipments agent: TNT, UPS, FEDEX, DHL.
    Packing: Cartons, Wooden Case
    Delivery time : About 7 days. If bigger quantity can check it again.


    FAQ



    1. What about the delivery time of the Cleaning Ball

    Answer: Normally Takes about 7-10 days



    2.How about the Surface

    Answer: Our standard Matt outside .If your have requirement in Ra,please let me know it.





    3.Can you do as specifize size and print own logo on it ?

    Answer: Yes, We support specifications cutomize and personalized customization



    4.What connection of the cleaning ball you have ?

    Answer: Clamped, Thread, Welded, Bolted..
