150℃ Hygenic Four way Stainless Steel 304 316L Sight Glass zero dead conner design with a rechargeable battery

150℃ Hygenic Four way Stainless Steel 304 316L Sight Glass zero dead conner design with a rechargeable battery

    • 150℃ Hygenic Four way  Stainless Steel 304 316L Sight Glass zero dead conner design with a rechargeable battery
    • 150℃ Hygenic Four way  Stainless Steel 304 316L Sight Glass zero dead conner design with a rechargeable battery
  • 150℃ Hygenic Four way  Stainless Steel 304 316L Sight Glass zero dead conner design with a rechargeable battery

    Product Details:

    Place of Origin: CHINA
    Brand Name: DONJOY
    Certification: CE / FDA/ ISO / 3A
    Model Number: NO.VSJ400N1

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Packaging Details: Carton, Wooden Case
    Delivery Time: 10-30 working days
    Payment Terms: T/T,L/C, Credit Card
    Supply Ability: 500pcs per month
    Contact Now
    Detailed Product Description
    Name: Non Retention Four - Way Sight Glass SIZE: DN40 - DN100
    Stanadard: DIN, 3A, SMS, ISO Connection: Welded, Clamped,Thread
    Polished: Mirror, Matt Application: For Food, Cosmetics, Pharmaceutical And Fine Chemical Industries
    Structure: Four Way Sight Glass Power: Cable Power Or Wireless Power Is Optional
    High Light:

    sanitary sight glass

    ,

    SS Sight Glass

    150℃ Hygenic Four-way Stainless Steel Sight Glass zero dead conner design with a rechargeable battery



    Quick Detail

    No retention four-way Sight Glass

    Size:DN40-DN100,1.5"-4"

    Gasket: EPDM, NBR,FPM

    Working Pressure:10Bar



    Specification

    Product Name:

    Hygenic Four way sight glass of zero dead conner design non - retention sight glass with a rechargeable battery

    Valve Body Material:

    SS304/SS316L/1.4301/1.4404

    Seal Material:

    EPDM,NBR, FPM

    Sight glass:

    tempered glass

    Max.temperature:

    -10 to 150 degree

    Battery:

    rechargeable battery(220V Battery for 18650); can use AC220V/110V power supply lighting.

    Available connection:

    Clamp, Thread, weld, DIN,SMS, IDF

    Available standard:

    DIN, SMS, 3A, ISO

    Certificate:

    3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO9001/2008

    Application scope:

    Dairy, food, beverage, pharmacy, cosmetic, etc

    Structure:

    Four-way sanitary sight glass

    Power:

    Cable power or wireless power is optional



    Application
    The no retention four-way sight-glass is comprised of stainless steel frame and glass. Through it, operator can observe the flowing of the liquid substance clearly and precisely in the fields of flood,cosmetic, pharmaceutical and fine chemicals industries


    Technical Feature
    All available size can be installed on the equipment through clamps
    No retention, zero dead angle, high light, white cold light source, waterproof, explosion-proof. Cable power supply AC 110V/220V, DC24V Wireless power supply, one charging can be used for 2-3 months(depending on the frequency of use)
    Rechargeable battery type, connection cable type with stainless steel shell, DC 24V



    Drawing

    150℃ Hygenic Four way  Stainless Steel 304 316L Sight Glass zero dead conner design with a rechargeable battery

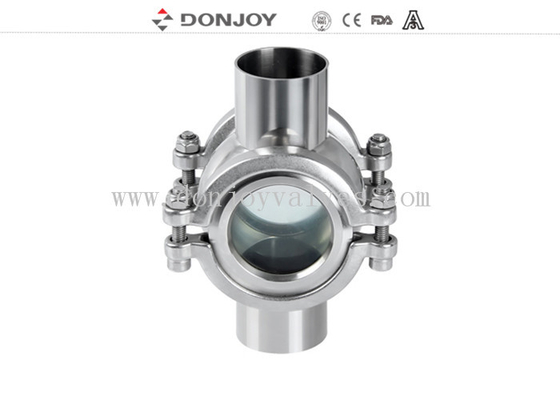

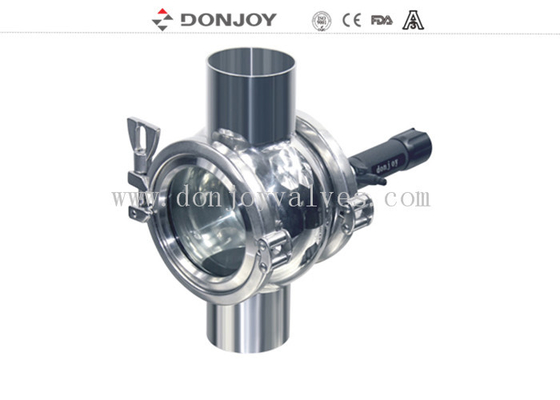

    Product display

    150℃ Hygenic Four way  Stainless Steel 304 316L Sight Glass zero dead conner design with a rechargeable battery
