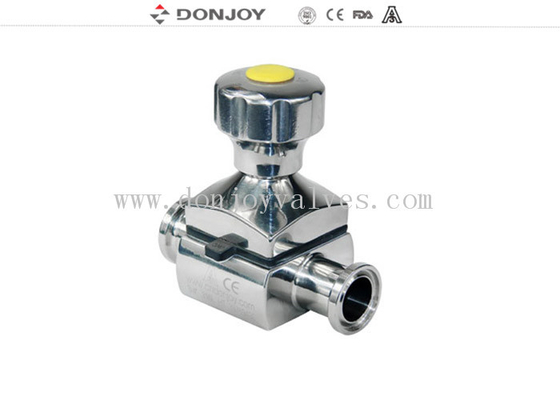

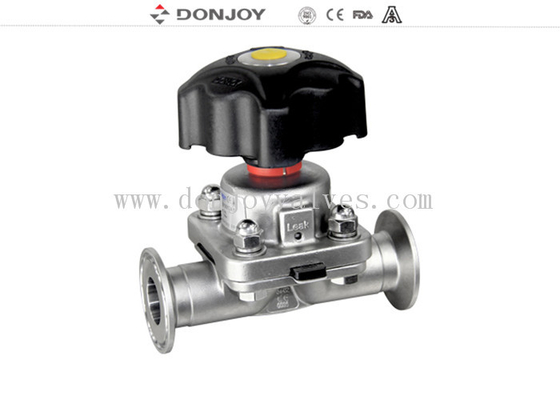

1 inch - 4 inch 316L Manual or Pneumatic Sanitary Diaphragm Valve with EPDM PTFE

1 inch - 4 inch 316L Manual or Pneumatic Sanitary Diaphragm Valve with EPDM PTFE

    • 1 inch - 4 inch 316L Manual or Pneumatic Sanitary Diaphragm Valve with EPDM PTFE
    • 1 inch - 4 inch 316L Manual or Pneumatic Sanitary Diaphragm Valve with EPDM PTFE
  • 1 inch - 4 inch 316L Manual or Pneumatic Sanitary Diaphragm Valve with EPDM PTFE

    Product Details:

    Place of Origin: China
    Brand Name: DONJOY
    Certification: CE,3A,FDA

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiation
    Packaging Details: carton box
    Payment Terms: T/T, LC, Credit Card
    Contact Now
    Detailed Product Description
    Product Name: Manual Or Pneumatic Sanitary Diaphragm Valve Materials: SS316L / 1.4404
    Size: 1 Inch - 4 Inch, DN20-DN100 Connection: Threaded ( BSP / BSPT / NPT ),clamp,weld
    Gasket: Sillcone / EPDM + PTFE / EPDM Valve Body: Forging Body , Casting Body
    Manual: SS Hand Wheel , Plastic Hand Wheel Pneumatic: SS Actuator , Plastic Actuator

    1 inch - 4 inch 316L Manual or Pneumatic Sanitary Diaphragm Valve with EPDM PTFE



    Applications

    Diaphragm valves, manually or pneumatically operated, are specifically designed for use on hygiene and aseptic processes in the pharmaceutical industries.



    The valve is excellent for flow control as well as open/close control.

    The diaphragm valves are better in feature of flow in comparison with other valves.

    It is eaiser to clean up and better to process the substance with particles.

    The phenomenon of air pocket is rare during application of flow control.



    Specifications

    Product Name:

    1 inch - 4 inch 316L Manual or Pneumatic Sanitary

    Diaphragm Valve with EPDM PTFE

    Valve Body Material:

    SS316L

    Seal Material:

    Single sillcone gasket/ Adhesive PTFE+EPDM/Two pieces

    PTFE+EPDM

    Max Working Pressure:

    10Bar

    Max.Working Temperature:

    -30 to 130 degree C(plastic handwheel )

    Available  size:

    1”-4” , DN20-DN100

    Available connection:

    Clamp / welding / thread / special connection

    Available standard:

    3A / BPE / DIN / ISO / IDF

    Operated:

    Manual,Pneumatic



    Available structure:

    Straight, tee, U-type, tank bottom

    Material of hand wheel:

    plastic and stainless steel are available

    Positioner:

    IL-TOP , IL-TOP-S positioner

    Controller:

    C-TOP controller

    Certificate:

    3A/54-02 (1580), PED/97/23/EC, FDA.177.2600

    Application scope:

    Dairy,food, beverage, pharmacy, cosmetic, etc



    Valve Body:

    Forging body blank is through a piece of stainless steel ingot, in the forging process, along with the hightemperature forging provide, through extrusion blank shape change, through the forging after bodydendity higher, the structure is more uniform, no sand hole and other impurities. Then through theprocessing center carry on the high precision machining.



    Casting body is made by the mould paraffin wax model, paraffin wax model infiltratiion in ceramic, to let thewhole body wax mold surface form a layer of strong ceramic. Melt wax modl,then into the melting of thestainless steel solution, after cooling knock off the appearance of ceramic, blank body is made up.Casting size is very accurate, the outward apperance is smmoth, clean and tidy.



    SS and Plastic Actuator





    1 inch - 4 inch 316L Manual or Pneumatic Sanitary Diaphragm Valve with EPDM PTFE



    Product drawing (hand wheel)



    1 inch - 4 inch 316L Manual or Pneumatic Sanitary Diaphragm Valve with EPDM PTFE







    Product drawing (pneumatic actuator)





    1 inch - 4 inch 316L Manual or Pneumatic Sanitary Diaphragm Valve with EPDM PTFE



    Product display



    1 inch - 4 inch 316L Manual or Pneumatic Sanitary Diaphragm Valve with EPDM PTFE
