    Product Name: U - B Tee Diaphragm Valve Materials: SS316L / 1.4404
    Size: DN25 - DN100 Operation: Plastic Hand Wheel
    Connection: Clamp Gasket: EPDM + PTFE
    Position Of Diaphragm Valve: On Upper Position Number Of Diaphragm Valve: Be Optional

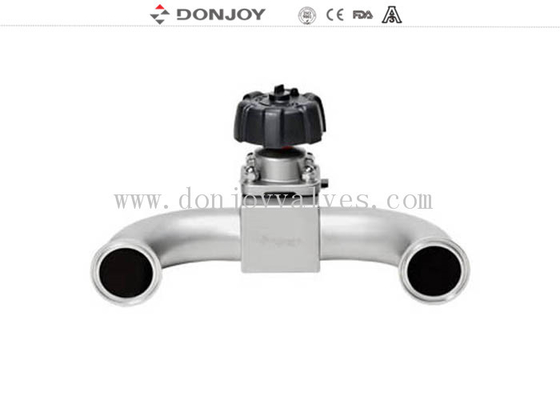

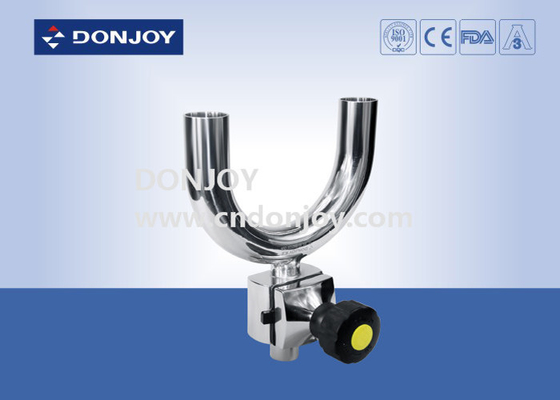

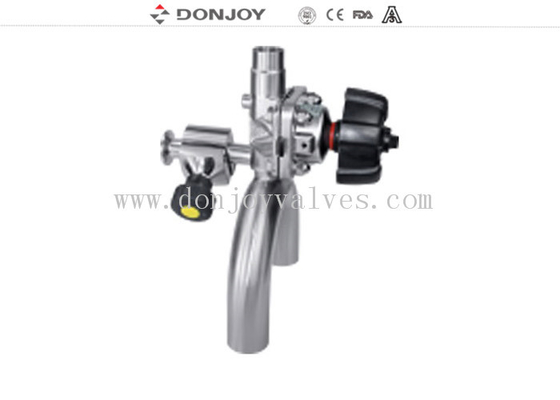

    4 Inch SS 316L Manual Multi port Sanitary Diaphragm Valve U - B Tee Type





    Descriptions

    Diaphragm valves, manually or pneumatically operated, are specifically designed for use on hygiene and aseptic processes in the pharmaceutical industries.

    The valve is excellent for flow control as well as open/close control.

    The diaphragm valves are better in feature of flow in comparison with other valves. It is eaiser to clean up and better to process the substance with particles. The phenomenon of air pocket is

    rare during application of flow control.



    Specifications

    Product Name:

    Manual Multi port Sanitary Diaphragm Valve U - B Tee Type

    Valve Body Material:

    SS316L

    Seal Material:

    Single sillcone gasket/ Adhesive PTFE+EPDM/Two pieces

    PTFE+EPDM

    MaxWorking Pressure:

    6 to 10Bar(depending on diaphragm)

    Max.WorkingTemperature:

    -30 degree c to 130 degree C (depending on diaphragm)

    Availably  size:

    1''-4'', DN25-DN100

    Availably connection:

    Clamp / welding / thread / special connection

    Availably standard:

    3A / BPE / DIN / ISO / IDF

    Operated:

    Manual,Pneumatic

    Availably structure:

    Straight, tee, U-type, tank bottom

    Control:

    Smart valve positioner / C-TOP control / position sensor

    Certificate:

    3A/54-02 (1580), PED/97/23/EC, FDA.177.2600

    Application scope:

    Dairy,food, beverage, pharmacy, cosmetic, etc

    Direction of valve:

    Be upward

    Number of port:

    Multi-port direction



    Valve Body:

    Forging body blank is through a piece of stainless steel ingot, in the forging process, alongwith the high temperature forging provide, through extrusion blank shape change, through the forging after bodydendity higher, the structure is more uniform, no sand hole and other impurities. Then through theprocessing center carry on the high precision machining.

    Casting body is made by the mould paraffin wax model, paraffin wax model infiltratiion in ceramic, to letthe whole body wax mold surface form a layer of strong ceramic. Melt wax modl,then into the melting ofthe stainless steel solution, after cooling knock off the appearance of ceramic, blank body is made up.Casting size is very accurate, the outward apperance is smmoth, clean and tidy.



    Pneumatic Operation

    1. Didaphragm valve with Positioner/Process Controller(IL-TOP)

    2. Diaphragm valve with Control Unit(C-Top)
    3. Valve position Regulator
    4. Position Sensor Module
    5. Stainless steel actuator
    6. Plastic Actuator


    Electric Operation

    7. Electric Diaphragm valve


    Manual Operation

    8. Plastic Handle

    9. Stainless steel handle

    Valve Body Material
    10. Body: Casting / Forging

    Product drawings

    4 Inch SS 316L Manual Multi port Sanitary Diaphragm Valve U - B Tee Type

    Product display
    4 Inch SS 316L Manual Multi port Sanitary Diaphragm Valve U - B Tee Type
