Product Details:
Payment & Shipping Terms:
|
| Item: | Pneumatic Regulating Globe Valve | Valve Type: | Globe Valve |
|---|---|---|---|
| Function: | Regulating By IL - Positioner | Positioner: | Intelligent Positioner |
| Feature: | Intelligent Positioning | Structure: | With IL - TOP |
| Operation: | Manual Or Pneumatic | ||
| Highlight: | ball valve diaphragm,pressure reducing valve |
||
Stainless steel globe valve with pneumatic actuator and intelligent valve positioner for regulating
Brief
Size:1/2"-4", DN10-DN100
Materials: Stainless steel, AISI 304/1.4301, AISI16L/1.4404
Standard: DIN, SMS, 3A, ISO, RJT etc.
Connection: Welding, Clamp, Thread, Flange etc.
Flow pattern: Direct way
Operating type: Manual, Pneumatic, Control Head, Positioner etc.
Specification
|
Product Name: |
Stainless steel globe valve with pneumatic actuator and intelligent valve positioner |
|
Valve Body Material: |
SS304 or SS316L |
|
Working Pressure: |
10Bar |
|
Working temperature: |
- 30 ℃ - 150 ℃ (180℃ optional) |
|
Available size: |
DN10-DN100 or 1/2" - 4" |
|
Connection: |
Weld, Clamp, Thread, Flange etc. |
|
Operated: |
Manual, Pneumatic, Electric, Control head |
|
Controller: |
IL-TOP / C-TOP / FKQ-TOP etc. |
|
Signal indicator box: |
Optional |
|
Structure: |
With IL - TOP |
|
Model number: |
VJZ223Q2 |
|
IL - TOP: |
Intelligent valve positioner |
|
Delivery: |
According to actual order |
|
Feature: |
Intelligent positioning |
Feature
With intelligent valve position / IL - TOP
With pneumatic actuator
Design
Intelligent positioning
Optional
C -TOP / IL - TOP / electric controller
Delivery
According to your actual order.
Specification in DIN
![]()

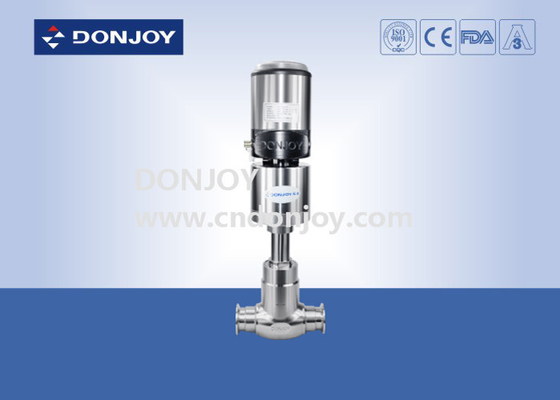

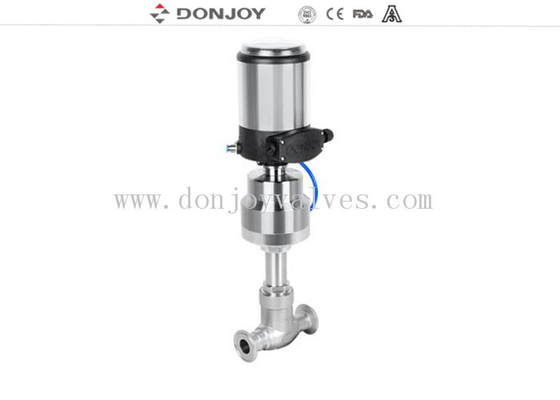

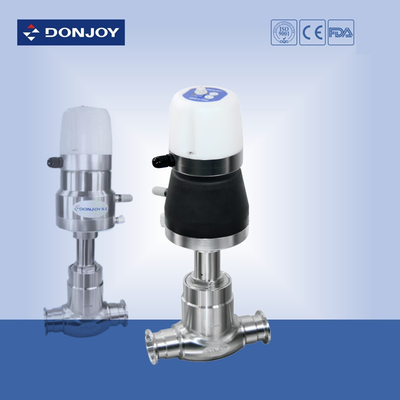

Product display
![]()
![]()
![]()
FAQ
1,How can we get sample?
We could provide sample to you,but there will have sample cost.About sample ,pls freely contact or email me.
2,Our business payment terms ?
We will accept: T/T,L/C,Alipay.
3,Our standard export packing ?
For small order: carton box and weaving bag.
Large order: Wooden box
4,Shipment way choose ?
Small orders will be choose by express,by airline.
Large orders will be choose by sea.
It will according to customer’s request.
5. What is your MOQ?
A: 1 PCS.
6. What is the delivery time?
A: It is about 5-7 days after we receive the payment for small order.
For large order,it takes 20-30 working days after receiving down payment.
It depends on customer order,
7. Do you have products in stock?
Yes, some stock can be shipped out within 3 days.
8. Do you test all your goods before delivery?
A: Yes, all products are fully inspected before delivery.
9. What is the warranty?
A: Our warranty is one year. After you receive the goods, if you find defect products, just take pics or videos to send us. We will re-make it for re-fund them to customers once we confirm it is our responsibility.
Tag: Regulating valves, Control valve, Intelligent valves
