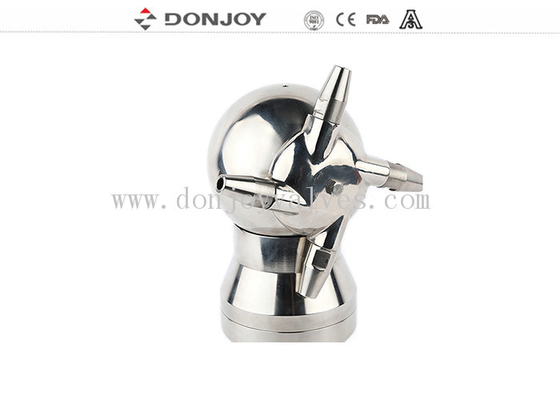

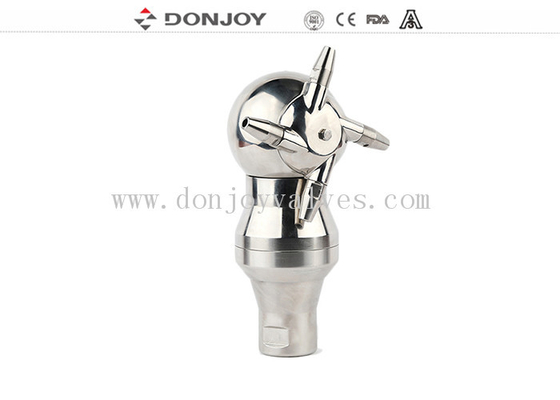

Rotary Tank Spray Cleaning Ball,1 Inch 316 Stainless Steel 360° Fixed Tank Cleaning Ball for CIP Tank Cleaning
Quick Detail
Cleaning Ball
Nozzle Size:4mm,5mm, 6mm,7mm,8mm
Connection: 1",1.5",2" BSP or NPT Thread,Clamp
Materials : 1.4404 ( SS316L)
Specification
|
Product Name: |
Fixed tank cleaning ball for CIP tank cleaning |
|
Material: |
SUS316L;PTFE |
|
Flow: |
4-45m³/h |
|
Inlet Pressure: |
4-10 bar |
|
Suggest Pressure: |
6 bar |
|
Available size: |
1.5"-DN40 |
|
Connection way: |
thread BSP, clamp |
|
Max temperature: |
95°C |
|
Max environment temperature: |
140°C |
|
Application Scope: |
Widely used in food and dairy products, Pharmaceutical, Chemical treatment, Transport equipment, Beverage |
|
Typical application: |
process containers and reactor; tank; transport irrigation equipment; fermentation; yeast breeding |
|
Advantages: |
Self-cleaning; low liquid consumption; heath design |
|
Typical cleaning methods: |
fixed installation CIP system |
|
Packaging Details: |
Bubble pack for each. Outside packing are carton or plywood cases. Or as per the request of customers. |
|
Delivery details: |
Usually within 20 days after receiving T/T down payment. |
Drawing
Performance Curve
Advantage
1.Self-cleaning
2.The water consumption is very low
3.Sanitary design
Feature
Small size and easy to install. Self-cleaning and self-lubrication design, when working, it also cleans and lubricates the rotating nozzle itself, which guarantees longer service life. Stainless material, fully meet the requirements of sanitary level. The maximum cleaning diameter is 5 meters to 15 meters, 360 ° spray coverage without dead Angle. Made of 316L stainless steel, both internal and external surfaces are polished. The work pressure only needs 4-10 kg, which can be achieved very well CIP cleaning effect. The water consumption is very low, which greatly reduces the cleaning cost.
Application: used for cleaning of small and medium sized tanks in pharmaceutical, food and beverage, chemical industry, etc., and cleaning the tank, tank, reaction kettle, mechanical equipment tank, etc.
Typical Application
1.Fixed installation CIP System
2.Process Containers
3.Store tank
4.Transport tank equipment
5.Fermentation
6.Yeast Breeding
Operating Principle
1. Rotary injector is Hygenic tank cleaner, with 360degree coverage in a given tank or process container, the rotary jet head is driven by flow liquid through impeller in the pressure and flow increase will increase the length of the jet and the impact to the tank or vessel surface
2. Rotary injector with unique self-cleaning function, internal is completely cleaning.
Common application:
