Pneumatic Ball Valve , Regulating Valve With Controller / Signal Indicator

Pneumatic Ball Valve , Regulating Valve With Controller / Signal Indicator

    • Pneumatic Ball Valve , Regulating Valve With Controller / Signal Indicator
    • Pneumatic Ball Valve , Regulating Valve With Controller / Signal Indicator
  • Pneumatic Ball Valve , Regulating Valve With Controller / Signal Indicator

    Product Details:

    Place of Origin: CHINA
    Brand Name: DONJOY
    Certification: CE,3A,FDA

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Packaging Details: carton box
    Delivery Time: according to your order
    Payment Terms: T/T, LC, Credit Card
    Supply Ability: 100pcs per day
    Contact Now
    Detailed Product Description
    Feature: Signal Indicator (optional) Operation: By Pneumatic Power
    Item: Pneumatic Ball Valve With Controller Size: 1/2" - 4"
    Temperature: -30℃ - 150 ℃ (180℃ Optional) Function: For Regulating Valve
    Design: Ultra-low Torque

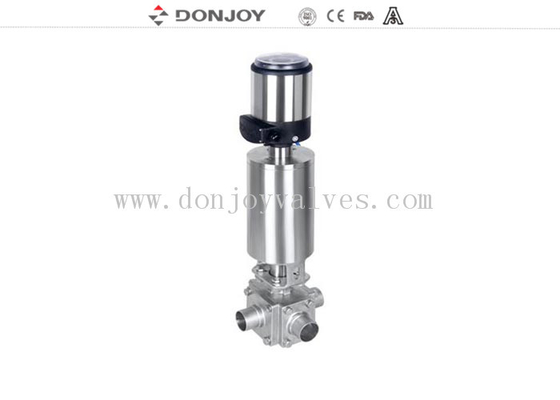

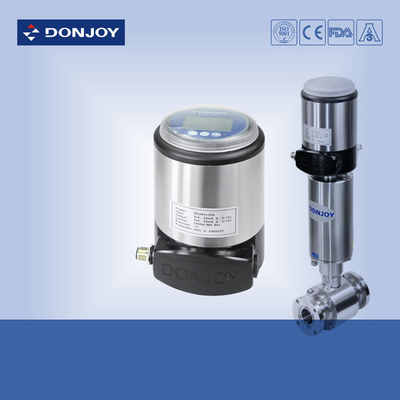

    Stainless steel pneumatic ball valve for regulating valve with controller / signal indicator


    Quick Detail
    Size:1/2"-4", DN10-DN100
    Structure: Ball type
    Materials: Stainless steel, AISI 304/1.4301, AISI16L/1.4404
    Standard: DIN, SMS, 3A, ISO, RJT etc.
    Connection: Welding, Clamp, Thread, Flange etc.
    Flow pattern: Directly
    Seat material: PTFE
    Operating type: Manual, Pnumatic, Control Head, Postioner...



    Specification

    Product Name:

    Stainless steel Pnuematic direct ball valve with Clamped Connection

    Valve Body Material:

    SS304 or SS316L

    Seal Material:

    PTFE

    Working Pressure:

    10Bar

    Temperature:

    - 30 ℃ - 150 ℃ (180℃ optional)

    Availably size:

    DN10-DN100 or 1/2" - 4"

    Availably connection:

    Weld,Clamp,Thread, Flange

    Ball Type:

    Directly

    Operated:

    Manual,Pneumatic,Electric,control Head

    Controller:

    IL-TOP / C-TOP / FKQ-TOP etc.

    Signal indicator box:

    Optional



    Design
    1. Free of Maintenances
    2. compact and portable
    3. small operating torque
    4. gasket complies with PTFE FDA 177.2600
    5. Hand lever can be installed on the side of the valve body, no matter of the flow direction.
    6. It can be installed with pneumatic and electrick acuators.
    7. With cleaning and drainage port


    Feature
    Controller: IL-TOP / C-TOP / FKQ-TOP etc.
    Signal indicator box: Optional


    Display

    Pneumatic Ball Valve , Regulating Valve With Controller / Signal Indicator
