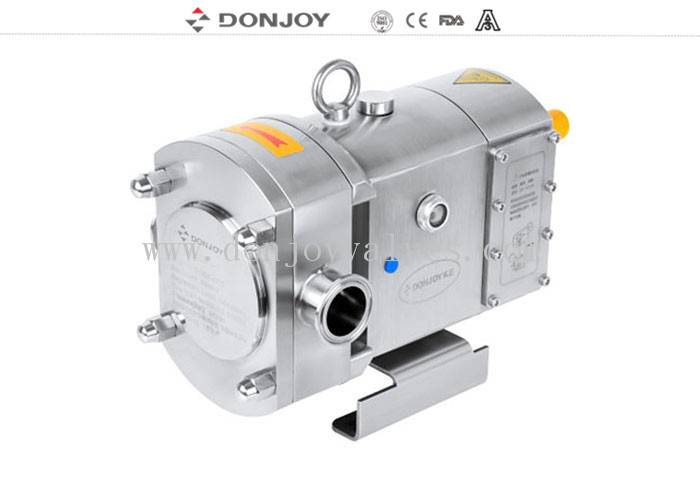

Movable Stainless Steel Pumps 2.5" Clamped Connection For Flow Regulating

Movable Stainless Steel Pumps 2.5" Clamped Connection For Flow Regulating

Movable Stainless Steel Pumps 2.5" Clamped Connection For Flow Regulating

Product Details:

Place of Origin: CHINA
Brand Name: DONJOY
Certification: CE,3A,FDA
Model Number: STUL-100

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Wooden box
Delivery Time: 10-30 working days
Payment Terms: T/T, LC, Credit Card
Supply Ability: 20 sets 30 working days
Contact Now
Detailed Product Description
Materials: SS316L / 1.4404 Model: STUL - 100
Motor: Mechanical ABB Motor Connection: 2.5" Clamped Connection
Power: 380v / 50HZ Flow Rate: 6.5-13T/h
Feature: External Installed With Safety Valve Item Name: Mechanical Variable Lobe Pump
Operation: Electric Power
High Light:

self priming pump

,

lobe rotary pump

SS316L STUL - 100 High Purity Pumps 2.5" Clamped connection for flow regulating

Description
Options
1. Mechanical seal: SIC / SICE / EPDM, TC / TC, EPDM
2. Single seal, Double Mechanical Seal

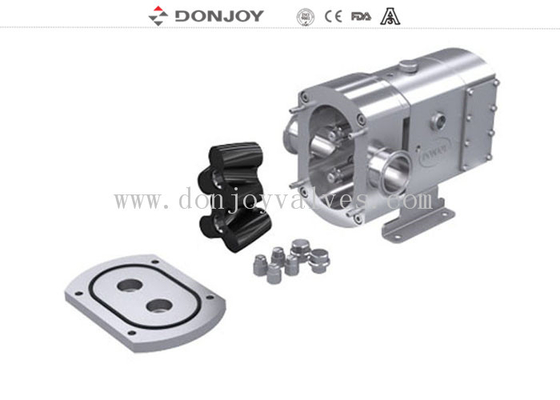

3. Rotors: 2 leave rotor, 3 leave rotors, Butterfly rotors, Single Butterfly rotors
4. Gasket: FPM(Viton),NBR, EPDM
5. Relief valve at front cover r external by –pass
6. Built-in safety valve
7. End-face heat jacket
8. Complete heat jacket
9. Vertical TUR Series or Horizontal TUL Series
10. Different Drives and Fixes
11. Assembly on a stainless steel baseplate
12. Connection: Clamp(DIN32676,3A,ISO), Threaad(DIN,SMS,RJT,IDF), Butt weld, Flange
13. Motor Type B5 motor frequency 50HZ,60HZ
14. Voltage(v)220-240,360-400,420-460,630-690

Techinical features
A . Maual Continuously Variable Transmission
B. Frequency Cnverter adjust motor gear box
C. Fixed speed output transmission

Specifications

Product Name:

SS316L TUL-100 Mechanical variable Lobe pump

Material:

SS304 / SS316L / 1.4301 / 1.4404

Seal Material:

SIC / SIC / EPDM (Standard, FDA approval)

Max. Flow:

62m3/h / 395 GPM

Max.pressure:

12bar / 174PSI

Max. working temperature:

150 C / 302 F

Max. rev:

1450 rmp

Rotor Type:

2-leaves, 3-leaves, butterfly, signal butterfly

Mechanical seal:

SIC / SiC / EPDM(Standard)

Motor power:

1.5kw, 2.2kw, 3kw….11kw

Feature

Movable

Voltage:

110V, 220V, 380V

Motor:

ABB,SEW, 50hz / 60hz

Surface treatment:

Inner polished and Sandblast outside

Available connection:

Clamp, Thread Butt weld, Flange

Available standard:

DIN, SMS, 3A, RJT, ISO / IDF

Application scope:

Dairy, food, beverage, pharmacy, cosmetic, etc

Delivery details:Normally within 20 days after receiving T/T down payment.


Design and Features
1. Horizontal TUL,Vetrical TUR
2. Bare-Shaft Consturction
3. Hygienic Design of the attachement of the rotors
4. Sanitary Mechanical Seal, Easy cleaning and maintenace
5. Applied to CIP Cleaning and sic Sterlization


Applications
This pump is deal for the transfer of viscous as well as low-wiscous media in the food processing, cosmetics and pharmaceutical Industries.


Principles
1. As the lobes rotates, the space on the suciton side increasese as one lobe is distanced from another, thus creating a partial vacuum which draws the fluid in to the pump chamber.
2. As they are rotated by the shafts,each lobe is consecutively filled and the fluid is displaced to the delivery side.The small gaps between the robes and between the lobes and the walls of the pump body ensure that the spaces are duly filled.
3. The pump housing is ompletely filled and the fluid escapes through the teeth of the lobes and is forced against the walls of the spaces. Which contributes to the pump aciton


Model Selection Table
Movable Stainless Steel Pumps 2.5" Clamped Connection For Flow Regulating 0
Competitive Advantage
“DONJOY is the only company that pass nine series of products by American 3A certification organization in Asian sanitary pumps and valves field.”
