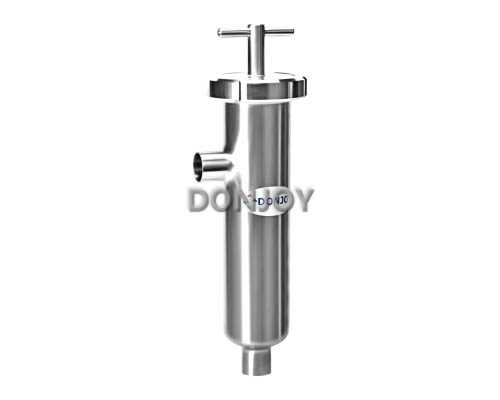

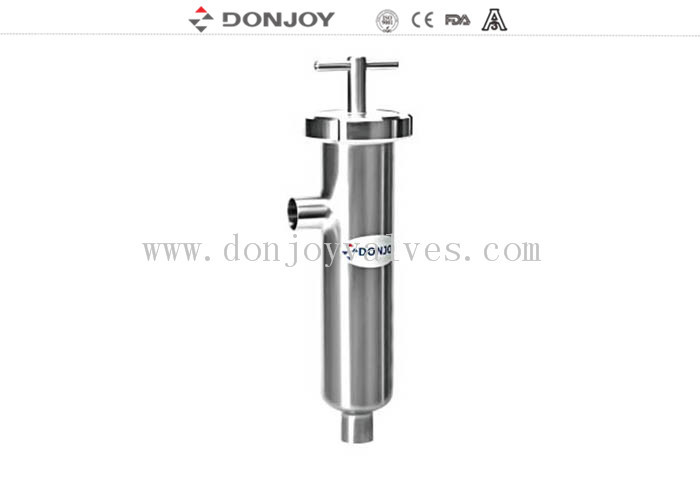

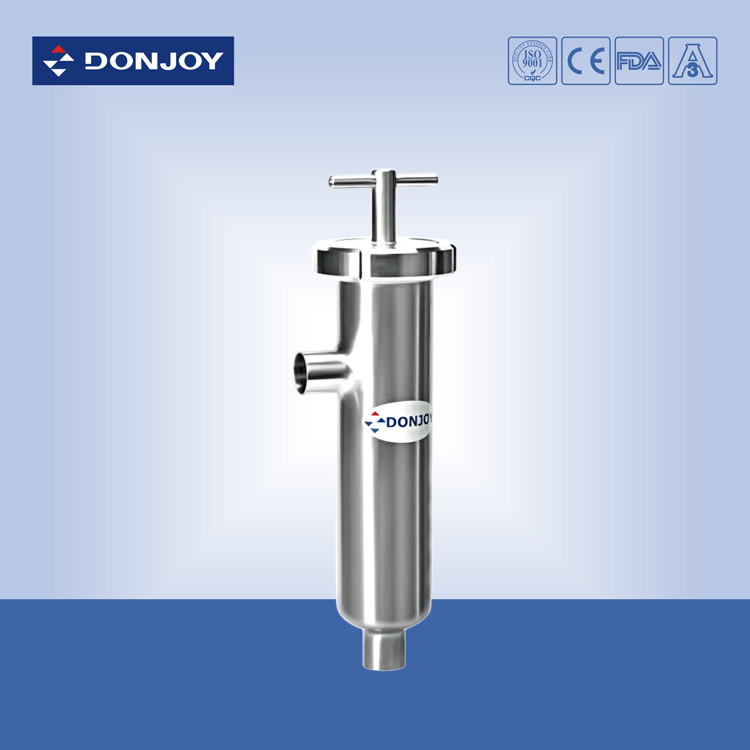

Sanitary AISI 316L Stainless Steel Juice Pipeline Filter With EPDM Gasket

Sanitary AISI 316L Stainless Steel Juice Pipeline Filter With EPDM Gasket

    • Sanitary  AISI 316L Stainless Steel Juice Pipeline Filter With EPDM Gasket
    • Sanitary  AISI 316L Stainless Steel Juice Pipeline Filter With EPDM Gasket
    • Sanitary  AISI 316L Stainless Steel Juice Pipeline Filter With EPDM Gasket
  • Sanitary  AISI 316L Stainless Steel Juice Pipeline Filter With EPDM Gasket

    Product Details:

    Place of Origin: CHINA
    Brand Name: DONJOY
    Certification: CE/FDA/ISO/3A
    Model Number: NO.EGL210

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiation
    Packaging Details: Carton, Wooden Case
    Payment Terms: T/T,L/C, Credit Card
    Contact Now
    Detailed Product Description
    Brand: DONJOY SIZE: 1"-4"
    Stanadard: DIN,3A,SMS,ISO Gasket: EPDM
    Polished: Mirror Fiter Function:: Water
    High Light:

    pipe filters

    ,

    sanitary strainers stainless steel

    Sanitary AISI 316L Stainless Steel Juice Pipeline Filter With EPDM Gasket



    Quick Detail



    Sanitary filter/Strainer, Food grade Filter, Juice Filter

    1. Materials: SUS304/SUS316L, 1.4301/1.4404, AISI304/AISI316L

    2. Size:1"-4"

    3. Screen:30-300meshes

    4. Screen Hole:0.5mm-2mm

    5. Surface: Inside RA≤0.8um,Outside: Mirror Polished

    6. Working tempressure: -10℃ to 120 ℃(EPDM), +140℃ (SIP,30 Minites)

                                         14℉ to 248℉

    7. Max pressure: 10Bar,145PIS

    8. Connection: Clamped, Welded, Thread

    9.Standard: DIN,3A, RJT,SMS,ISO,IDF

    10. Gasket: EPDM ( FDA 177.2600)



    Specification

    Product Name:

    AISI316L Sanitary Stainless steel juice pipeline angle filter 1inch to 4 inch

    Material:

    AISI304, AISI316L

    Size:

    1-4"

    Finish:

    Ra ≤0.8um,Mirror, 320Grit, 180Grit, 240Grit

    Connection:

    Welded, Threaded, Clamped

    Standard:

    DIN,3A,SMS,ISO

    Certificate:

    CE, ISO9001/2008, 3A

    Application scope:

    Dairy, food, beer, beverage, pharmacy, cosmetic,Oil,Waste water etc

    Packaging Details:

    Shrink wrapped - carton - pallet . Or as per the request of customers



    Operating Principles:

    The Filter consists of inlet and outlet housing, inner screen mesh to filter the particulates and impurities which can't pass the mesh


    Feature:

    Sanitary Filters provide reliable means of removing fine particles from liquids; filtering media must be removed and disposed periodically. Strainers, on the other hand, actually are coarse filters that remove larger particles; the straining mesh can be reused after cleaning. An inline sanitary filter that filters down to 0.023 micron with a 99.99% efficiency. Use it anywhere you need to keep something sanitary.



    Advantage:

    hygiene level filter sleeve unique structure, make each sleeve no dead Angle, both internal and external surface can be completely unpick and wash, easy to operate.



    Packing details:
    Each with wrap then put in caton. If shipped by sea will packed in the wooden case

    Shipping details:

    Uaually within 7 days after receiving T/T down payment



    Term of conditions: EXW PRICE, FOB, CIF....



    After-sale Service

    Please contact our After-sales service department in time within 30days after you received the cargo.
    Time: 8:00 a.m.- 5:30 p.m. (Beijing time)
    Process

    Please provide the copy of Sales Contract and describe the problems



    appeared.

    Problems confrimation:
    Slight problem: Please send the proof to our After-Sales Department, we will reply within two days.
    Serious problem:
    a We will dispatch our Quality and Problems Appraisers to make a confirmation.
    b Have a negotiation of the compensation and sign agreements
    c Our After-Sales Department will perform the duties as the agreements



    Sanitary  AISI 316L Stainless Steel Juice Pipeline Filter With EPDM Gasket 0

    Metal Mesh



    Mesh B(MM) Useful Surface(%)
    30 0.55 48
    40 0.4 46
    60 0.3 52.6
    80 0.2 42
    100 0.15 36.2
    165 0.1 45.4



    Perforate Plate



    A(MM) Useful Surface(%)
    0.5 15
    1 28
    1.5 33
    2 30
    3 33
    5 46

    Sanitary  AISI 316L Stainless Steel Juice Pipeline Filter With EPDM Gasket 1



    If you still have any problems,Please do not hesitate to contact us.
