ANSI 304 SS Clamp Y Type Strainer , DN40 Sanitary Y Strainer Stainless Steel

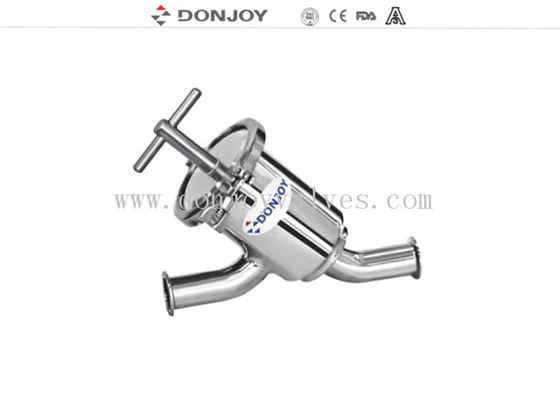

Large Image : ANSI 304 SS Clamp Y Type Strainer , DN40 Sanitary Y Strainer Stainless Steel

Product Details:

Place of Origin:	CHINA
Brand Name:	DONJOY
Certification:	CE/FDA/ISO/3A
Model Number:	NO.EGL310

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Packaging Details:	Carton, Wooden Case
Payment Terms:	T/T,L/C, Credit Card

Contact Now

Detailed Product Description

Brand:	DONJOY	SIZE:	DN25-100
Stracture:	Y Type	Connection:	Clamped, Thread, Welded
Polished:	Mirror, Matt	Screen:	30Mesh-300Mesh
Highlight:	pipe filters , sanitary strainers stainless steel

ANSI 304 SS Clamp Y Type Strainer , DN40 Sanitary Y Strainer Stainless Steel

Quick Detail

Sanitary filter/Strainer

Materials: SUS304/SUS316L, 1.4301/1.4404

Size:DN25-DN100

Type: Y type, Angle Type,Inline, Sraight

Connection: Clamped, Welded, Thread

Standard: DIN,3A, RJT,SMS,ISO,IDF

Gasket: Silicone, FPM, NBR

Working tempressure: -10℃ to 120 ℃(EPDM), +140℃ (SIP,30 Minites)

14℉ to 248℉

Max pressure: 10Bar,145PIS

Screen:30-300meshes

Screen Hole:0.5mm-2mm

Surface: Inside RA≤0.8um,Outside: Mirror Polished

Specification

Product Name:	DN40 Sanitary Stainless Steel Y Type Filter, ANSI304 Clamp Y Type Strainer
Material:	AISI304, AISI316L
Size:	DN25-DN100
Finish:	Ra ≤0.8um,Mirror, 320Grit, 180Grit, 240Grit
Connection:	Welded, Threaded, Clamped
Standard:	DIN,3A,SMS,ISO
Certificate:	CE, ISO9001/2008, 3A
Application scope:	Dairy, food, beer, beverage, pharmacy, cosmetic,Oil,Waste water etc
Packaging Details:	Shrink wrapped - carton - pallet . Or as per the request of customers

Working Principles:

The Filter consists of inlet and outlet housing, inner screen mesh to filter the particulates and impurities which can't pass the mesh

Application:

Filter are widely used in the auxiliary service for food processing, cosmetic, chemicals and pharmacy industries. Due to its hygienic design. It is mainly used to filter the particulates that destroy pump and some other equipments.

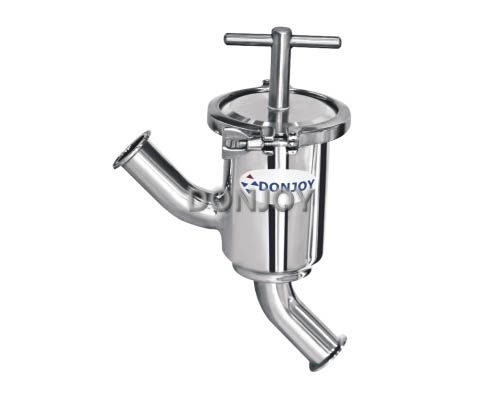

ANSI 304 SS Clamp Y Type Strainer , DN40 Sanitary Y Strainer Stainless Steel 0

Metal Mesh

Mesh	B(MM)	Useful Surface(%)
30	0.55	48
40	0.4	46
60	0.3	52.6
80	0.2	42
100	0.15	36.2
165	0.1	45.4

Perforate Plate

A(MM)	Useful Surface(%)
0.5	15
1	28
1.5	33
2	30
3	33
5	46

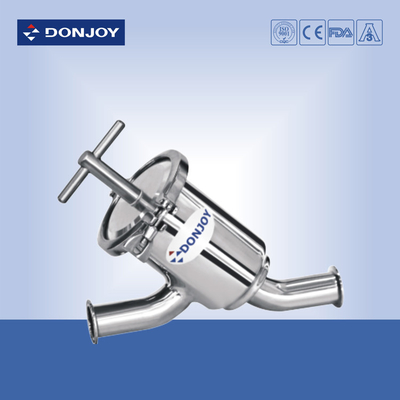

ANSI 304 SS Clamp Y Type Strainer , DN40 Sanitary Y Strainer Stainless Steel 1

If you need more information,Please do not hesitate to contact us.
