| Place of Origin: | China |
| Brand Name: | DONJOY |
| Certification: | CE,3A,FDA |
| Model Number: | NO. |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Payment Terms: | T/T, LC, Credit Card |
| Product Name: | Multi - Position Stainless Steel Handle Clamped Buttterfly Valve | Materials: | 304 / 316L |
|---|---|---|---|
| Size: | 1/2 Inch - 12 Inch/DN10-DN300 | Operation Mode: | Manual |
| Connection: | Clamped | Structure: | With Multi - Position Stainless Steel Handle |
| Level: | Sanitary Level | ||
| High Light: | stainless butterfly valves,pneumatic butterfly valve |
||

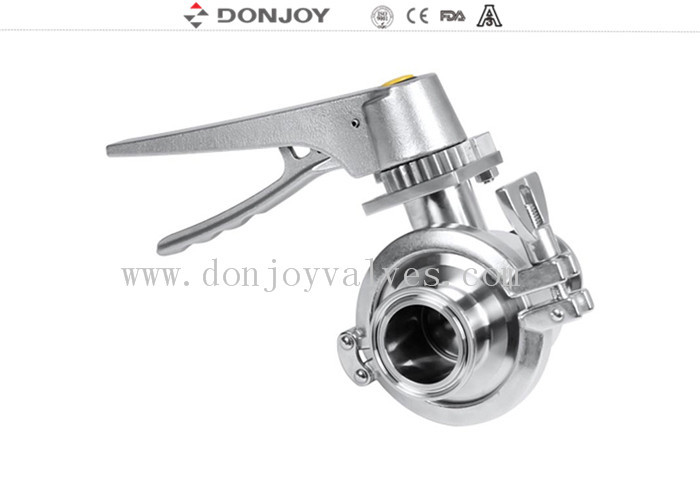

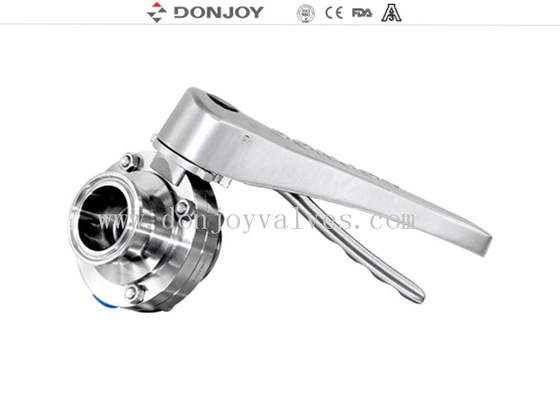

Multi - position manual clamped sanitary butterfly valves with stainless steel handle
Specifications
|
Product Name: |
Multi - position manual clamped sanitary level butterfly valve with stainless steel handle |
|
Valve Body Material: |
SS304/316L |
|
Seal Material: |
EPDM (standard) FPM/SILICON/NBR, FDA177.2600 |
|
Max Working Pressure: |
5Bar |
|
Max.Working Temperature: |
120 degree C |
|
Available size: |
1''-6'', DN25-DN150 |
|
Available connection: |
Clamp/welding/thread/special connection |
|
Available standard: |
3A/DIN/SMS/RJT/ISO/IDF |
|
Operated: |
Manual, Pneumatic, Electric |
|
Handle application: |
Two-position handle, three-position handle, four-position pull handle, multi-position plastic handle and multi-position stainless steel handle |
|
Control: |
Smart valve positioner / C-TOP control / position sensor |
|
Certificate: |
3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO |
|
Application scope: |
Dairy,food, beverage, pharmacy, cosmetic, etc |
|
Installation: |
Could be installed on various valves |
|
Multi-position handle: |
Of different level which could be chosen according to your requirement |
Drawing
Handle selection
Two-position handle;
three-position handle;
four-position pull handle;
multi-position plastic handle;
multi-position stainless steel handle;
Connection
Clamped, welded and threaded etc.
Packaging Details
Bubble pack for each valve.
Outside packing is carton or plywood cases.
Or as per the request of customers.
Delivery details
Usually within 20 days after receiving T/T down payment.
