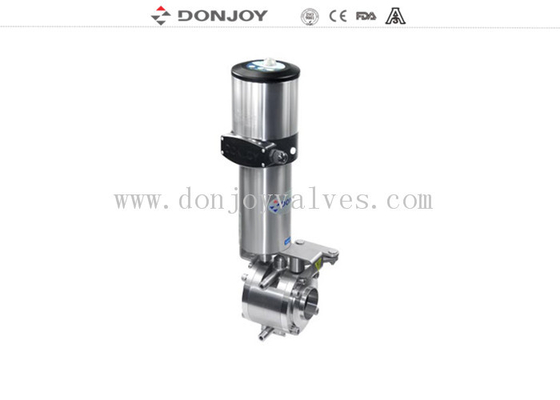

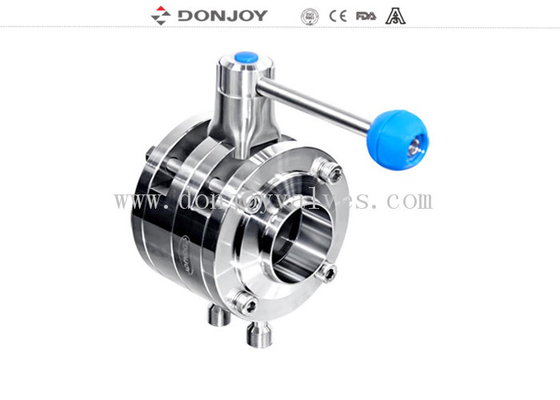

Donjoy Sanitary MixProof Butterfly Valve Double Seat Butterfly Valve B Type

Donjoy Sanitary MixProof Butterfly Valve Double Seat Butterfly Valve B Type

Donjoy Sanitary Butterfly Valves

316L Double Seat Butterfly Valves

DN50 Sanitary Butterfly Valves

Place of Origin:

China

Brand Name:

DONJOY

Certification:

CE,3A,FDA

Model Number:

NO.VDF4010Q1

Contact Us

Request A Quote
Product Details
Product Name:
Sanitary Butterfly Valve
Materials:
304/316L
Size:
DN50-DN100,2"-4"
Operation:
Manual Pull Handle
Max Pressure:
10Bar
Gasket:
EPDM, SILICONE,VITION
Payment & Shipping Terms
Minimum Order Quantity
1
Price
negotiation
Packaging Details
carton box or wooden box
Delivery Time
5-30 working days
Payment Terms
T/T, LC, Credit Card
Supply Ability
1000pcs per month
Product Description

Donjoy Sanitary MixProof Butterfly Valve/ Double seat butterfly valve B type
Details
Gasket: NBR, MVQ, FPM, EPDM
Connection: SMS, RJT, DIN,3A,ISO, Triclamp , thread, Flange, Welding
Operation: Manual, Pneumatic actuator, Contorl head, Position Sensor
Specifications

Product Name:

Donjoy Sanitary Mixing Proof Butterfly Valve/ Double seat butterfly valve B type

Valve Body Material:

SS316L

Seal Material:

EPDM (standard) FPM/SILICON/NBR, FDA177.2600

Max Working Pressure:

10Bar

Max.Working Temperature:

120 degree C

Available  size:

DN50-DN100,2"-4"

Available connection:

Clamp/welding/thread/special connection

Available standard:

3A/DIN/SMS/RJT/ISO/IDF

Operated:

Manual,Pneumatic, Electric

Handle application:

Two-position handle / three-position handle / four-position pull handle / multi-position plastic handle / multi-position stainless steel handle

Control:

Smart valve positioner / C-TOP control / position sensor

Certificate:

3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO

Application scope:

Dairy,food, beverage, pharm

Grade of handle:

3 - grade



Application:

The mixproof butterfly valve as a process element for the separation of media is suitable for a variety of applications

In CIP systems, for separating CIP media

  • In flush-out processes
  • In water management
  • As pipe section shut-off valve for separating media
  • In CIP/gas management (breweries)
  • At storage tanks for separating product/CIP
  • As CIP return valve in a valve matrix
  • Preferably suitable for liquid and gaseous media withoutsuspended matter/particles

Drawing of valve
Donjoy Sanitary MixProof Butterfly Valve Double Seat Butterfly Valve B Type 0
Packaging Details
Bubble pack for each valve.
Outside packing is carton or plywood cases.
Or as per the request of customers.

Delivery details
Usually within 20 days after receiving T/T down payment.
