High Performance SS316L Globe Valve With Clamped / Automatic Control System

High Performance SS316L Globe Valve With Clamped / Automatic Control System

angle body valve

slanted seat valve

Place of Origin:

CHINA

Brand Name:

DONJOY

Certification:

CE,3A,FDA

Model Number:

NO.VJZ200S1

Contact Us

Request A Quote
Product Details
Product Name:
Globe Valve
Size Of Panel:
DN10-DN80,1/2"-3"
Operation:
Manual
Material:
304/316L
Connection:
Clamped
Range Of Application:
Printing,dyeing,bleaching.etc
Brand:
Donjoy
Payment & Shipping Terms
Minimum Order Quantity
1
Price
negotiation
Packaging Details
carton box
Payment Terms
T/T, LC, Credit Card
Product Description

High Performance SS316L Globe Valve With Clamped / Automatic Control System



specifications:

Product Name: SS316LStainless steel handle globe Valve, Control Valve With Clamped, automatica control system
Valve Body Material: CF8M/316L,CF8/304
Seal Material: EPDM
Working Pressure: 8 Bar, 10Bar(option).
Max. Working Temperature: 120 degree ,180Degree(Option)
Availably size: DN10-DN80,1/2"-3"
Availably connection: Thread,Weld,Clamp,BSP/BSP/NPT
Operate: Manual
Certificate: FDA,CE,ISO



Description

A new generation of high purity design of the angle seat valve

1. No dead angle, no retention to meet the requirements of all kinds of health.

2. Advantages: The spool without bolt, without considering the risk of damaging other equipment because of bolt dropping;

3. Temperature: maximum temperature up to 200 (depending on the seal type)

4. Seal: elastic shaft seal design, embedded spool design.

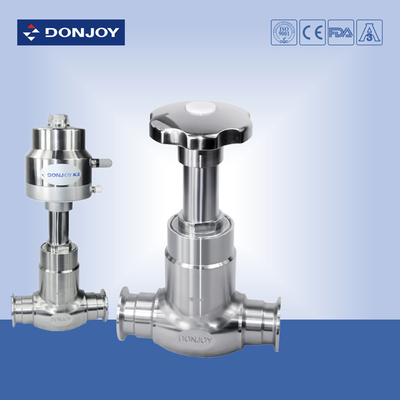

Operation Options for Globe Valve

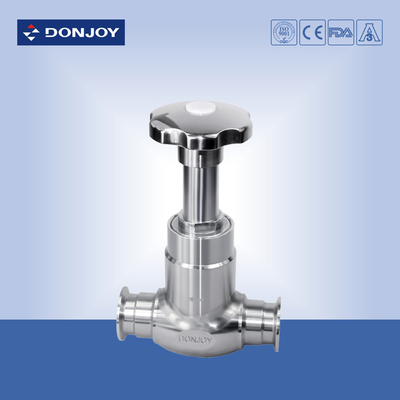

1. Manual: Plastic handwheel, Stainless steel Wheel,Fine-turning hand wheel

2. Pnuematice: Plastic and stainless steel actuators

3. Control Head: Valve Positioner, Process controller, C-Top, Mini C-Top,Position Sensor



Applications:

Globe valve is a general switch in the automactic control system is widely used in printing, dyeing,bleaching, food,washing, chemical, water treatment,pharmacy and other automated machinery and equipment. It is featured with water hammer protection. Noise-free, reliable sealing performance.



Operationg Principles

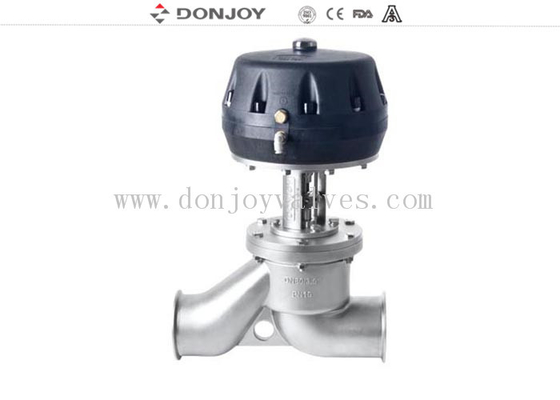

1. Globe valve are operated automatically by a single-acting or a double-acting pneumatic acutor. By supplyiing compressed air, the shaft is moved to place the valve in the “open” or “closed” position.

2. The 180degree rotation of the pneumatic cylinder to realize the interchange of normally open and normally closed.

High Performance SS316L Globe  Valve With Clamped / Automatic Control System 0



High Performance SS316L Globe  Valve With Clamped / Automatic Control System 1

Tag : Globe valves, Sanitary globe valve, Donjoy valves.
