Single acting Normal Open Sanitary level 3 inch powder butterfly valves with stainless steel actuator

Single acting Normal Open Sanitary level 3 inch powder butterfly valves with stainless steel actuator

    • Single acting Normal Open Sanitary level 3 inch powder butterfly valves with stainless steel actuator
    • Single acting Normal Open Sanitary level 3 inch powder butterfly valves with stainless steel actuator
    • Single acting Normal Open Sanitary level 3 inch powder butterfly valves with stainless steel actuator
  • Single acting Normal Open Sanitary level 3 inch powder butterfly valves with stainless steel actuator

    Product Details:

    Place of Origin: China
    Brand Name: DONJOY
    Certification: CE,3A,FDA
    Model Number: NO.

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiation
    Packaging Details: carton box
    Payment Terms: T/T, LC, Credit Card
    Contact Now
    Detailed Product Description
    Product Name: Powder Butterfly Valve Materials: 304 / 316L
    Size: DN65 - DN300, 2.5" - 12" Operation: Pneumatic
    Connection: Welding Structure: With SS Actuator
    Feature: Double Seat
    High Light:

    stainless butterfly valves

    ,

    pneumatic butterfly valve

    Single acting normal open Sanitary level 3 inch butterfly valves with stainless steel actuator for powder

     Specifications

    Product Name:

    Pneumatic powder butterfly valve

    Valve Body Material:

    SS304 / 316L

    Seal Material:

    EPDM (standard) FPM / SILICON / NBR, FDA 177.2600

    Max Working Pressure:

    5 Bar

    Max.Working Temperature:

     120 degree C

    Available  size:

    2.5"-12",DN65-DN300

    Available connection:

    Clamp /welding / thread / special connection

    Available standard:

    3A/DIN/SMS/RJT/ISO/IDF

    Operated:

    Manual, Pneumatic, Electric

    Control:

    Smart valve positioner / C-TOP control / position sensor

    Certificate:

    3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO

    Application scope:

    Dairy, food, beverage, pharmacy, cosmetic, etc

    Feature:

    Internal leakage can be observed

    Cleaning:

    Valve chamber can be cleaned

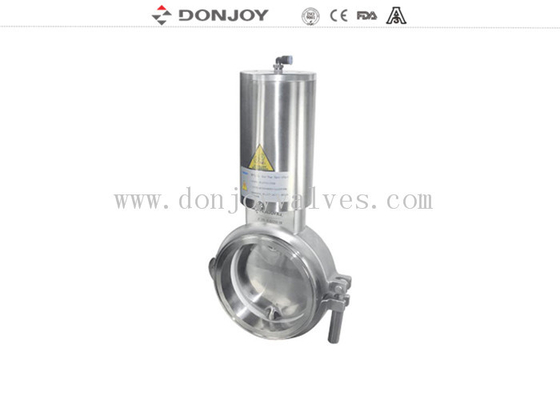

    Single acting Normal Open Sanitary level 3 inch powder butterfly valves with stainless steel actuator 0

    Single acting Normal Open Sanitary level 3 inch powder butterfly valves with stainless steel actuator 1

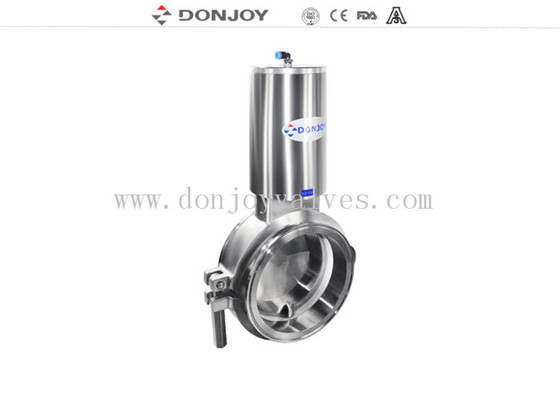

    Single acting Normal Open Sanitary level 3 inch powder butterfly valves with stainless steel actuator 2
    Material
    The material connected with others: AISI 316L / 1.4404
    The material in other parts: AISI 304
    Seal ring: EPDM FDA 177.2600
    Internal surface finish: Ra ≤ 0.8μm
    External surface finish: CNC fine machining



    Options
    Gasket: NBR / MVQ / FPM
    Pneumatic actuator of double-acting
    Inductive position sensor
    C - TOP control head
    Position sensor


    Handle selection
    Two-position handle;
    three-position handle;
    four-position pull handle;
    multi-position plastic handle;
    multi-position stainless steel handle;

    Connection
     SMS, RJT, DIN, 3A, ISO, Clamped, welded and threaded etc.

    Packaging Details
     Bubble pack for each valve.
     Outside packing are carton or plywood cases.
     Or as per the request of customers.

    Delivery details
     Usually within 20 days after receiving T/T down payment.

    Drawing
    Single acting Normal Open Sanitary level 3 inch powder butterfly valves with stainless steel actuator 3
