High Performance Pneumatic Angle Valve For Bleaching Food Washing

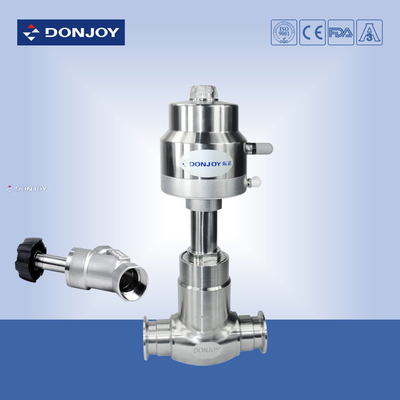

Large Image : High Performance Pneumatic Angle Valve For Bleaching Food Washing

Product Details:

Place of Origin:	CHINA
Brand Name:	DONJOY
Certification:	CE,3A,FDA
Model Number:	NO.VQD100Q2

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	$100-$500/pc
Packaging Details:	carton box
Payment Terms:	T/T, LC, Credit Card

Contact Now

Detailed Product Description

Product Name:	Globe Valve	Size Of Panel:	DN10-DN100,1/2"-3"
Operation:	Pneumatic, Control Head,	Media:	Ss304/ss316L
Connection:	Clamp	Working Temperature:	120℃ （standard）180℃（optional）
Working Pressure:	8bar(standard) 10bar(optional)
Highlight:	angle body valve , slanted seat valve

High Performance Pneumatic Angle Valve For Bleaching Food Washing

specifications:

Product Name:	1.5 inch Stainless steel Acuator globe valve,high purty adjust globe valve
Valve Body Material:	CF8M/316L
Seal Material:	EPDM
Max. Working Temperature:	120 degree ,180Degree(Option)
Availably size:	DN15-DN65 or 0.5" - 2.5"
Availably connection:	Thread,Weld,Clamp,BSP/BSP/NPT
Operate:	Pneumatic ,Manual, Control Head
Certificate:	FDA,CE,ISO

Operation Options for Globe Valve

1. Manual:Plastic handwheel, Stainless steel Wheel,Fine-turning hand wheel

2. Pnuematice:Plastic and stainless steel actuators

3. Control Head: Valve Positioner, Process controller, C-Top, Mini C-Top,Position Sensor

Operationg Principles

1. Globe valve are operated automatically by a single-acting or a double-acting pneumatic acutor. By supplyiing compressed air, the shaft is moved to place the valve in the “open” or “closed” position.

2. The 180degree rotation of the pneumatic cylinder to realize the interchange of normally open and normally closed.

Applications:

Globe valve is a general switch in the automactic control system is widely used in printing, dyeing,bleaching, food,washing, chemical, water treatment,pharmacy and other automated machinery and equipment. It is featured with water hammer protection. Noise-free, reliable sealing performance.

Certificate

Donjoy manufacture products certified by 3A,CE,FDA and so on, according to GMP, EHEDG standard. Production strictly enforce ISO9001-2008 management system.

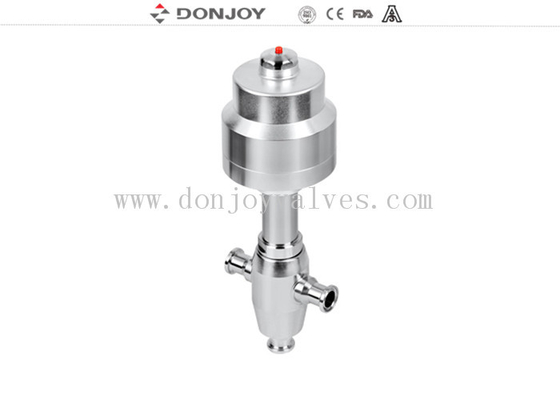

High Performance Pneumatic Angle Valve For Bleaching Food Washing 0

High Performance Pneumatic Angle Valve For Bleaching Food Washing 1
