Biogas Pipeline Filter Housing , 316L Stainless Steel Sever Cartridge Air Filter
  • name
  • name

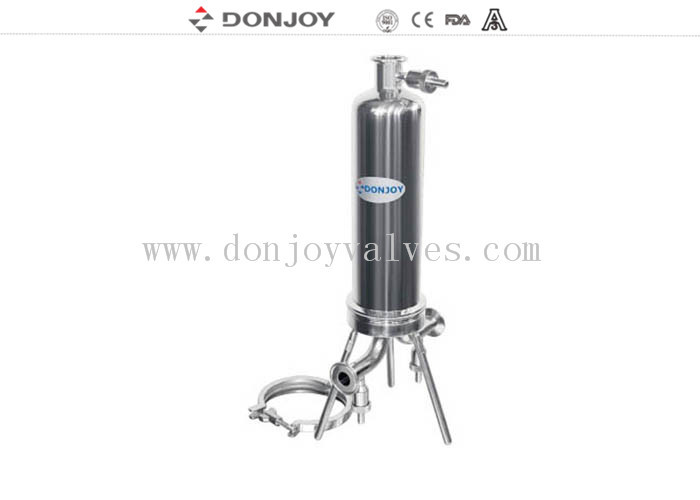

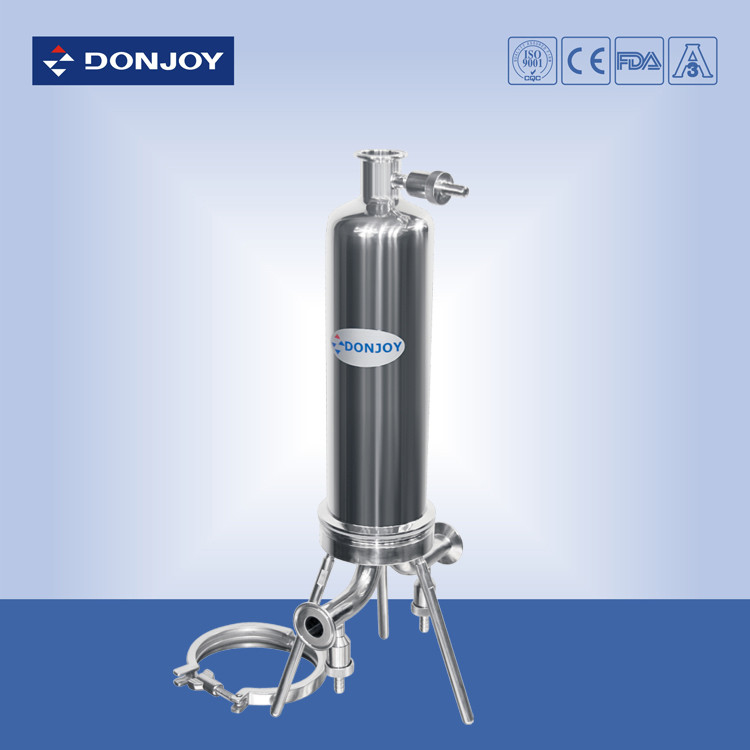

Biogas Pipeline Filter Housing , 316L Stainless Steel Sever Cartridge Air Filter

Brand Name: DONJOY
Model Number: NO.EGL421-01
MOQ: Negotiation
Price: Negotiation
Packaging Details: Carton, Wooden Case
Payment Terms: T/T,L/C, Credit Card
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE/FDA/ISO/3A
SIZE:
10"-40"
Brand:
DONJOY
Stanadard:
DIN,3A,SMS,ISO
Connection:
Clamped, Thread, Welded, Male
Polished:
Mirror, Matt
Processing:
Filter
Highlight:

pipe filters

,

sanitary strainers stainless steel

Product Description

Biogas Pipeline Filter Housing , 316L Stainless Steel Sever Cartridge Air Filter



Quick Detail

Filter Housing, Water Filter, Gas Filter

Size:10"-40"

Inernal Surface Polished: Ra＜0.2um.

Materials Of Housing : SUS304,SUS316L

Connection: Clamp,Flange

Capacity:0.5T/H-25T/H

Catridge: PP,PTEF,PE,

Hole Dia:0.1μm,0.22μm,1μm,3μm,5μm,10μm

Filter Seat:10",20",30",40"



Specification

Product Name:

Micro-Filter Base with Smaple/Vent Valve, Three Core filter, 226 Cartridage.SS304

Material:

AISI304, AISI316L

Size:

10"-40"

Finish:

Ra ≤0.2μm,Mirror, 320Grit, 180Grit, 240Grit

Connection:

Welded, Threaded, Clamped

Standard:

DIN,3A,SMS,ISO

Certificate:

CE, ISO9001/2008, 3A

Application scope:

Dairy, food, beer, beverage, pharmacy, cosmetic,Oil,Waste water etc

Packaging Details:

Shrink wrapped - carton - pallet . Or as per the request of customers



Description:

These filter housings are manufactured from 304 or 316L stainless steel of the highest quality, available in 1,3,5,8.....45 round configurations and in 10 inch, 20 inch, 30 inch and 40 inch length cartridge, the cartridge end cap could be 226/fin(Code 7), 222/fin(Code 3), DOE(Code 0), etc.



Application:

Stainless steel cartridge filter housings are suitable for a variety of liquid filtration applications(high purity beverage, chemicals and pharmaceuticals, water treatment, alcohol beverage industry, etc).





Biogas Pipeline Filter Housing , 316L Stainless Steel Sever Cartridge Air Filter 0
