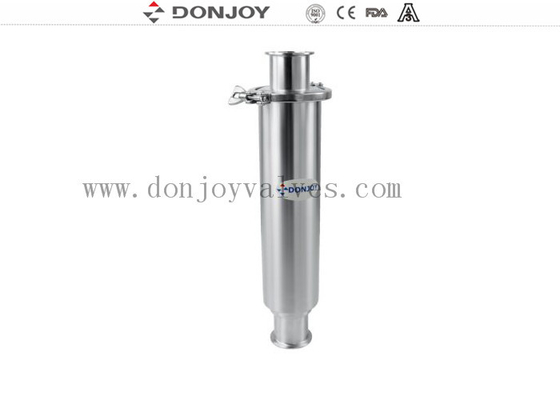

Sanitary AISI 316L Stainless Steel Juice Pipeline Filter With EPDM Gasket
Quick Detail
Sanitary filter/Strainer, Food grade Filter, Juice Filter
1. Materials: SUS304/SUS316L, 1.4301/1.4404, AISI304/AISI316L
2. Size:1"-4"
3. Screen:30-300meshes
4. Screen Hole:0.5mm-2mm
5. Surface: Inside RA≤0.8um,Outside: Mirror Polished
6. Working tempressure: -10℃ to 120 ℃(EPDM), +140℃ (SIP,30 Minites)
14℉ to 248℉
7. Max pressure: 10Bar,145PIS
8. Connection: Clamped, Welded, Thread
9.Standard: DIN,3A, RJT,SMS,ISO,IDF
10. Gasket: EPDM ( FDA 177.2600)
Specification
|
Product Name:
|
AISI316L Sanitary Stainless steel juice pipeline angle filter 1inch to 4 inch
|
|
Material:
|
AISI304, AISI316L
|
|
Size:
|
1-4"
|
|
Finish:
|
Ra ≤0.8um,Mirror, 320Grit, 180Grit, 240Grit
|
|
Connection:
|
Welded, Threaded, Clamped
|
|
Standard:
|
DIN,3A,SMS,ISO
|
|
Certificate:
|
CE, ISO9001/2008, 3A
|
|
Application scope:
|
Dairy, food, beer, beverage, pharmacy, cosmetic,Oil,Waste water etc
|
|
Packaging Details:
|
Shrink wrapped - carton - pallet . Or as per the request of customers
|
Operating Principles:

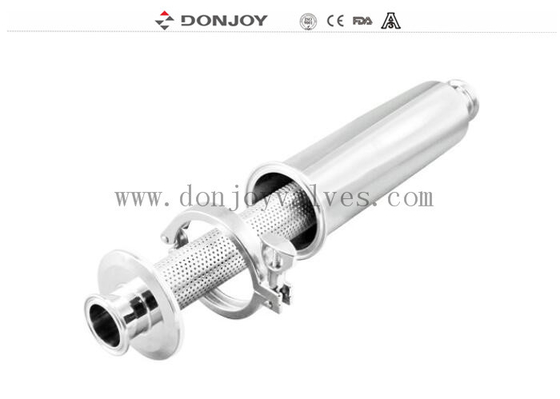

The Filter consists of inlet and outlet housing, inner screen mesh to filter the particulates and impurities which can't pass the mesh
Feature:
Sanitary Filters provide reliable means of removing fine particles from liquids; filtering media must be removed and disposed periodically. Strainers, on the other hand, actually are coarse filters that remove larger particles; the straining mesh can be reused after cleaning. An inline sanitary filter that filters down to 0.023 micron with a 99.99% efficiency. Use it anywhere you need to keep something sanitary.
Advantage:
hygiene level filter sleeve unique structure, make each sleeve no dead Angle, both internal and external surface can be completely unpick and wash, easy to operate.
Packing details:
Each with wrap then put in caton. If shipped by sea will packed in the wooden case
Shipping details:
Uaually within 7 days after receiving T/T down payment
Term of conditions: EXW PRICE, FOB, CIF....
After-sale Service
| Please contact our After-sales service department in time within 30days after you received the cargo. |
| Time: 8:00 a.m.- 5:30 p.m. (Beijing time) |
| Process |
Please provide the copy of Sales Contract and describe the problems
appeared.
|
| Problems confrimation: |
| Slight problem: |
Please send the proof to our After-Sales Department, we will reply within two days. |
| Serious problem: |
| a |
We will dispatch our Quality and Problems Appraisers to make a confirmation. |
| b |
Have a negotiation of the compensation and sign agreements |
| c |
Our After-Sales Department will perform the duties as the agreements |
Metal Mesh
| Mesh |
B(MM) |
Useful Surface(%) |
| 30 |
0.55 |
48 |
| 40 |
0.4 |
46 |
| 60 |
0.3 |
52.6 |
| 80 |
0.2 |
42 |
| 100 |
0.15 |
36.2 |
| 165 |
0.1 |
45.4 |
Perforate Plate
| A(MM) |
Useful Surface(%) |
| 0.5 |
15 |
| 1 |
28 |
| 1.5 |
33 |
| 2 |
30 |
| 3 |
33 |
| 5 |
46 |
If you still have any problems,Please do not hesitate to contact us.
