DONJOY quality sanitary stainless steel 304 / 316L DN 50 Butterfly Valves Single Weld and DIN male threded connection

DONJOY quality sanitary stainless steel 304 / 316L DN 50 Butterfly Valves Single Weld and DIN male threded connection

    • DONJOY quality sanitary stainless steel 304 / 316L DN 50 Butterfly Valves Single Weld and DIN male threded connection
    • DONJOY quality sanitary stainless steel 304 / 316L DN 50 Butterfly Valves Single Weld and DIN male threded connection
  • DONJOY quality sanitary stainless steel 304 / 316L DN 50 Butterfly Valves Single Weld and DIN male threded connection

    Product Details:

    Place of Origin: China
    Brand Name: DONJOY
    Certification: CE,3A,FDA
    Model Number: NO.

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiation
    Packaging Details: carton box
    Payment Terms: T/T, LC, Credit Card
    Contact Now
    Detailed Product Description
    Materials: 304 / 316L Surface: Ra≤0.8um
    Operation: Plastic Multi - Position Handle Connection Mode: Clamped
    Structure: Multi - Position Handle And Butterfly Valve Temperature Of Media: Midum
    Max Temperature: 120 Degrees Max Pressure: 10 Bar
    High Light:

    stainless butterfly valves

    ,

    pneumatic butterfly valve

    DONJOY hiqh quality sanitary stainless steel 304 / 316L DN 50 Butterfly Valves Single Weld and DIN threded



    Technical Specifications

    Max.Pressure: 10Bar(DN25-DN100), 8Bar (DN125-DN150), 5Bar( DN200-DN300)

    Min. Pressure:0.2Bar

    Working Temperature: -10C° to +120 Degree( EPDM)



    Specifications

    Product Name:

    Stainless Steel 304/316L, DN 50 Single Weld Single DIN

    threaded Butterfly valve

    Valve Body Material:

    SS304/316L

    Seal Material:

    EPDM (standard) FPM/SILICON/NBR, FDA177.2600

    MaxWorking Pressure:

    10Bar

    Max.Working Temperature:

    120 degree C

    Available  size:

    DN10-DN300, 1/2"-12"

    Available connection:

    Clamp/welding/thread/special connection

    Available standard:

    3A/DIN/SMS/RJT/ISO/IDF

    Operated:

    Manual,Pneumatic, Electric

    Handle application:

    Two-position handle, three-position handle, four-position pull handle, multi-position plastic handle and multi-position

    stainless steel handle

    Control:

    Smart valve positioner / C-TOP control / position sensor

    Certificate:

    3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO

    Application scope:

    Dairy,food, beverage, pharmacy, cosmetic, etc

    Model of plastic multi - position handle:

    NO. VSB04 / NO.VSB06 / NO.VSB08

    Installation of handle:

    On one side of valve



    Design and Features

    Compact and robust Design

    Available sizes DN25-DN300(1/2"-12")

    Multi-Position handle is suitable up to DN100/4"

    Pull hand is suitable up to DN25-DN300(1/2"-12")

    PED97/23EC

    FDA.177.2600

    The valve body can be changeable with any kind of connection



    Connection

    Clamped, welded and threaded etc.



    Application

    Used in food-processing, pharmacy and chemical industries.



    Operating Principles

    Can be operated automatically through the actuator or manually with the handle

    The handle blocks the valve in the OPEN or CLOSED position, certainly, there are the other position available.

    The actuator pushes the piston of axial movement into 90degree so that it controls butterfly valve.



    Various handles

    1. Pull Handle

    2,Multi-Position Handle(Blue Plastic)

    3.Multi-Position Handle (Stainless Steel) Lockable



    Packaging Details

    Bubble pack for each valve.

    Outside packing is carton or plywood cases.

    Or as per the request of customers.



    Delivery details

    Usually within 20 days after receiving T/T down payment.



    Operating Torque(N.M)



    DN25/1"



    DN40/1.5"



    DN50/2"



    2.5"



    DN65



    3"



    DN80



    DN100/4"



    DN125



    DN150



    3



    4



    5



    10



    12



    14



    18



    25



    40



    55

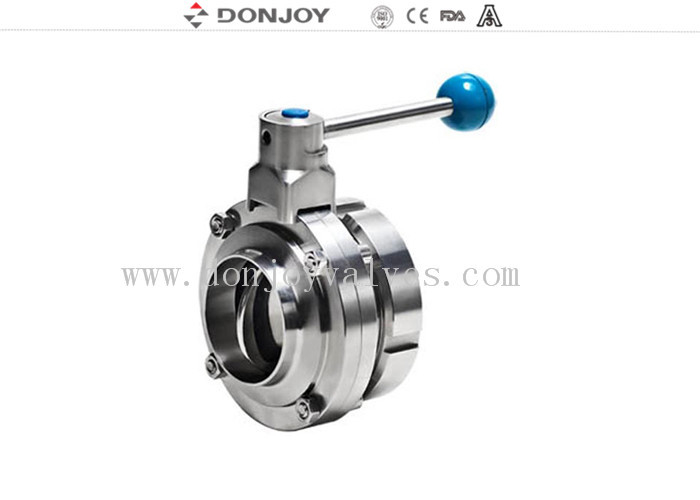

    DONJOY quality sanitary stainless steel 304 / 316L DN 50 Butterfly Valves Single Weld and DIN male threded connection 0

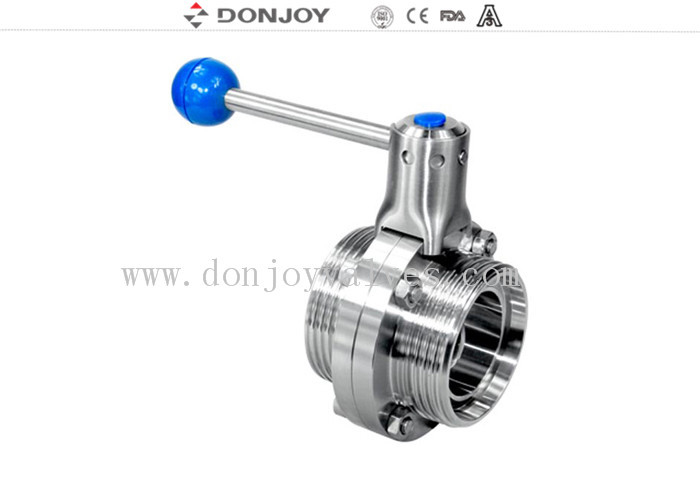

    DONJOY quality sanitary stainless steel 304 / 316L DN 50 Butterfly Valves Single Weld and DIN male threded connection 1
