Name: Donjoy SS316L Aspetic Sampling Valves With Tank Connection
Brand: DONJOY TECHNOLOGY CO., LTD
SKU: NO.VQY100S1
Price: 7,499.60 USD
Availability: InStock

Home > Products > Sampling Valve >

Donjoy SS316L Aspetic Sampling Valves With Tank Connection

Donjoy Aspetic sampling valves

SS316L Aspetic sampling valves

Tank Connection Aspetic sampling valves

Place of Origin:

CHINA

Brand Name:

DONJOY

Certification:

CE/FDA/ISO/3A

Model Number:

NO.VQY100S1

Request A Quote

Product Details

Brand:

DONJOY

SIZE:

12.7mm,1/2"mm

Stanadard:

DIN,3A,SMS,ISO

Connection:

Welded, Clamped,Thread

Polished:

Mirror, Matt

Operation:

Automatic Return Type

Payment & Shipping Terms

Minimum Order Quantity

Negotiation

Packaging Details

WOODEN CASE, CARTONS

Payment Terms

T/T,L/C, Credit Card

Weld Connection Aseptic Sterilizable Sample Valve Polished

Get Best Price

Video

sanitary level aseptic sampling valves with DN50 tank connector

Get Best Price

Video

Automaitc return handle Aspetic Sampling Valve with welded Connection

Get Best Price

Manual Sanitary Sample Valve Thread Connection Ra≤0.8μm / Ra≤0.5μm

Get Best Price

86-18967799769

donjoy01@cndonjoy.com

86-577-86998000

Contact Now

Product Description

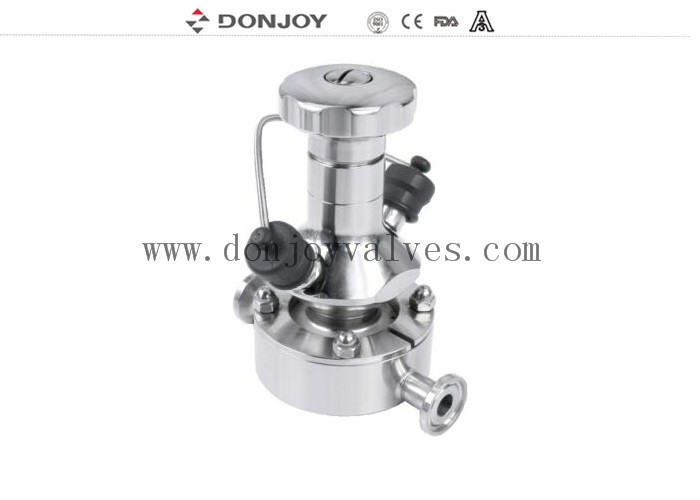

Donjoy SS316L Aspetic sampling valves with tank connection

Quick Detail

Sampling Valve

Size:12.7mm,1/2",3/8",1/2",3/4"

Type: Automatic return type (Manual)

Gasket: EPDM,PTFE

Working Pressure:6Bar

Temperature: 130 Degree(EPDM) 150Degree(PTFE)

Polished: Mirror, Mattr, Ra≤0.8μm,Ra≤0.5μm

Connection: Thread, clamp, Weld, Tank welding

Certificate: PED97/23/EC,FDA 177.2600

Specification

Product Name:	Stainless steel manual aspetic sampling valve with single sample port
Material:	AISI316L
Size:	1/2"
Finish:	Ra ≤0.8um,Mirror, 320Grit, 180Grit, 240Grit
Connection:	Welded,Clamped
Standard:	DIN,3A,SMS,ISO
Certificate:	CE, ISO9001/2008, 3A
Application scope:	Dairy, food, beer, beverage, pharmacy, cosmetic,Oil,Waste water etc
Packaging Details:	Shrink wrapped - carton - pallet . Or as per the request of customers

Drawing

Donjoy SS316L Aspetic Sampling Valves With Tank Connection 0

Application :

The aseptic sampling valve is applied to beer, milk, beverage, fruit juice, pahmacy industries etc...

Relate products

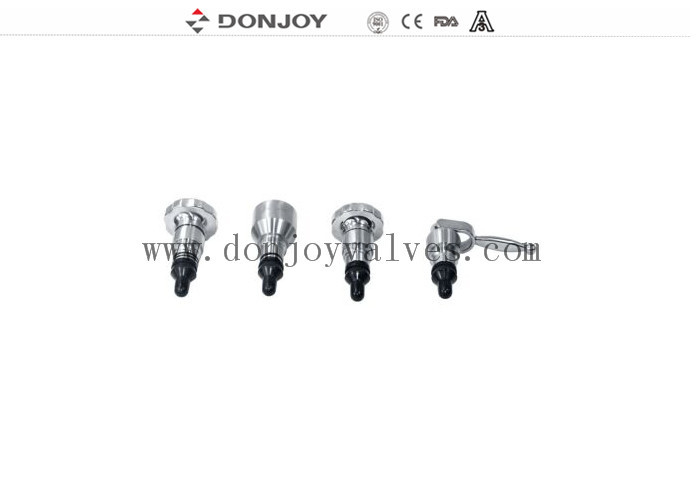

Donjoy SS316L Aspetic Sampling Valves With Tank Connection 1

Valve body with various configurations

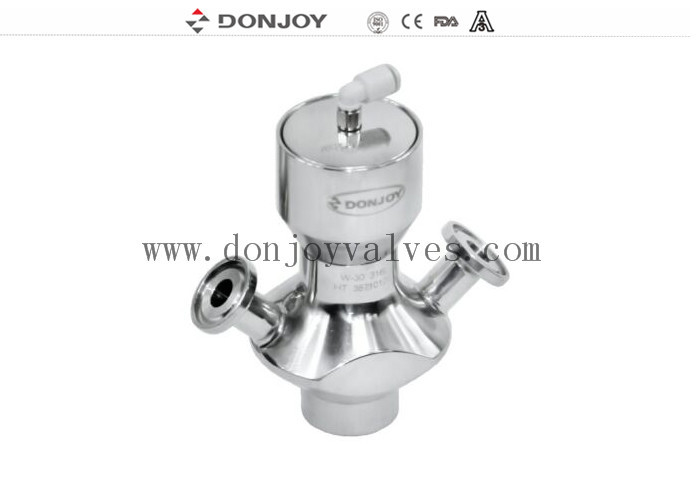

Donjoy SS316L Aspetic Sampling Valves With Tank Connection 2

Tag : Sampling valve, Donjoy Valve, Sanitary valves
