| Place of Origin: | CHINA |
| Brand Name: | DONJOY |
| Certification: | CE/FDA/ISO/3A |
| Model Number: | ASEPTIC TYPE |
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | WOODEN CASE, CARTONS |
| Payment Terms: | T/T,L/C, Credit Card |
| Brand: | DONJOY | SIZE: | 1"-4" |
|---|---|---|---|
| Stanadard: | DIN,3A,SMS,ISO | Connection: | Weled, Flange |
| Polished: | Mirror, Matt | Pressure: | 6 Bar |
| High Light: | Sample valves,sampling valve stainless steel |
||

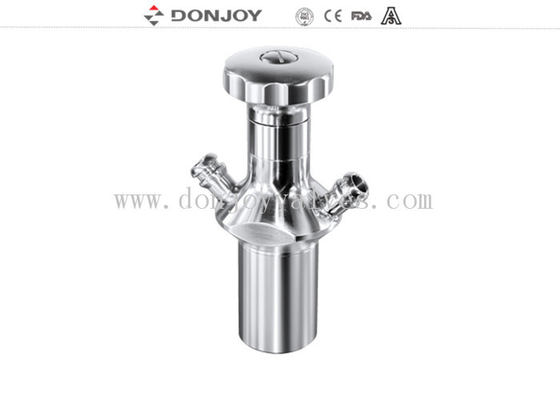

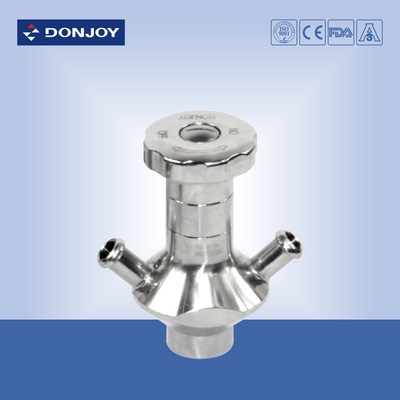

sanitary level aseptic sampling valves with DN50 tank connector
Specification
|
Product Name: |

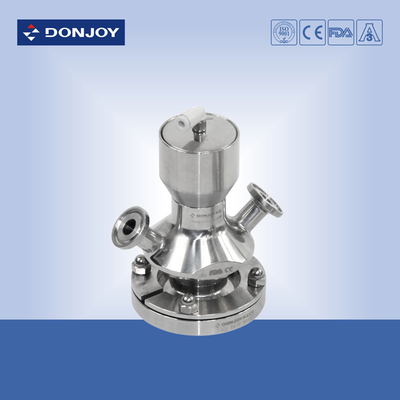

Pnuematic Aseptic sampling valve with tank connector, SS316L,1" to 4 inch |
|
Material: |
AISI304, AISI316L |
|
Size: |
1"-4" |
|
Finish: |
Ra ≤0.8um,Mirror, 320Grit, 180Grit, 240Grit |
|
Connection: |
Welded, Flange |
|
Standard: |
DIN,3A,SMS,ISO |
|
Certificate: |
CE, ISO9001/2008, 3A |
|
Application scope: |
Dairy, food, beer, beverage, pharmacy, cosmetic,Oil,Waste water etc |
|
Packaging Details: |
Shrink wrapped - carton - pallet . Or as per the request of customers |
Introduction
The aseptic sampling valve is designed for sterilization before and after each sampling.
Open :Sampling-the manual valve is opened by rotating the handle (adjustable value) or by activating the lever (on/off valve), the stem and the membrance are then retracted, allow liquid to pass.
Closed: Sterilizing-the built-in spring closes the valve and keeps the channel open between the hoses though reverse process in order to sterilize.If using by steam, a small pressure relief valve (optional) on the outlet is recommended.
Standard design: the aseptic sampling valve consists of three parts, a valve body, a handle and a membarnce, the rubber.
Handle:(1) Turning handle (2) removable key
Application: The aseptic sampling valva is applied to beer,milk, beverage, fruit juice, pharmacy industries .
Donjoy specializes in manufacturing and exporting valve,pump,fitting for over 20 years with good quality and pretty competitive price. Products are with 3A,CE,FDA cetification and production management is according to ISO9001-2008.
