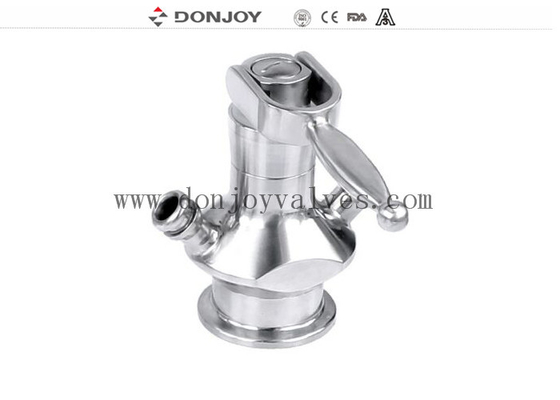

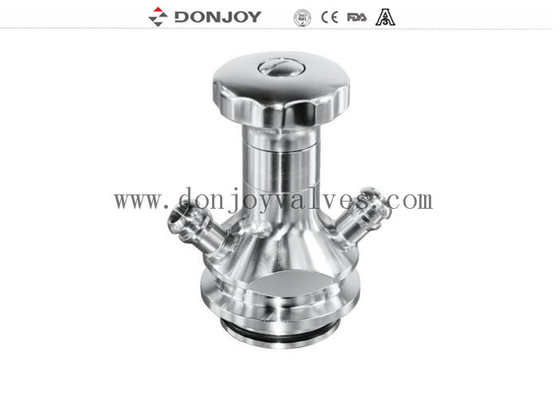

DIN SS316L Turning Handle Sampling Valve With Tri Clamp Connection

SS316L turning handle Aseptic and sterilizable sample valve with Tri clamp connection

Quick Detail

Sampling Valve

Size: 25mm / 50.5mm

Type: Automatic return type smpaling valve

Gasket: EPDM,PTFE

Working Pressure:6Bar

Polished: Mirror, Mattr, Ra≤0.8μm,Ra≤0.5μm

Handle: Turing handle, Removable handle

Specification

Application : The aseptic sampling valve is applied to beer, milk, beverage, fruit juice, pharmacy industries,

Aseptic Sampling Valves Standard Design

Aseptic sampling valve is made from three parts: valve body, valve head, and one piece of the diaphragm. A rubber diaphragm valve is put at the axis of the valve head, acting as an extensible valve core.

• End connections can be welded, clamped, or threaded, only one size DN8 available.
• Handle type: rotary handle, key handle
• Valve open: sampling valve close: sterilization

Open(sampling)          Close(Steriling)

Operating Principles

The aseptic sampling valve is designed for sterilization before and after each sampling.

Open: Sampling- the manual valve is opened by rotating the handle( adjustable valve) or by activating the lever (on/off valve). The stem and the membrane are then retracted, allowing liquid to pass

Closed : Sterilizing- the build - in spring closes the valve and keeps the channel open between the hoses through reverse process in order to sterilize. If using by steam, a small pressure relief valve(optional) on the outlet is recommeded.

Standard Design : The aseptic sampling valve consists of three parts, a valve body, a handle and a menbrane. The rubber menbrane is placed on the stem of the valve and works as a stretchable plug.

Relate products

Tag : Sample valve, Sanitary valve, Donjoy Valve
