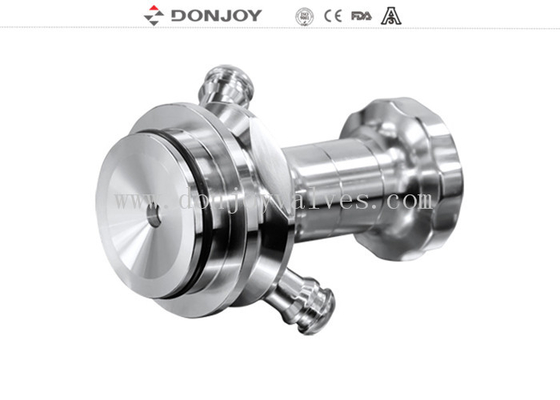

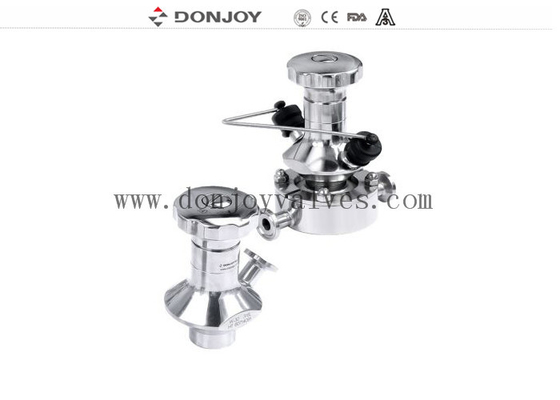

SS316L Automatic Aseptic Sterilizable Sampling Valve For Beverage

SS316L Automatic Aseptic Sterilizable Sampling Valve For Beverage

    • SS316L Automatic Aseptic Sterilizable Sampling Valve For Beverage
    • SS316L Automatic Aseptic Sterilizable Sampling Valve For Beverage
  • SS316L Automatic Aseptic Sterilizable Sampling Valve For Beverage

    Product Details:

    Place of Origin: CHINA
    Brand Name: DONJOY
    Certification: CE/FDA/ISO/3A
    Model Number: NO.VQY100S1

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Packaging Details: WOODEN CASE, CARTONS
    Payment Terms: T/T,L/C, Credit Card
    Contact Now
    Detailed Product Description
    Brand: DONJOY SIZE: WELD OD40MM
    Stanadard: DIN,3A,SMS,ISO Connection: Weled, Flange
    Polished: Mirror, Matt Material: Stainless Steel
    Pressure: 6 Bar
    High Light:

    Sterilizable Sampling Valve

    ,

    Aseptic Sampling Valve

    ,

    SS316L Sampling Valve

    SS316L Automatic Aseptic and sterilizable sampling valve



    Quick Detail

    Sampling Valve

    Size: Weld OD40MM

    Type: Automatic return type smpaling valve

    Gasket: EPDM,PTFE

    Working Pressure:6Bar

    Polished: Mirror, Mattr, Ra≤0.8μm,Ra≤0.5μm

    Handle: Turing handle, Removable handle



    Specification

    Product Name:

    SS316L Automatic Aseptic and sterilizable sampling valve

    Material:

    AISI304, AISI316L

    Size:

    weld OD40MM

    Finish:

    Ra ≤0.8um,Mirror, 320Grit, 180Grit, 240Grit

    Connection:

    Welded, Flange

    Standard:

    DIN,3A,SMS,ISO

    Certificate:

    CE, ISO9001/2008, 3A

    Application scope:

    Dairy, food, beer, beverage, pharmacy, cosmetic,Oil,Waste water etc

    Packaging Details:

    Shrink wrapped - carton - pallet . Or as per the request of customers



    Application : The aseptic sampling valve is applied to beer, milk, beverage, fruit juice, pharmacy industries,



    Aseptic Sampling Valves Standard Design

    Aseptic sampling valve is made from three parts: valve body, valve head, and one piece of the diaphragm. A rubber diaphragm valve is put at the axis of the valve head, acting as an extensible valve core.

    • End connections can be welded, clamped, or threaded, only one size DN8 available.
    • Handle type: rotary handle, key handle
    • Valve open: sampling valve close: sterilization

    av-7a1 av-7a2

    Open(sampling)          Close(Steriling)



    Operating Principles

    The aseptic sampling valve is designed for sterilization before and after each sampling.

    Open: Sampling- the manual valve is opened by rotating the handle( adjustable valve) or by activating the lever (on/off valve). The stem and the membrane are then retracted, allowing liquid to pass

    Closed : Sterilizing- the build - in spring closes the valve and keeps the channel open between the hoses through reverse process in order to sterilize. If using by steam, a small pressure relief valve(optional) on the outlet is recommeded.

    Standard Design : The aseptic sampling valve consists of three parts, a valve body, a handle and a menbrane. The rubber menbrane is placed on the stem of the valve and works as a stretchable plug.
