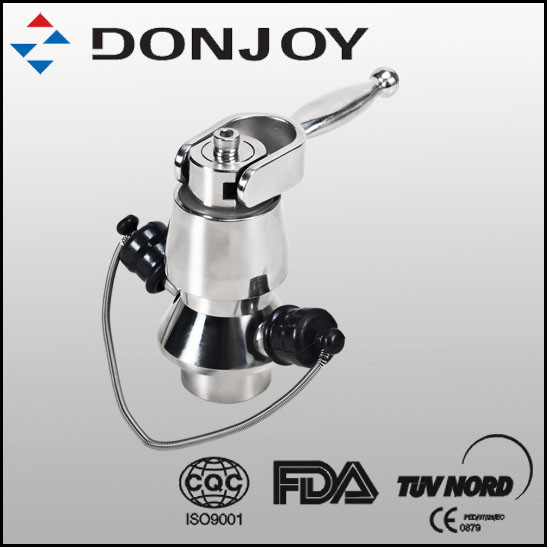

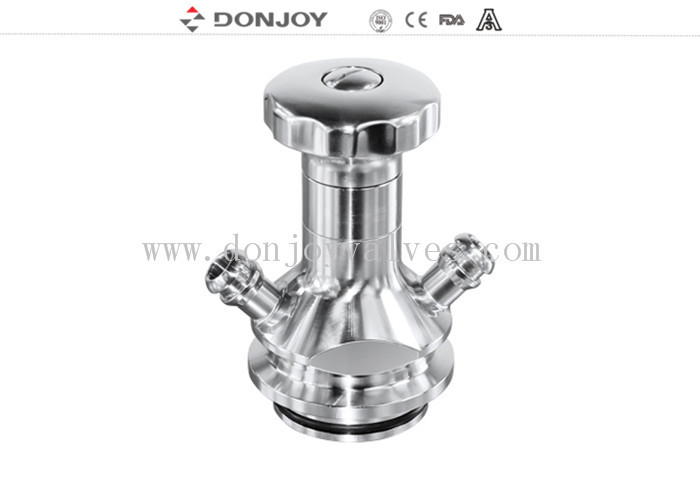

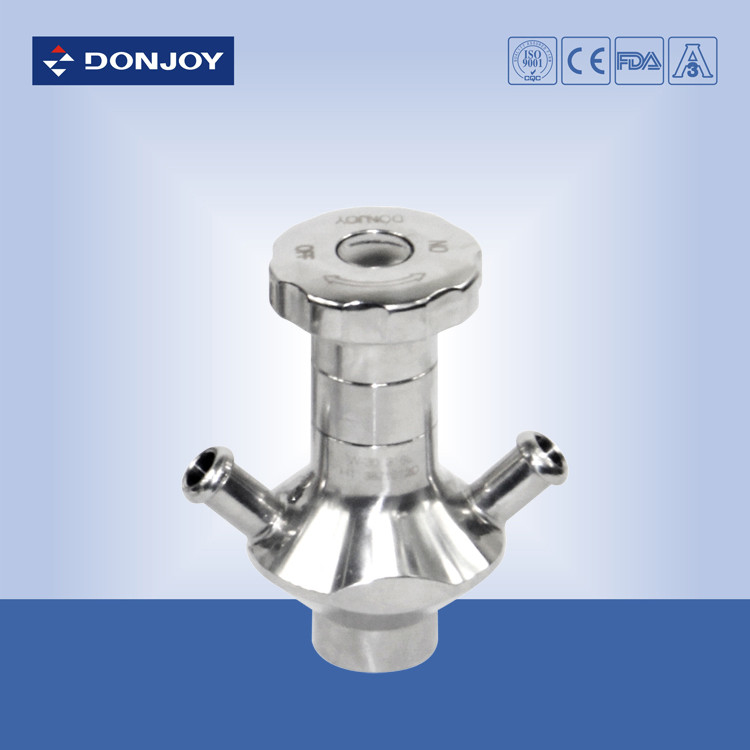

Automaitc return handle Aspetic Sampling Valve with welded Connection

Automaitc return handle Aspetic Sampling Valve with welded Connection

    • small.img.alt
    • small.img.alt
    • small.img.alt
  • large.img.alt

    Product Details:

    Place of Origin: CHINA
    Brand Name: DONJOY
    Certification: CE/FDA/ISO/3A
    Model Number: ASEPTIC MODEL

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Packaging Details: WOODEN CASE, CARTONS
    Payment Terms: T/T,L/C, Credit Card
    Contact Now
    Detailed Product Description
    Brand: DONJOY SIZE: 12.7mm,1/2"mm
    Stanadard: DIN,3A,SMS,ISO Connection: Welded, Clamped
    Polished: Mirror, Matt
    High Light:

    sanitary sample valve

    ,

    sampling valve stainless steel

    Automaitc return handle  Aspetic Sampling Valve with welded Connection,SS316L,



    Quick Detail

    Sampling Valve

    Size:12.7mm,1/2"

    Type:  Pnuematic

    Gasket: EPDM,PTFE

    Working Pressure:6Bar

    Polished: Mirror, Mattr, Ra≤0.8μm,Ra≤0.5μm



    Specification

    Product Name:

    Pneumtic Aspetic Sampling Valve with Clamp Connection,SS316L,

    Material:

    AISI304, AISI316L

    Size:

    1/2"

    Finish:

    Ra ≤0.8um,Mirror, 320Grit, 180Grit, 240Grit

    Connection:

    Welded,Clamped

    Standard:

    DIN,3A,SMS,ISO

    Certificate:

    CE, ISO9001/2008, 3A

    Application scope:

    Dairy, food, beer, beverage, pharmacy, cosmetic,Oil,Waste water etc

    Packaging Details:

    Shrink wrapped - carton - pallet . Or as per the request of customers



    Installation

    The aseptic sampling valve is designed for sterilization before and after each sampling.

    Open :Sampling-the manual valve is opened by rotating the handle (adjustable value) or by activating the lever (on/off valve), the stem and the membrance are then retracted, allow liquid to pass.

    Closed: Sterilizing-the built-in spring closes the valve and keeps the channel open between the hoses though reverse process in order to sterilize.If using by steam, a small pressure relief valve (optional) on the outlet is recommended.

    Standard design: the aseptic sampling valve consists of three parts, a valve body, a handle and a membarnce, the rubber.

    Handle:(1) Turning handle (2) removable key



    Application:

    The aseptic sampling valva is applied to beer,milk, beverage, fruit juice, pharmacy industries .
