DONJOY ASME BPE STAINLESS STEEL SEAMLESS TUBING FITTINGS

Brand Name:	DONJOY
MOQ:	Negotiation
Packaging Details:	Carton, Wooden Case
Payment Terms:	T/T,L/C, Credit Card

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE/FDA/ISO/3A

Brand:

DONJOY

SIZE:

1/2"-8"

Polished:

Unpolished, Matt, Mirror,Annealed, Pickled

Thickness:

1.2mm, 1.5mm,1.65mm,2mm,2.1mm

Staandard:

3A,ISO, SMS,BPE, ISO1127,DIN, ASME/ANSIB16.9

Materials:

SS304/1.4301, SS316L/1.4404

Highlight:

Heavy Duty Clamp

tri clover clamp

Product Description

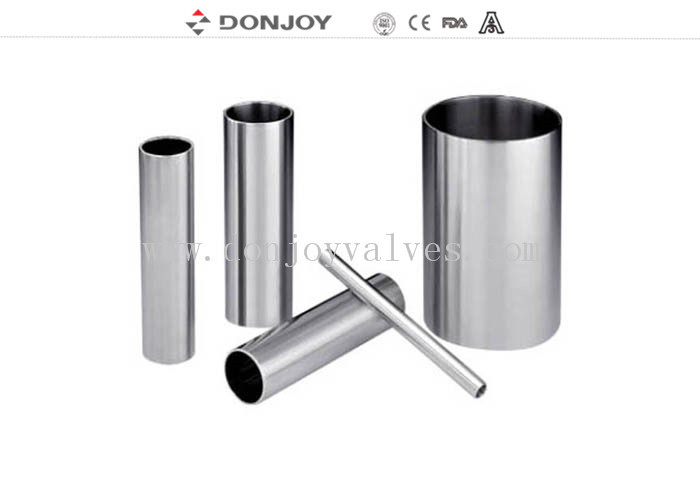

ASME BPE STAINLESS STEEL SEAMLESS TUBING

Quick Detail

Sanitary tube, 6Meter/Length, 3Meter/Length, 5.8M/Length, DN11850 tubing

Polished :Satin, hairline, 2B,BA, mirror

Shape :Round, Square, Rectangular

Tchnique: Cold Rolled

Standard: AISI,ASTM,DIN,JIS,GB,EN

SURFACE: 180Grit, 320Grit, 400Grit, 500Grit, Satin, hairline, 2B,BA, mirror,Unpolished.

Specification

Product Name:	Sanitary Polish ASTM 304/316L welded seamless Stainless Steel tube for food
Material:	AISI304/1.4301, AISI316L/1.4404
Size:	1/2"-8", DN10-DN200
Finish:	mirror polish, stain finishing, RA≤0.8um,180grit,240Grit,320Grit,Annealed, pickled
Connection:	weld ends
Standard:	BPE,3A,SMS,DIN,ISO,ISO1127
Certificate:	CE, ISO9001/2008, 3A
Application scope:	Dairy, food, beer, beverage, pharmacy, cosmetic, etc
Packaging Details:	Shrink wrapped - carton - pallet . Or as per the request of customers

Application
Appplied to the industry of milk, wine, beverage, cheese, food, sauce, edible oil, brewage, meat processing, preservet fruit, cosmetic, biology, chemical industry, pharmacy and so on.

Competitive Advantage
“DONJOY is the only company that pass nine series of products by American 3A certification organization in Asian sanitary pumps and valves field.”

Product drawing

DONJOY ASME BPE STAINLESS STEEL SEAMLESS TUBING FITTINGS 0

ASME BPE Tubing Dimensions Tolerances

Size OD		Wall Thickness		Outside Diameter Tolerance		Length Tolerance		Wall Thickness Tolerance
(in)	(mm)	(in)	(mm)	(in)	(mm)	(in)	(mm)	(%)
½	12.7	0.065	1.65	+/-0.005	+/-0.13	+⅛, -0	+3.18, -0	+/-10.0%
¾	19.1	0.065	1.65	+/-0.005	+/-0.13	+⅛, -0	+3.18, -0	+/-10.0%
1	25.4	0.065	1.65	+/-0.005	+/-0.13	+⅛, -0	+3.18, -0	+/-10.0%
1½	38.1	0.065	1.65	+/-0.008	+/-0.20	+⅛, -0	+3.18, -0	+/-10.0%
2	50.8	0.065	1.65	+/-0.008	+/-0.20	+⅛, -0	+3.18, -0	+/-10.0%
2½	63.5	0.065	1.65	+/-0.010	+/-0.25	+⅛, -0	+3.18, -0	+/-10.0%
3	76.2	0.065	1.65	+/-0.010	+/-0.25	+⅛, -0	+3.18, -0	+/-10.0%
4	101.6	0.083	2.11	+/-0.015	+/-0.38	+⅛, -0	+3.18, -0	+/-10.0%
6	152.4	0.109	2.77	+/-0.030	+/-0.76	+1, -0	+25.4, -0	+/-10.0%

DONJOY BPE Stainless Steel Tubing and fittings compliant with ASME BPE standard, constructed from sanitary stainless steel 316L, provide solid, durability, problem-free for weld or assemble, available in ASME BPE, 3-A, DIN, SMS, ISO, I-line standard. ASME BPE tubing and fittings special used in pharmaceutical and biotech industries.
