DONJOY ASME BPE STAINLESS STEEL SEAMLESS TUBING FITTINGS

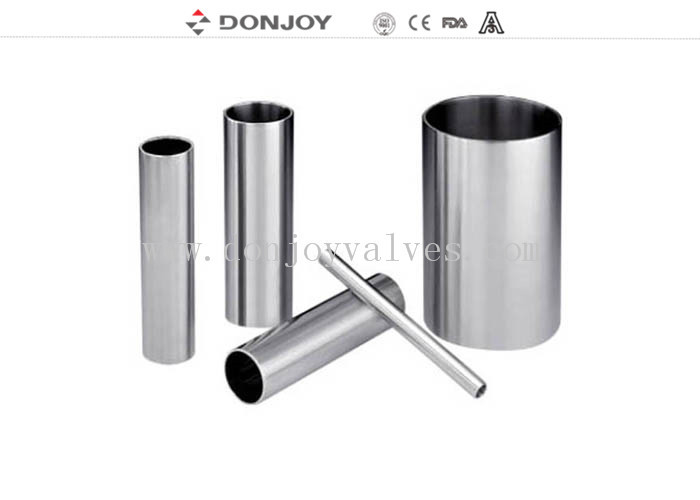

Large Image : DONJOY ASME BPE STAINLESS STEEL SEAMLESS TUBING FITTINGS

Product Details:

Place of Origin:	CHINA
Brand Name:	DONJOY
Certification:	CE/FDA/ISO/3A

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Packaging Details:	Carton, Wooden Case
Payment Terms:	T/T,L/C, Credit Card

Contact Now

Detailed Product Description

Brand:	DONJOY	SIZE:	1/2"-8"
Polished:	Unpolished, Matt, Mirror,Annealed, Pickled	Thickness:	1.2mm, 1.5mm,1.65mm,2mm,2.1mm
Staandard:	3A,ISO, SMS,BPE, ISO1127,DIN, ASME/ANSIB16.9	Materials:	SS304/1.4301, SS316L/1.4404
Highlight:	Heavy Duty Clamp , tri clover clamp

ASME BPE STAINLESS STEEL SEAMLESS TUBING

Quick Detail

Sanitary tube, 6Meter/Length, 3Meter/Length, 5.8M/Length, DN11850 tubing

Polished :Satin, hairline, 2B,BA, mirror

Shape :Round, Square, Rectangular

Tchnique: Cold Rolled

Standard: AISI,ASTM,DIN,JIS,GB,EN

SURFACE: 180Grit, 320Grit, 400Grit, 500Grit, Satin, hairline, 2B,BA, mirror,Unpolished.

Specification

Product Name:	Sanitary Polish ASTM 304/316L welded seamless Stainless Steel tube for food
Material:	AISI304/1.4301, AISI316L/1.4404
Size:	1/2"-8", DN10-DN200
Finish:	mirror polish, stain finishing, RA≤0.8um,180grit,240Grit,320Grit,Annealed, pickled
Connection:	weld ends
Standard:	BPE,3A,SMS,DIN,ISO,ISO1127
Certificate:	CE, ISO9001/2008, 3A
Application scope:	Dairy, food, beer, beverage, pharmacy, cosmetic, etc
Packaging Details:	Shrink wrapped - carton - pallet . Or as per the request of customers

Application
Appplied to the industry of milk, wine, beverage, cheese, food, sauce, edible oil, brewage, meat processing, preservet fruit, cosmetic, biology, chemical industry, pharmacy and so on.

Competitive Advantage
“DONJOY is the only company that pass nine series of products by American 3A certification organization in Asian sanitary pumps and valves field.”

Product drawing

DONJOY ASME BPE STAINLESS STEEL SEAMLESS TUBING FITTINGS 0

ASME BPE Tubing Dimensions Tolerances

Size OD		Wall Thickness		Outside Diameter Tolerance		Length Tolerance		Wall Thickness Tolerance
(in)	(mm)	(in)	(mm)	(in)	(mm)	(in)	(mm)	(%)
½	12.7	0.065	1.65	+/-0.005	+/-0.13	+⅛, -0	+3.18, -0	+/-10.0%
¾	19.1	0.065	1.65	+/-0.005	+/-0.13	+⅛, -0	+3.18, -0	+/-10.0%
1	25.4	0.065	1.65	+/-0.005	+/-0.13	+⅛, -0	+3.18, -0	+/-10.0%
1½	38.1	0.065	1.65	+/-0.008	+/-0.20	+⅛, -0	+3.18, -0	+/-10.0%
2	50.8	0.065	1.65	+/-0.008	+/-0.20	+⅛, -0	+3.18, -0	+/-10.0%
2½	63.5	0.065	1.65	+/-0.010	+/-0.25	+⅛, -0	+3.18, -0	+/-10.0%
3	76.2	0.065	1.65	+/-0.010	+/-0.25	+⅛, -0	+3.18, -0	+/-10.0%
4	101.6	0.083	2.11	+/-0.015	+/-0.38	+⅛, -0	+3.18, -0	+/-10.0%
6	152.4	0.109	2.77	+/-0.030	+/-0.76	+1, -0	+25.4, -0	+/-10.0%

DONJOY BPE Stainless Steel Tubing and fittings compliant with ASME BPE standard, constructed from sanitary stainless steel 316L, provide solid, durability, problem-free for weld or assemble, available in ASME BPE, 3-A, DIN, SMS, ISO, I-line standard. ASME BPE tubing and fittings special used in pharmaceutical and biotech industries.
