|Place of Origin:||CHINA|
|Minimum Order Quantity:||1|
|Packaging Details:||carton box|
|Payment Terms:||T/T, LC, Credit Card|
|Materials:||SS304 / SS316L||Operation:||ABB Motor|
|Mechanical:||Single / Double Seal||Connection Way:||Thread, Clamp, Flange, Welding, Union|
|Power:||380V/ 50HZ, 440V/60HZ||Medium:||Beer / Drug / Beverage Etc.|
Milk Centrifugal High Purity Pumps,
Stainless Steel High Purity Pumps,
Thread Centrifugal High Purity Pumps

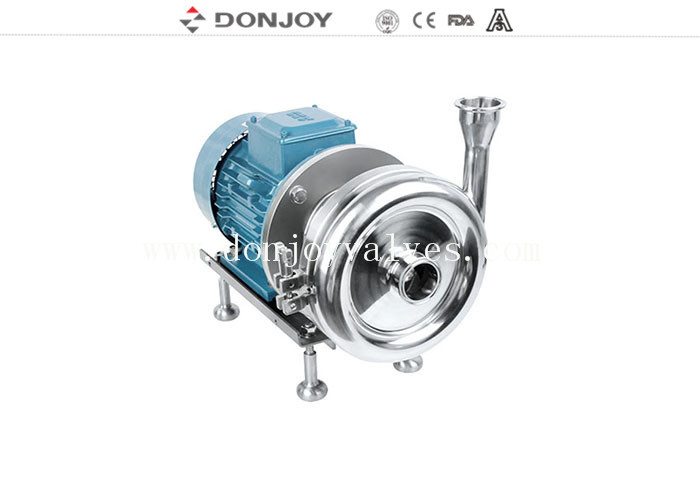

food grade stainless steel CLX-20 centrifugal pump for water and milk
Soluction for high efficiecy, low noise, clamp pump head, easy to clean, simple and economical maintenance, high purity
1. centrifugal pump CLX-05, small flow, small power, high cleanliness, small volume and
other technical characteristics.
2. It is applied to various working conditions during low flow demand, such as biopharmaceutical, fine chemical industry, beer beverage, laboratory, etc.
3. Certification: 3-A-02-11 NO.1759, FDA 177.2600
|Product Name:||Stainless steel High Purity Pumps centrifugal pump for fluid with ABB motor|
|Pump Body Material:||SS304 / SS316L / 1.4301 / 1.4404|
|Seal Material:||EPDM (Standard, FDA approval) FPM (Viton) and NBR|
|Max. Flow:||140 m³/h|
|Max. Speed:||3000 min-1|
|Max. Head:||70 M|
|Temperature Range:||-30°C-130 °C|
|Motor:||ABB / domestic / SIEMENS|
|Motor Frequency:||50HZ, 60HZ|
|Surface treatment:||Inner polished and Sandblast outside|
|Availably connection:||Tri-Clamp, Thread, Flange|
|Availably standard:||DIN, SMS, 3A, RJT, ISO/IDF|
Ra≤0.6μm , EP=Ra 0.4μm
|Low discharge option :||Low discharge / diaphragm valve / ball valve / butterfly valve|
|Application scope:||Dairy,food, beverage, pharmacy, cosmetic, etc|
Motor: ABB / domestic / SIEMENS Motor ( optional )
Availabe connection: tri-clamped, threaded and Flanged.
Available standard: DIN, SMS, 3A, RJT, ISO / IDF
Sealing type: machanical seal
Function: flow control
Mechanical selection (Single mechanical / Double mechanical )
1. This pump is manufactured in stianless steel and with a shrouded motor.
2. Sanitary and cost-efficient design makes it perfect for the daries, beverages, foods-processing,pharmaceutical and fine chemical industries.
Donjoy CLX Seeries centrifugal pump, not only optimize the internal structure, such as impleller design, dead angle treatment, mechanical seal pressure balance design and the mechine seal is completely in the flushing area, but also optimize external sanitation of the pump, which makes its internal absolute sanitation and external reduction of dead angle. Since there is no dead angle area, it is easy to be cleaned by CIP and sterilized by SIP. In addition, dj-lx series pump, has kept the maximum flexibility of combined applications, for example, the pump outlet angle can be arbitrarily adjusted from 0° to 135 °, the pump cover adopts hand whell nut, which keeps high efficiency in the manitenance of the pump and relacement of machine seal. and reduces the highly professional requirements to maintenance personnel without special tools. Therefore, the DJ-CLX series centrifugal pump has achieved the goal of high efficiency, health, high reliability and low cost, making it a high performance pump .
Pump inlet&outlet connection standard
Mini Centrifugal pump comprehensive performance graph
Plywood case or customerized. Or as per the request of customers.
Usually within 20 days after receiving T/T down payment.
Tag : Beverage pump, Oil Pump, Centrifugal Pump
