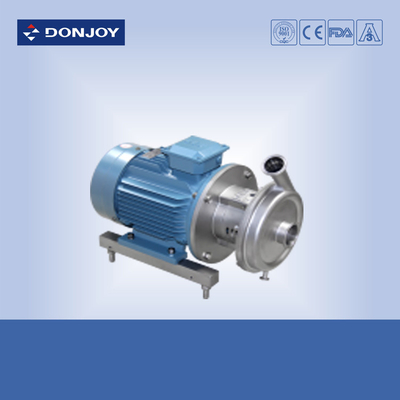

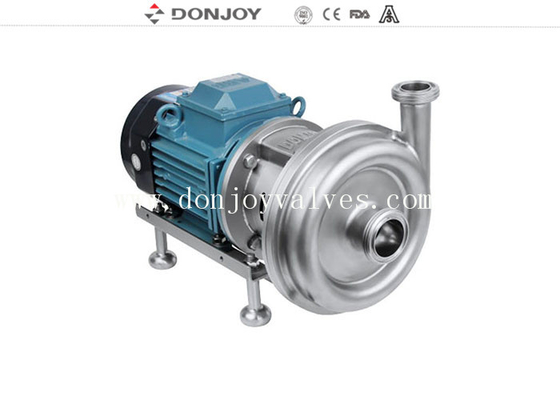

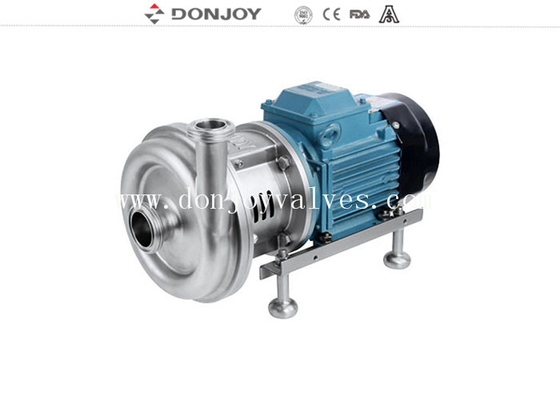

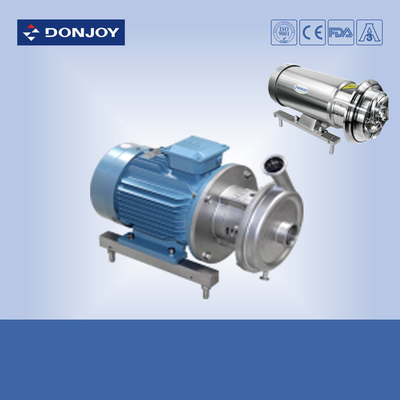

KLX - 20 High Purity Pumps Mechanical ABB Motor with open impeller

KLX - 20 High Purity Pumps Mechanical ABB Motor with open impeller

    • KLX - 20 High Purity Pumps Mechanical ABB Motor with open impeller
    • KLX - 20 High Purity Pumps Mechanical ABB Motor with open impeller
    • KLX - 20 High Purity Pumps Mechanical ABB Motor with open impeller
    • KLX - 20 High Purity Pumps Mechanical ABB Motor with open impeller
  • KLX - 20 High Purity Pumps Mechanical ABB Motor with open impeller

    Product Details:

    Place of Origin: CHINA
    Brand Name: DONJOY
    Certification: CE,3A,FDA
    Model Number: KS - 20

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiation
    Packaging Details: carton box
    Payment Terms: T/T, LC, Credit Card
    Contact Now
    Detailed Product Description
    Item: Sanitary Centrifugal Pump Type: KLX- 20
    Operation: Mechanical ABB Motor Mechanical: Single Seal
    Inlet: 2" Thread Outlet: 2" Thread
    Medium: Fluid Rotor: Opening Type
    High Light:

    lobe rotary pump

    ,

    high pressure pumps

    KLX - 20 High Purity Pumps Mechanical ABB Motor with open impeller


    KLX Series centrifugal pump is upgraded from KS centrifugal pump, not only optimize the internal structure, such as impeller design, dead angle treatment, machine seal pressure balance design and the machine seal is completely in the flushing area.

    Description
    Options

    1. Mechanical seal: SIC / SICE/EPDM, TC/TC,EPDM ( Double or Single Seal )

    2. Gasket: viton / NBR

    3. Connection: Thread, Clamp, Flange (DIN, SMS, RJT, IDF)

    4. Motor: 2900, 1450, 3600Min / 1,50HZ, 60HZ

    5.Certificate: CE, 3A, FDA...



    Specifications

    Product Name: KS-20 SS316L centrifugal beverage pump open impeller witoout cover for beer
    Valve Body Material: SS304 / SS316L / 1.4301 / 1.4404
    Seal Material: EPDM (Standard, FDA approval) FPM (Viton) and NBR
    Max. Flow: 150 m³/h
    Max. Speed: 3600 min-1
    Max. Head: 70H(m)
    Max. Working Pressure: 7 bar/99 PSI

    Max. Working
    Temperature:

    120 °C
    Motor: ABB / domestic / SIEMENS
    Motor Frequency: 50HZ, 60HZ
    Surface treatment: Inner polished and Sandblast outside
    Application structure: KS/BS
    Availably connection: Tri-Clamp, Thread, Flange
    Availably standard: DIN, SMS, 3A, RJT, ISO/IDF
    Operated: Electic
    Low discharge option : Low discharge / diaphragm valve / ball valve / butterfly valve
    Application scope: Dairy,food, beverage, pharmacy, cosmetic, etc
    Rotors: Opening
    Level: Sanitary grade


    Applications
     1. This pump is manufactured in stianless steel and with a shrouded motor.
     2. Sanitary and cost-efficient design makes it perfect for the daries, beverages, foods-processing, pharmaceutical and fine chemical industries.



    Technical Advantages:

    1. Maintenance disassembly and installation can be completed without professional staff and special tools

    2.Initial use of installation debugging, even if a short reverse rotation will not be damaged.

    3.Impeller and shaft are connected by keyway, impeller and mechanical seal rotating ring are connected by pin. Mechanical seal static ring and pump body are connected by special shaped flange

    4. Sompatible with single and double mechanie seal, only need to change machanical seal



    Impeller Disassmebly

    KLX - 20 High Purity Pumps Mechanical ABB Motor with open impeller 0

    KLX Series centrifugal pump various configuration

    KLX - 20 High Purity Pumps Mechanical ABB Motor with open impeller 1

    KLX - 20 High Purity Pumps Mechanical ABB Motor with open impeller 2

    Selection Table of KLX centrifugal pump

    KLX - 20 High Purity Pumps Mechanical ABB Motor with open impeller 3

    KLX - 20 High Purity Pumps Mechanical ABB Motor with open impeller 4

    KLX - 20 High Purity Pumps Mechanical ABB Motor with open impeller 5



    Competitive Advantage
    “DONJOY is the only company that pass nine series of products by American 3A certification organization in Asian sanitary pumps and valves field.”


    Packaging Details

    Plywood case or customerized. Or as per the request of customers.



    Delivery details

    Usually within 20 days after receiving T/T down payment.
