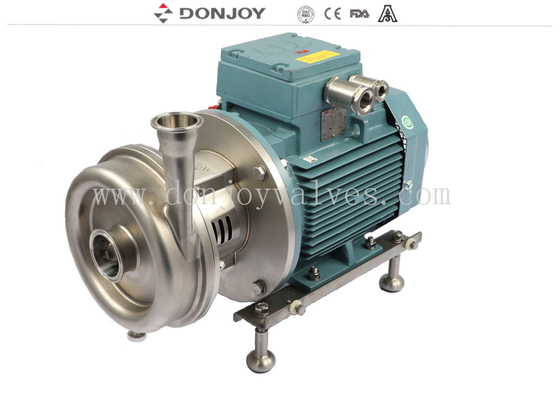

High Performance Stainless Steel Sanitary Vertical Centrifugal Water Pump For Food, Beverage, Wine Processing
Solution for high efficiency, low noise, simple and econonical maintenance, high puirty
KLX Series centrifugal pump is upgraded from KS centrifugal pump, not only optimize the internal structure, such as impeller design, dead angle treatment, machine seal pressure balance design and the machine seal is completely in the flushing area.
Configuration
Mechanical seal in C/SIC and SIC/SIC single or double
Gaskets (standard): EPDM (FDA approval)
Connections: Clamped, male, flanged, DIN, SMS, RJT, IDF
Motor: 2900, 1450, 3600 rev. /min., 50HZ, 60HZ
Parts in contact with media: AISI 316L/AISI304 (Other parts AISI 304)
Specifications
| Product Name: |
High purity Centrifugal pump |
| Valve Body Material: |
SS304 / SS316L / 1.4301 / 1.4404 |
| Seal Material: |
EPDM (Standard, FDA approval) FPM (Viton) and NBR |
| Max. Flow: |
150 m³/h |
| Max. Speed: |
3600 min-1 |
| Max. Head: |
70H(m) |
| Max. Working Pressure: |
7 bar/99 PSI |
|
Max. Working
Temperature:
|
120 °C |
| Motor: |
ABB / domestic / SIEMENS |
| Motor Frequency: |
50HZ, 60HZ |
| Surface treatment: |
Inner polished and Sandblast outside |
| Application structure: |
KS/BS |
| Availably connection: |
Tri-Clamp, Thread, Flange |
| Availably standard: |
DIN, SMS, 3A, RJT, ISO/IDF |
| Operated: |
Electic |
| Low discharge option : |
Low discharge / diaphragm valve / ball valve / butterfly valve |
| Application scope: |
Dairy,food, beverage, pharmacy, cosmetic, etc |
| Rotors: |
Opening |
| Level: |
Sanitary grade |
Applications

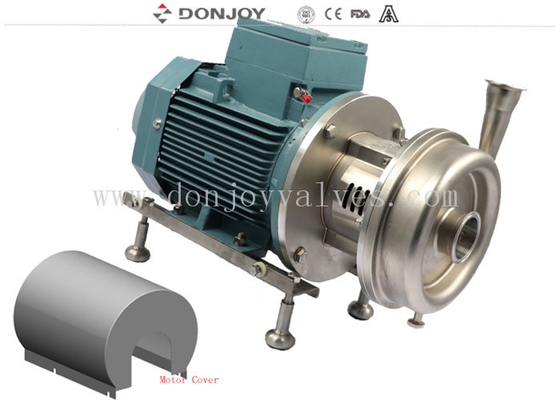

1. This pump is manufactured in stianless steel and with a shrouded motor.
2. Sanitary and cost-efficient design makes it perfect for the daries, beverages, foods-processing, pharmaceutical and fine chemical industries.
Technical Advantages:
1. Maintenance disassembly and installation can be completed without professional staff and special tools
2.Initial use of installation debugging, even if a short reverse rotation will not be damaged.
3.Impeller and shaft are connected by keyway, impeller and mechanical seal rotating ring are connected by pin. Mechanical seal static ring and pump body are connected by special shaped flange
4. Sompatible with single and double mechanie seal, only need to change machanical seal
Surface Treatment
Inside surface finishing: Ra≤ 0.8 um
Outside surface finishing: Sandblast or Mirror polished
Model Selection
| Model |
20 T/24 M |
30 T/24 M |
40 T/36 M |
| Flow |
20 T |
30 T |
40 T |
| Total Head |
24 m |
24 m |
36 m |
| Suction Stroke |
5-6 m |
5-6 m |
5-6 m |
| Impeller Diameter |
192 mm |
192 mm |
215 mm |
| Inlet/Outlet Diameter |
63.5/63.5 mm |
76.5/63.5 mm |
76/76 mm |
| Motor Type |
M2QA132S4A |
M2QA132M4A |
M2QA160SM4A |
| Power |
5.5kw(380V/50HZ ) |
7.5kw(380V/50HZ ) |
11kw(380V/50HZ ) |
| Speed |
1420 r/min |
1420 r/min |
1420 r/min |
| Dimensions(L*W*H) |
760*320*475 |
760*320*475 |
1006*360*600 |
| Machine Weight |
110 kg |
116kg |
168kg |
