SS316L Sanitary Grade Centrifugal Pump With Clamp Connection

SS316L Sanitary Grade Centrifugal Pump With Clamp Connection

SS316L Sanitary Grade Centrifugal Pump

Clamp Connection High Purity Pumps

Beer Beverage Centrifugal Pump

Place of Origin:

CHINA

Brand Name:

DONJOY

Certification:

CE,3A,FDA

Model Number:

CLX

Contact Us

Request A Quote
Product Details
Materials:
SS304 / SS316L
Operation:
ABB Motor
Mechanical:
Single / Double Seal
Connection Way:
Thread, Clamp, Flange, Welding, Union
Power:
380V/ 50HZ, 440V/60HZ
Medium:
Beer / Drug / Beverage Etc.
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiation
Packaging Details
carton box
Payment Terms
T/T, LC, Credit Card
Product Description

CLX Oil Pump with Clamp connection pump head/ Open impeller purity pumps



Soluction for high efficiecy, low noise, clamp pump head, easy to clean, simple and economical maintenance, high purity




Description
 1. centrifugal pump CLX-05, small flow, small power, high cleanliness, small volume and

other technical characteristics.
2. It is applied to various working conditions during low flow demand, such as biopharmaceutical, fine chemical industry, beer beverage, laboratory, etc.

3. Certification: 3-A-02-11 NO.1759, FDA 177.2600

                             CE-MD/06-42 NO.705201616101-00



Specifications

Product Name: Stainless steel High Purity Pumps centrifugal pump for fluid with ABB motor
Pump Body Material: SS304 / SS316L / 1.4301 / 1.4404
Seal Material: EPDM (Standard, FDA approval) FPM (Viton) and NBR
Max. Flow: 140 m³/h
Max. Speed: 3000 min-1
Max. Head: 70 M
Max. power 30KW

Min. power

0.55kw

Temperature Range: -30°C-130 °C
Motor: ABB / domestic / SIEMENS
Motor Frequency: 50HZ, 60HZ
Surface treatment: Inner polished and Sandblast outside
Application structure: CLX
Availably connection: Tri-Clamp, Thread, Flange
Availably standard: DIN, SMS, 3A, RJT, ISO/IDF
Surface treatment:

Ra≤0.6μm , EP=Ra 0.4μm

Low discharge option : Low discharge / diaphragm valve / ball valve / butterfly valve
Application scope: Dairy,food, beverage, pharmacy, cosmetic, etc
Level: Sanitary grade


 Feature
Motor: ABB / domestic / SIEMENS Motor ( optional )
 Availabe connection: tri-clamped, threaded and Flanged.
 Available standard: DIN, SMS, 3A, RJT, ISO / IDF
 Sealing type: machanical seal
 Function: flow control



Mechanical selection (Single mechanical / Double mechanical )

Materials :

1.SIC/C/EPDM

2.SIC/C/FKM

3.C/SIC/HNBR

4.SIC/SIC/EPMD

5.SIC/SIC/FKM

6.SIC/SIC/HNBR

7.TC/TC/EPDM

8.TC/TC/FKM

9.TC/TC/HNBR

SS316L Sanitary Grade Centrifugal Pump With Clamp Connection 0

Applications
 1.  This pump is manufactured in stianless steel and with a shrouded motor.
2.  Sanitary and cost-efficient design makes it perfect for the daries, beverages, foods-processing,pharmaceutical and fine chemical industries.



Advantange

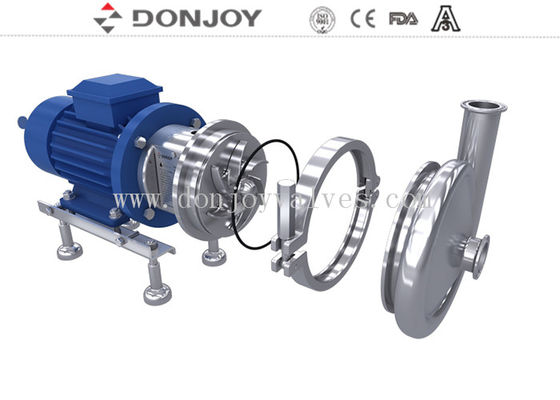

Donjoy  CLX Seeries centrifugal pump, not only optimize the internal structure, such as impleller design, dead angle treatment, mechanical seal pressure balance design and the mechine seal is completely in the flushing area, but also optimize external sanitation of the pump, which makes its internal absolute sanitation and external reduction of dead angle. Since there is no dead angle area, it is easy to be cleaned by CIP and sterilized by SIP. In addition, dj-lx series pump, has kept the maximum flexibility of combined applications, for example, the pump outlet angle can be arbitrarily adjusted from 0° to 135 °, the pump cover adopts hand whell nut, which keeps high efficiency in the manitenance of the pump and relacement of machine seal. and reduces the highly professional requirements to maintenance personnel without special tools. Therefore, the DJ-CLX series centrifugal pump has achieved the goal of high efficiency, health, high reliability and low cost, making it a high performance pump .



Pump inlet&outlet connection standard

SS316L Sanitary Grade Centrifugal Pump With Clamp Connection 1



Selection Table

SS316L Sanitary Grade Centrifugal Pump With Clamp Connection 2

Drawing

SS316L Sanitary Grade Centrifugal Pump With Clamp Connection 3

SS316L Sanitary Grade Centrifugal Pump With Clamp Connection 4



Performance graph

Mini Centrifugal pump comprehensive performance graph
 SS316L Sanitary Grade Centrifugal Pump With Clamp Connection 5

Packaging Details

Plywood case or customerized. Or as per the request of customers.


Delivery details

Usually within 20 days after receiving T/T down payment.
