1.5" SS304 manual quickly Pressure Safety Valve , over flow valve Clamped

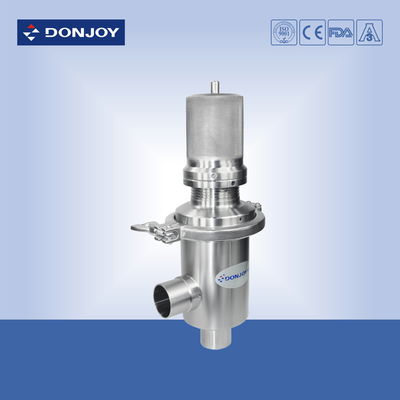

Large Image : 1.5" SS304 manual quickly Pressure Safety Valve , over flow valve Clamped

Product Details:

Place of Origin:	CHINA
Brand Name:	DONJOY
Certification:	CE/FDA/ISO/3A
Model Number:	NO.VAQ100S2

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	USD10-100/SET
Packaging Details:	Carton, Wooden Case
Payment Terms:	T/T,L/C, Credit Card
Supply Ability:	10000PCS/ week

Contact Now

Detailed Product Description

Name:	Quickly Pressure Safety Valve	SIZE:	1"-3"
Stanadard:	DIN , 3A, SMS , SO	Connection:	Welded, Clamped,Thread,
Polished:	Mirror, Matte	Inlet Pressure:	8 Bar
Outlet Pressure:	0.3-5 Bar	KV Value:	4-70M3/H
Highlight:	pressure regulating valve , air release valve

1.5" SS304 manual quickly Pressure Safety Valve , over flow valve Clamped

Quick Detail

Pressure Safety Valve, Over flow Valve ,Pressure adjustment.

Type: Manula, Pnuematic

Applications:

1. Safety valve is used to protecting pipe,pump from over pressure

2. Sanitary and safe design is to prevent operation danger and equipment break down due to pressure

3. With sanitary design stainless steel, the valves is best choice for protection equipment in dairy ,food, beverage, pharmacy and fine chemical industries.

Specification

Product Name:	1.5" SS304 manual quickly release safety valve, over flow valve,Clamped
Valve Body Material:	SS304 or SS316L
Seal Material:	EPDM,NBR,FPM
Max.Working Pressure:	10Bar 120PSI
Max. Working Temperature:	120 degree C
Available size:	DN25-DN80 or 1” - 3"
Available connection:	Flange,Clamp,Welded
Available standard:	DIN,INCH,IDF,3A,SMS
Operate:	Pneumatic, Manual
Certificate:	FDA,CE

Drawing

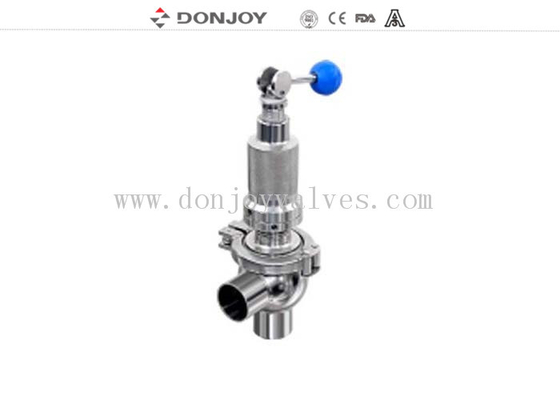

1.5" SS304 manual quickly Pressure Safety Valve , over flow valve Clamped 0

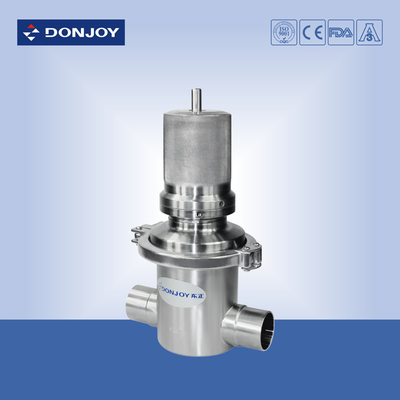

1.5" SS304 manual quickly Pressure Safety Valve , over flow valve Clamped 1

Manual safety valve (Weld ends)

Size	D	DN	L	H	H1	H2
1"	25.4	22.4	50	216	260	269
1.25"	31.8	28.8	55	218	260	269
1.5"	38.1	35.1	60	222	266	309
2"	50.8	47.8	70	265	300	350
2.5"	63.5	59.5	80	297	340	392
3"	76.2	72.2	99	339	370	507

Manual safety valve (Clamp ends)

Size	D	DN	L	H	H1	H2
1"	50.5	22.4	62.7	228.5	260	269
1.25"	50.5	28.8	67.7	230.5	260	269
1.5"	50.5	35.1	72.7	234.5	266	309
2"	64	47.8	82.7	277.5	300	350
2.5"	77.5	59.5	92.7	309.5	340	392
3"	91	72.2	111.7	351.5	370	507

Operating Principle

1. Through the spring to adjustable the pressure.

2. When the pressure in the pipe exceeds to the specified pressure, the valve open automatically to make the liquid flow in order to reduce pressure.

Safety valve type optional

1.Manual quick release safety valve

2.Safety valve(standard)

3.Four way safety valve

4.Pneumatic quick release safety valve

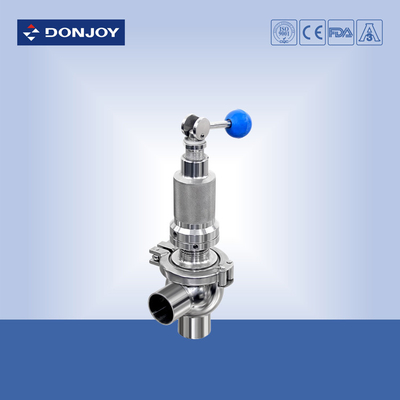

1.5" SS304 manual quickly Pressure Safety Valve , over flow valve Clamped 2
