1" 6Bar Pneumatic pressure release valve with Welded Connection

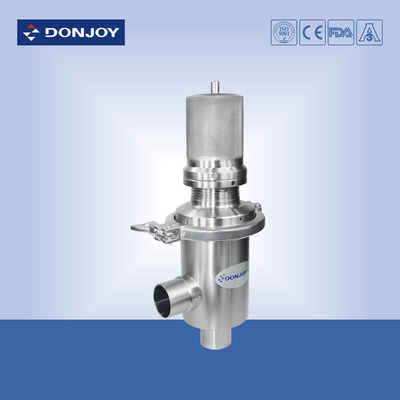

Large Image : 1" 6Bar Pneumatic pressure release valve with Welded Connection

Product Details:

Place of Origin:	CHINA
Brand Name:	DONJOY
Certification:	CE/FDA/ISO/3A
Model Number:	NO.VAQ100Q1

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	USD10-100/SET
Packaging Details:	Carton, Wooden Case
Payment Terms:	T/T,L/C, Credit Card

Contact Now

Detailed Product Description

Brand:	DONJOY	SIZE:	1"-3"
Stanadard:	DIN,3A,SMS,ISO	Connection:	Welded, Clamped,Thread,
Polished:	Mirror, Matte	Material:	316L
Inlet Pressure:	8 Bar	Outlet Pressure:	0.3-5 Bar
KV VALUE:	4-70M3/h
Highlight:	pressure regulating valve , pressure release valve

1" 6Bar Pneumatic pressure release valve with Welded Connection

Quick Detail
Pressure Safety Valve, Over flow Valve ,Pressure adjustable
Type: Manula, Pnuematic

Specification

Product Name:	Pneumatic pressure release valve with Welded Connection, SS316L, 1", 6Bar
Valve Body Material:	SS304 or SS316L
Seal Material:	EPDM,NBR,FPM
Max.Working Pressure:	8Bar 116PSI
Max.WorkingTemperature:	120 degree C
Availably size:	DN25-DN80 or 1” - 3"
Availably connection:	Flange,Clamp,Welded
Availably standard:	DIN,INCH,IDF,3A,SMS
Operate:	Pneumatic ,Maual
Certificate:	FDA,CE

Applications:
1. Safety valve is used to protecting pipe,pump from over pressure
2. Sanitary and safe design is to prevent operation danger and equipments break down due to pressure
3. With sanitary design stainless steel, the valvei s best choicefor pretection equipments in diary ,food, beverage, pharmacy and fine chemical industries.

Operating Principle
1. Through the spring to adjustable the pressure.
2. When the pressure in the pipe exceeds to the specify pressure, the valve open automatically to make the liquid flow in order to reduce pressure.

Drawing of safety valve

1" 6Bar Pneumatic pressure release valve with Welded Connection 0

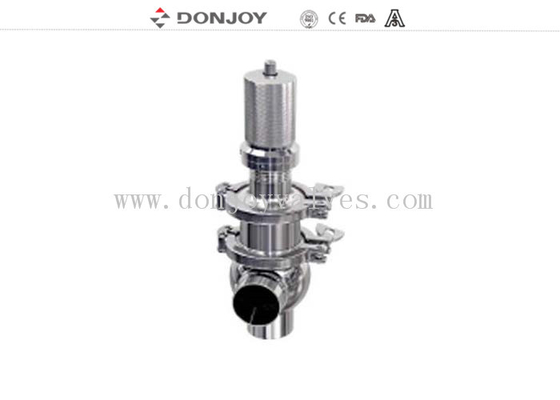

Safety valve products

1" 6Bar Pneumatic pressure release valve with Welded Connection 1
