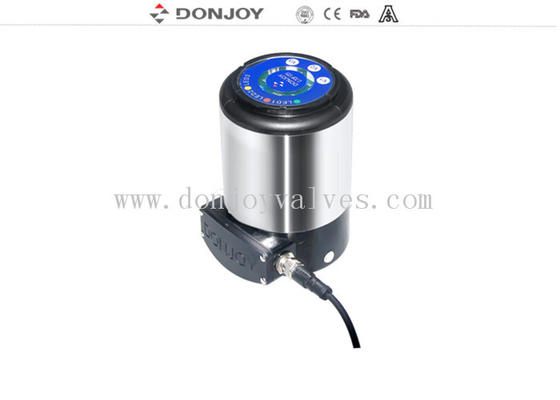

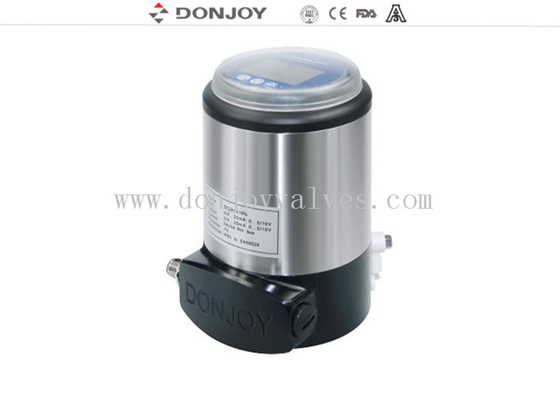

22PSI C Top DC 24V Pneumatic Valve Controller Open Close

22PSI C Top DC 24V Pneumatic Valve Controller Open Close

    • 22PSI C Top DC 24V Pneumatic Valve Controller Open Close
    • 22PSI C Top DC 24V Pneumatic Valve Controller Open Close
    • 22PSI C Top DC 24V Pneumatic Valve Controller Open Close
    • 22PSI C Top DC 24V Pneumatic Valve Controller Open Close
  • 22PSI C Top DC 24V Pneumatic Valve Controller Open Close

    Product Details:

    Place of Origin: CHINA
    Brand Name: DONJOY
    Certification: CE,3A,FDA
    Model Number: C-TOP-1421/1721

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: US $120 - 500 / Piece
    Packaging Details: carton box or wooden box
    Delivery Time: 200 Piece/Pieces per Month
    Payment Terms: T/T, LC, Credit Card
    Supply Ability: 1000pcs per month
    Contact Now
    Detailed Product Description
    Product Name: Controller Power: DC 24V
    Pneumatic Pressure: 1.5 Bar - 7 Bar (22PSI To 102PSI) Level Of Protection: IP67
    Operation Mode: Pneumatic Operation Working Pressure: 10bar
    High Light:

    DC 24V Pneumatic Valve Controller

    ,

    22PSI Pneumatic Valve Controller

    Sanitary food stainless steel equipment controllers C-TOP pneumatic control valve open and close



    SPECIFICATION

    Product Name

    Controller

    Medium

    Lubricated compressed air, inert gases

    Max. Working temperature

    70℃

    Working pressure

    1.5 bar - 7 bar (22PSI to 102PSI)

    Connector

    G1/8"

    Level of protection

    IP67

    Air flow

    200NL

    Stroke

    Min. 3mm; Max. 70mm

    Max. C - TOP units

    31 C - TOP units

    Connecting cable

    2m

    AS-I BUS

    max. length: 1m

    Function

    For controlling valve position

    Feature

    Inductive position sensor



    Model choosing table

                               Controller C-TOP 1421/1721 (Recommend version)
    22PSI C Top DC 24V Pneumatic Valve Controller Open Close 0 Input control Recommend actuator Output signal
    1 solenoid valve single acting pneumatic actuator PNP 2 postiion 4-20mA
    2 solenoid valves Double acting pneumatic actuator PNP 2 position 4-20mA
    3 solenoid valves for mixing proof valve PNP 3 position 4-20mA
    3 Solenoid valves for mixing-proof valve PNP 4 position (including 1pc external sensor) 4-20mA



                           Controller C-TOP 1421/1721 (Bus protocol version AS-I BUS-V3.0)
    22PSI C Top DC 24V Pneumatic Valve Controller Open Close 0 Input control Recommend actuator Output signal
    1 solenoid valve single acting pneumatic actuator PNP 2 postiion 4-20mA
    2 solenoid valves Double acting pneumatic actuator PNP 2 position 4-20mA
    3 solenoid valves for mixing proof valve PNP 3 position 4-20mA


    Applications

    C - TOP is a pneumatic controller that is designed to ensure an optimum control valve.

    It is compatible with most PLC automatic system. In the industry of food, beverage, pharmacy,

    it could be installed to all kinds of pneumatic valves such as mixture proof valve, butterfly valve, ball valve, diaphragm valve, reversing valve and globe valve etc.



    Design and features

    Connecting sensors with solenoid valve ( actuator ) easily, fastly and economically by AS - I BUS mastering.

    Since cables are largely decreased, installation and start up become more convenient.

    Besides, start time is shortened, and some hidden troubles in the installation can be avoided.Parts are the same as standard C - TOP. The only changed part is the built - in card,. AS - I insulation replacement connector and the cable connector itself.



    C - TOP Valve control unit - - 2014



    Displacement regulating version



    Model



    Sensor

    Solenoid valve



    Power



    Connection



    Remarks



    1421-05-S1-V1



          1



           1



    DC. 24V



    Cable connection

    Single acting



    1421-05-S1-V2



          1



           2

    DC. 24V

    Cable connection

    Double acting





    1421-05-S1-V3





          1





           3





    DC. 24V

    Cable connection

    Three effects

    (mixture proof valve)



    1421-05-S1-V1-AS



          1



           1



    DC. 24V



    AS-I BUS



    Single acting



    1421-05-S1-V2-AS



          1



           2



    DC. 24V



    AS-I BUS



    Double acting





    1421-05-S1-V3-AS





          1





           3





    DC. 24V





    AS-I BUS



    Three effects

    (mixture proof valve)



    Mechanical regulating version



    Model



    Sensor

    Solenoid valve



    Power



    Connection



    Remarks



    1421-05-S1-V1-M



          1



           1



    DC. 24V



    Cable connection



    Single acting



    1421-05-S1-V1-M



          2



           1



    DC. 24V



    Cable connection



    Single acting



    1421-05-S1-V2-M



          2



           2



    DC. 24V



    Cable connection



    Double acting





    1421-05-S1-V3-M





          3





           3



    DC. 24V





    Cable connection



    Three effects (mixture proof valve)



    1421-05-S1-V1-AS-M



          1



           1



    DC. 24V



    AS-I BUS



    Single acting



    1421-05-S1-V1-AS-M



          2



           1



    DC. 24V



    AS-I BUS



    Single acting



    1421-05-S1-V2-AS-M



          2



           2



    DC. 24V



    AS-I BUS



    Double acting





    1421-05-S1-V3-AS-M





          3





           3





    DC. 24V





    AS-I BUS



    Three effects (mixture proof valve)

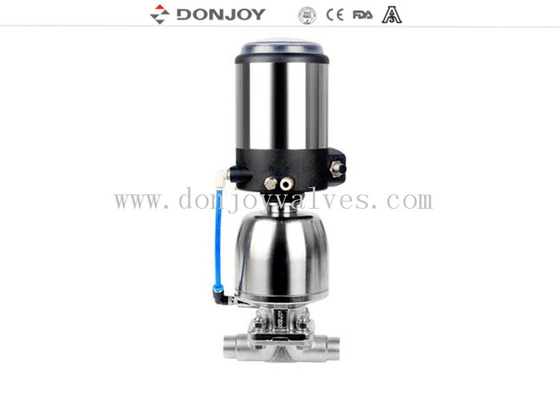

    Installation



    22PSI C Top DC 24V Pneumatic Valve Controller Open Close 2

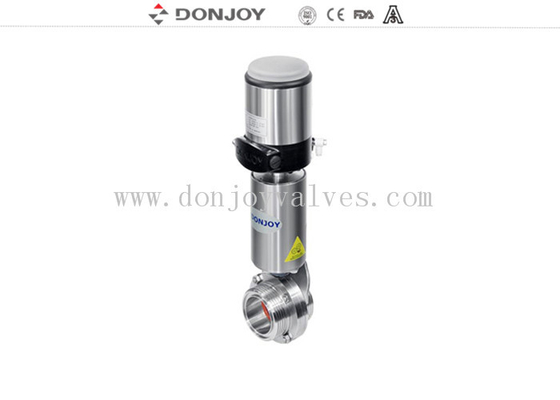

    Product display


    22PSI C Top DC 24V Pneumatic Valve Controller Open Close 3
