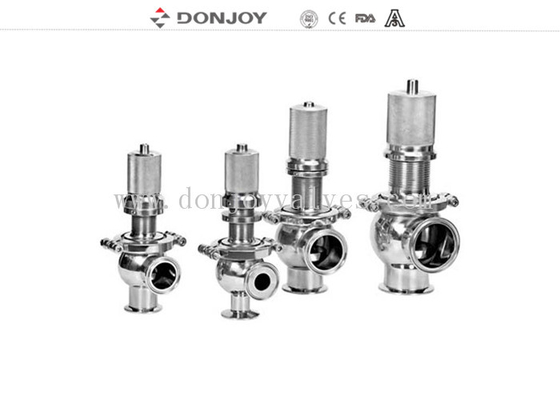

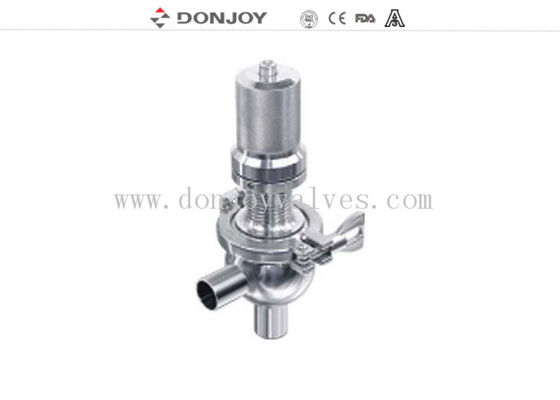

2" SS316Lmanual pressure safety valve , Relief Valve with Weld Connection

2" SS316Lmanual pressure safety valve , Relief Valve with Weld Connection

    • 2"  SS316Lmanual pressure safety valve , Relief Valve with Weld Connection
    • 2"  SS316Lmanual pressure safety valve , Relief Valve with Weld Connection
  • 2"  SS316Lmanual pressure safety valve , Relief Valve with Weld Connection

    Product Details:

    Place of Origin: CHINA
    Brand Name: DONJOY
    Certification: CE/FDA/ISO/3A
    Model Number: No.VAQ100S1

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: USD10-100/set
    Packaging Details: Carton, Wooden Case
    Payment Terms: T/T,L/C, Credit Card
    Contact Now
    Detailed Product Description
    Name: Pressure Safety Valve SIZE: 1"-3"
    Stanadard: DIN,3A,SMS,ISO Connection: Welded, Clamped,Thread,
    Polished: Mirror, Matte Inlet Pressure: 8 Bar
    Outlet Pressure: 0.3-5 Bar KV Value: 4-70 M3/h
    High Light:

    pressure regulating valve

    ,

    air release valve

    2" SS316Lmanual pressure safety valve , Relief Valve with Weld Connection


    Quick Detail
    Pressure Safety Valve, Over flow Valve
    Type: Manula, Pnuematic



    Specification

    Product Name:

    2" SS316Lmanual pressure safety valve, Relief Valve with

    Weld Connection

    Valve Body Material:

    SS304 or SS316L

    Seal Material:

    EPDM,NBR,FPM

    Max.Working Pressure:

    8Bar 116PSI

    Max. Working Temperature:

    120 degree C

    Availably size:

    DN25-DN80 or 1” - 3"

    Availably connection:

    Flange,Clamp,Welded

    Availably standard:

    DIN,INCH,IDF,3A,SMS

    Operate:

    Pneumatic ,Maual

    Certificate:

    FDA,CE



    Applications:
    1. Safety valve is used to protecting pipe,pump from over pressure
    2. Sanitary and safe design is to prevent operation danger and equipments break down due to pressure
    3. With sanitary design stainless steel, the valvei s best choicefor pretection equipments in diary ,food, beverage, pharmacy and fine chemical industries.



    Technical Specifications

    ◆Size:1"-4",DN25-DN100
    ◆KV Value:8.5-180m3/h
    ◆Max. temperature:-20℃到150℃(depend on seal material)
    ◆Set pressure:(0-3bar/0-6bar/6-10bar)
    ◆Material:304/316L
    ◆Certification:
    safety valve manufacturing license for special

    Operating Principle:
    1. Through the spring to adjustable the pressure.
    2. When the pressure in the pipe exceeds to the specify pressure, the valve open automatically to make the liquid flow in order to reduce pressure.



    Drawing of safety valve

    2"  SS316Lmanual pressure safety valve , Relief Valve with Weld Connection 0



    Products

    2"  SS316Lmanual pressure safety valve , Relief Valve with Weld Connection 1

    Type: 6Bar safety valve,  Manual safety Valve,  Pressure safety valve
