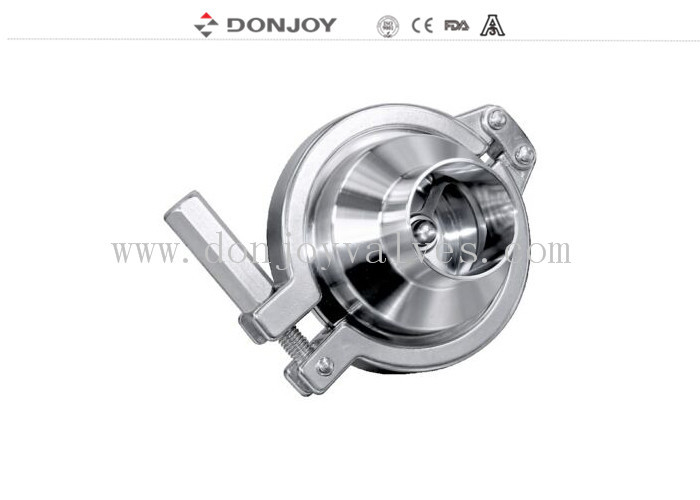

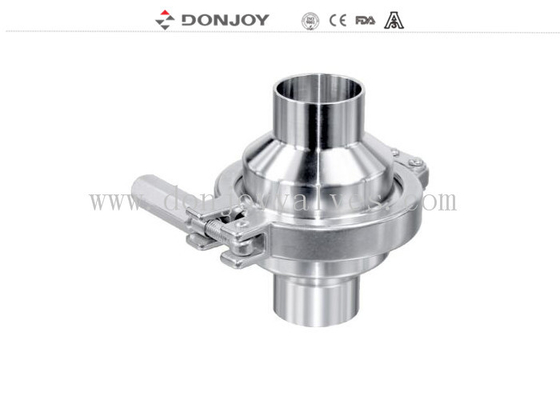

4 Inch Sanitary Non Retention SS304 Hydraulic Check Valves

4 Inch Sanitary Non Retention SS304 Hydraulic Check Valves

    • 4 Inch Sanitary Non Retention SS304 Hydraulic Check Valves
    • 4 Inch Sanitary Non Retention SS304 Hydraulic Check Valves
  • 4 Inch Sanitary Non Retention SS304 Hydraulic Check Valves

    Product Details:

    Place of Origin: CHINA
    Brand Name: DONJOY
    Certification: CE,3A,FDA
    Model Number: NO.VZH110A1-2016

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiation
    Packaging Details: carton box
    Payment Terms: T/T, LC, Credit Card
    Contact Now
    Detailed Product Description
    Brand: DONJOY SIZE: 4 Inch
    Stanadard: DIN,3A,SMS,ISO Connection: Welded
    Polished: Mirror, Matt Gasket: NBR
    Max. Pressure: 10bar
    High Light:

    SS304 Hydraulic Check Valves

    ,

    Sanitary Hydraulic Check Valves

    ,

    Non Retention Hydraulic Check Valves

    4 Inch Weld sanitary non retention Valves/SS304 hydraulic Check valves



    Quick Detail:

    Hydraulic Check Valves

    Easy disassemble

    Small-size construction

    DIN11851 connection (standard)



    Specification

    Product Name: 4 Inch Weld sanitary non retention Valves/SS304 hydraulic Check valves
    Valve Body Material: SS304 or SS316L
    Seal Material: EPDM
    Max. Working Pressure: 10Bar
    Opening pressure: 0.1-0.3bar
    Max. Working Temperature: 120 degree C
    Availably size: DN25/1" to DN100/4"
    Availably connection: Thread,Weld,Clamp
    Availably standard: DIN,SMS,3A
    Certificate: FDA,CE



    Option of Check Valve

    1. Connection: Clamp, Weld, Thread

    2. SEAL: NBR, FPM,PTEF all according to FDA177.2600

    3. Standard: DIN,SMS, RJT, IDF, ISO, 3A



    Drawing

    4 Inch Sanitary Non Retention SS304 Hydraulic Check Valves 0



    Packaging Details

    Bubble pack for each valve.

    Outside packing are carton or plywood cases.

    Or as per the request of customers.



    Operating Principle

    The valve opens when the pressure of the fluid exceeds the pressure to spring, When the two pressures are equalised, the valve closes, A stronger counter – pressure also makes the valve close





    What Are Sanitary Valves Used For?

    Sanitary valves are two-port valves that feature two separate openings on their body. Fluid enters one opening and exits from the other. These valves help with applications that require liquids to flow in only one direction.

    Sanitary valves come in two forms: horizontal and vertical.

    Horizontal valves are suited to horizontal lines that need self-draining valves

    Vertical valves can be used in either vertical or horizontal installations; in horizontal applications, vertical valves help when self-draining valves can’t maintain pump prime and temperature continuity

    In the case of horizontal spring-check valves, product flow pushes a disc in the valve away from the seat. When forward flow pressure is removed, the electropolished spring will return the disc to its original position and hold it against the seat to keep it closed. Backflow pressure will also force the disc into the closed position.

    Check valves help in scenarios that require the evacuation of process pipelines. This can occur for a host of reasons, especially those involving product recovery or drainage. Some applications may also require air agitation on the products in the pipelines or in the tanks they lead to. Check valves can accomplish this.



    Things to Keep in Mind When Installing a Sanitary Check Valve



    – Ball Check Valve –

    In a vertical setting, the product has to flow from bottom to top so that gravity can push the ball in and out of the seat.In a horizontal setting, the curved portion of the valve needs to be upright and at 90 degrees to the pipe. This makes sure that the valve is free-draining and the ball sits properly.

    – Disk Check Valve –

    Disk Check Valves are not free-draining in a vertical setting. Therefore, for them to be free-draining, they need to be in a horizontal position.
