    Product Details:

    Place of Origin: CHINA
    Brand Name: DONJOY
    Certification: CE/FDA/ISO/3A
    Model Number: NO.MINI-VAQ100S1

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: USD 20-100/set
    Packaging Details: Carton, Wooden Case
    Payment Terms: T/T,L/C, Credit Card
    Supply Ability: 1000 set /day
    Contact Now
    Detailed Product Description
    Brand: DONJOY SIZE: 1", 1.5",2".DN25-DN50
    Stanadard: DIN,3A,SMS,ISO Connection: Welded, Clamped,Thread,
    Polished: Mirror, Matte Highest Pressure: 10 Bars
    High Light:

    pressure release valve

    ,

    air release valve

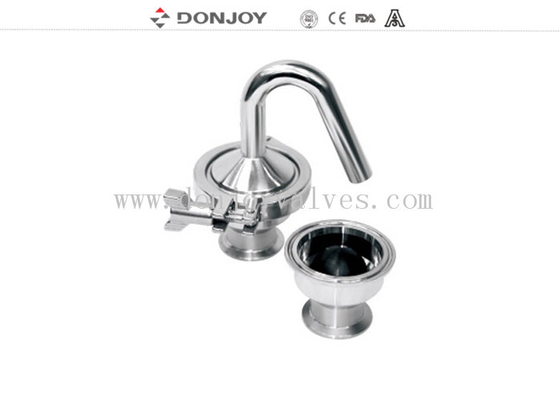

    Air release valve , automatic air-relief valve stainless steel



    Exhaust valve is a reliable automatic exhaust valve, on-demand to clear the air, mounted vertically on top of the pipe or vessel, or at the inlet of the pump at the installation.
    Here below are two examples of applications.
    Example 1:Air cavity is formed due to the installation of the pipeline, and thus need to release air. In this case the valve is installed at the top of the pipe.
    Example 2:Discharge air at inside of the pipeline of the pump. When the pump opened the air will be automatically discharged and forming a vacuum.In order to avoid the air mixed with products and the appearance of cavitation. In this case, the valve is installed in front of the pump, on top of the inlet pipe



    Quick Detail:

    Exhaust Valve,Air release Valve

    Type: Ball, Clamped,



    Specification

    Product Name:

    donjoy Air release Valve, automatic air-relief valve

    Valve Body Material:

    SS304 or SS316L

    Seal Material:

    EPDM,NBR,FPM

    Max.Working Pressure:

    10 bar

    Max. Working Temperature:

    90 degree C

    Available size:

    1" 1.5"

    Available connection:

    Flange,Clamp,Welded

    Available standard:

    DIN,INCH,IDF,3A,SMS

    Operate:

    Pneumatic,Manual

    Certificate:

    FDA,CE



    Applications:
    1. Safety valve is used to protecting pipe,pump from over pressure
    2. Sanitary and safe design is to prevent operation danger and equipment break down due to pressure
    3. With sanitary design stainless steel, the valve i
    s the best choice for protection equipment in dairy ,food, beverage, pharmacy and fine chemical industries.


    Operating Principle
    1. Through the spring to adjustable the pressure.
    2. When the pressure in the pipe exceeds to the specify pressure, the valve open automatically to make the liquid flow in order to reduce pressure.

    3.Air Release valve is a double-seat valve with a freely movable plastic ball. The ball, which is lighter than water, According the conditions of pressure to close the upper or lower valve seat.
