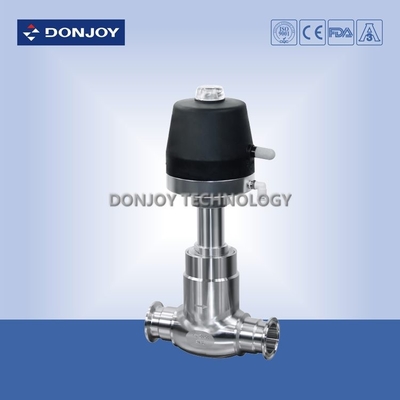

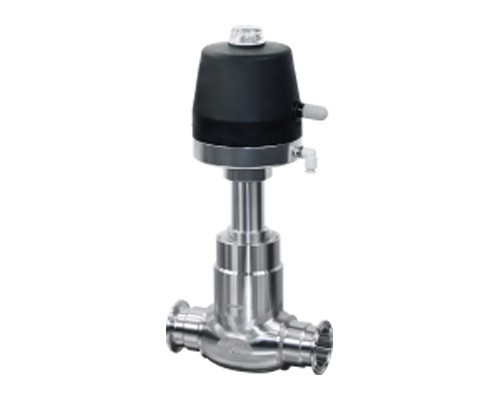

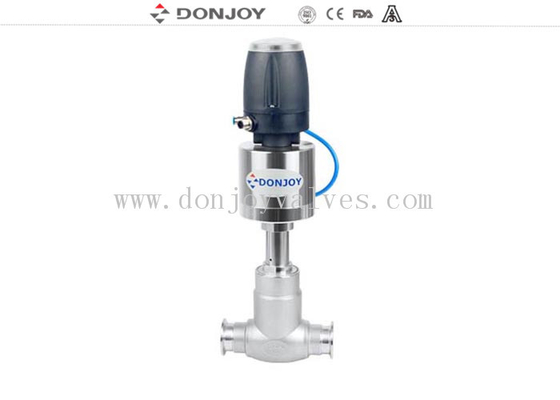

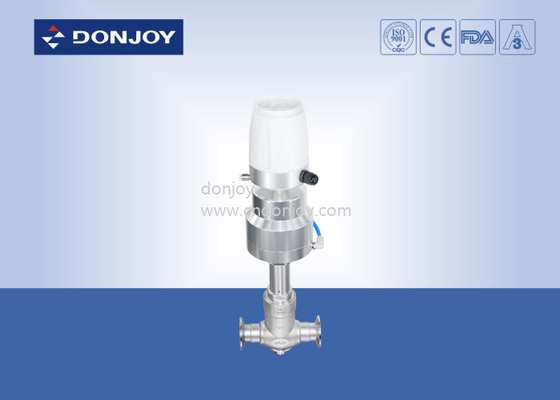

Control Head / Manual Angle Globe Valves DONJOY Brand CE FDA Certification
Detail:
High purity adjust globe valve
Connection: Clamped, Thread, Welding,Flange
Standard: DIN,3A,SMS,ISO,IDF, RJT..
Features
1. Manually pneumatic interchangeable
2. PED/97/23/EC Certification
3. PTFE FDA 177.5500
specifications:
| Product Name: |
1" to 4",Plastic pneumatic globe valve, Clamped Connection SS304 |
| Valve Body Material: |
CF8M/316L,CF8/304 |
| Seal Material: |
EPDM |
| Working Pressure: |
8 Bar, 10Bar(option). |
| Max. Working Temperature: |
120 degree ,180Degree(Option) |
| Availably size: |
DN10-DN100,1/2"-4" |
| Availably connection: |
Thread,Weld,Clamp,BSP/BSP/NPT |
| Operate: |
Pneumatic ,Manual, Control Head |
| Certificate: |
FDA,CE,ISO |
Operation Options for Globe Valve
1. Manual:Plastic handwheel, Stainless steel Wheel,Fine-turning hand wheel
2. Pnuematice:Plastic and stainless steel actuators
3. Control Head: Valve Positioner, Process controller, C-Top, Mini C-Top,Position Sensor
Applications:
Globe valve is a general switch in the automactic control system is widely used in printing, dyeing,bleaching, food,washing, chemical, water treatment,pharmacy and other automated machinery and equipment. It is featured with water hammer protection. Noise-free, reliable sealing performance.
Operationg Principles
1. Globe valve are operated automatically by a single-acting or a double-acting pneumatic acutor. By supplyiing compressed air, the shaft is moved to place the valve in the “open” or “closed” position.
2. The 180degree rotation of the pneumatic cylinder to realize the interchange of normally open and normally closed.
