    Product Details:

    Place of Origin: CHINA
    Brand Name: DONJOY
    Certification: CE,3A,FDA

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: US $333 - $777 / Piece
    Packaging Details: carton box
    Delivery Time: according to order
    Payment Terms: T/T, LC, Credit Card
    Supply Ability: 1000 Piece/Pieces per Month
    Contact Now
    Detailed Product Description
    Item: Horizontal Aluminum Pneumatic Actuator Power: DC24V
    Operation: Air And Eeletric Pressure: 10 Bar
    Switch: Optical ON / OFF Controller: Intelligent
    High Light:

    digital valve positioner

    ,

    double acting positioner

    DC24V Horizontal Aluminum Pneumatic Actuator Air Cylinder Single Acting Actuator

    Specification
    Max Air pressure: 8Bar,
    Mix Air Pressure: 2.5Bar
    Working Temperature: -15 Degree to + 150 Degree
    Air Supply : Clean Air after dry Or filtration, Non-corrosive Gas

    Single acting or double acting

    Single acting: Air spring

    Double acting:  Air-air

    Air cylinder pneumatic actuator

    Horizontal pneumatic actuator


    Material
    Aluminum
    Application: Use for different valves to control the valve open and closed
    Action: Double Action and Single Action
    Size : DJ052/ DJ063/DJ075/ DJ083/DJ092/DJ0105/ DJ125
    Different valve with different Torque to choose the Actuator


    Structure
    With the electric control unit.



                                      Double acting pneumatic actuator Torque Table
    Size Torque(N.M)                       Recommend valve size
    Butterfly valve Ball valve 3 way ball valve Industrial valve
    DJ052 21

    DN10-DN50,

    0.5"-2"

    DN10-DN32,

    0.5"-1.25"

    N/M

    N/M

    DJ063 37

    DN65-DN80,

    2.5"-3.5"

    DN40-DN50,

    1.5"-2"

    DN25-DN32,

    1"-1.25"

    DN25,1"
    DJ075 59 DN100,4" 2.5"

    DN40-DN50,

    1.5"-2"

    DN32-DN40,

    1.25"-1.5"

    DJ083 74

    DN125-DN150,

    5"-6"

    DN65,3" DN65,2.5" DN50,2"
    DJ092 114 DN200,8" DN80 3" DN65,2.5"
    DJ105 170

    DN250-DN300,

    10"-12"

    DN100,4" DN80 DN80,3"
    DJ125 292 N/M DN125,5" DN100,4" DN100,4"
    DJ140 439 N/M DN150,6" N/M DN150,6"
    DJ160 669 N/M DN200,8" N/M DN200,8"





                                  Single acting pneumatic actuator Torque Table
    Size Torque(N.M)                     Recommend valve size
    Butterfly valve Ball valve 3 way ball valve Industrial valve
    DJ052-S 12.5-8.5

    DN10-DN32,

    0.5"-1.25"

    DN10-DN15,

    0.5"-0.75"

    N/M

    DN10-DN15,

    0.5"-0.75"

    DJ063-S 21.2-13.7

    DN40-DN50,

    1.5"-2"

    DN25,1"



    DN25,1"

    DN25,1"
    DJ075-S 292.2-21.2 DN65,2.5"-3" DN32,1.25"

    DN32,1.25"



    DN32-1.25"

    DJ083-S 46.5-31.6

    DN80,3.5"

    DN401.5" DN40,1.5" DN40,1.5"
    DJ092-S 69.3-46.7 DN100,4" DN50,2" DN50,2" DN50,2"
    DJ105-S 99-63

    DN200-DN250



    DN65,2.5" N/M DN65,2.5"
    DJ125-S 159-105 N/M DN80,3" DN80,3" N/M
    DJ140-S 260-172 N/M DN100,4" DN100,4" DN80,3"
    DJ160-S 422-279 N/M N/M N/M DN100,4"




    Product data

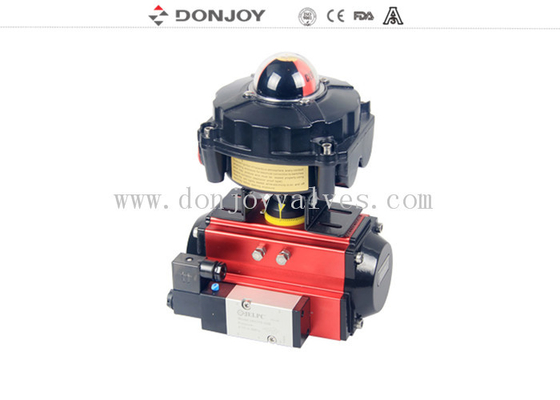

    DC24V Horizontal Aluminum Pneumatic Actuator Air Cylinder Single Acting Actuator 0

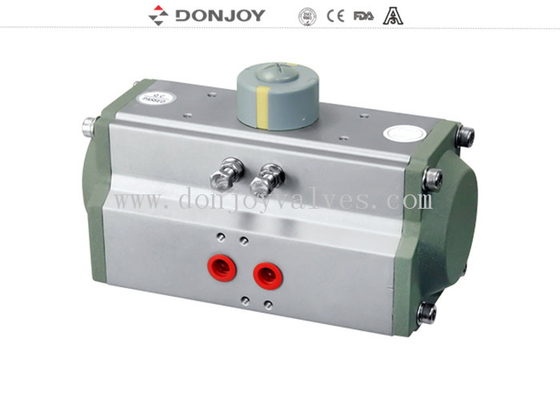

    DC24V Horizontal Aluminum Pneumatic Actuator Air Cylinder Single Acting Actuator 1



    Product display

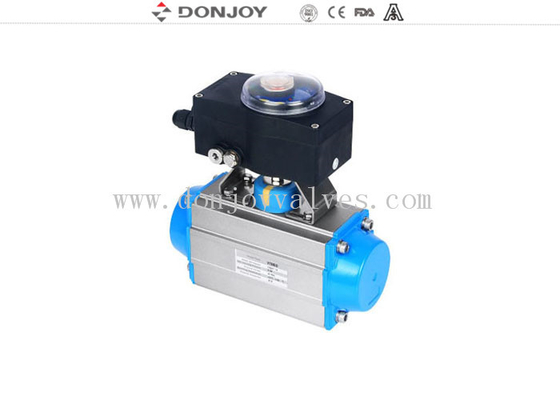

    DC24V Horizontal Aluminum Pneumatic Actuator Air Cylinder Single Acting Actuator 2

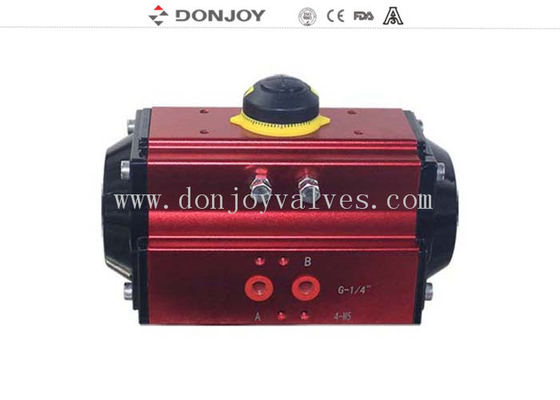

    DC24V Horizontal Aluminum Pneumatic Actuator Air Cylinder Single Acting Actuator 3

    DC24V Horizontal Aluminum Pneumatic Actuator Air Cylinder Single Acting Actuator 4
