DONJOY Top Quality ON/OFF Valve Auto Electrical DC24V Stainless Steel Intelligent Valve Positioner

Large Image : DONJOY Top Quality ON/OFF Valve Auto Electrical DC24V Stainless Steel Intelligent Valve Positioner

Product Details:

Place of Origin:	CHINA
Brand Name:	DONJOY
Certification:	CE,3A,FDA
Model Number:	IL-TOP-S

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	US $600 - 1,000 / Piece
Packaging Details:	carton box
Delivery Time:	200 Piece/Pieces per Month
Payment Terms:	T/T, LC, Credit Card

Contact Now

Detailed Product Description

Product Name:	Positioner	Pneumatic Pressure:	4-7bar
Level Of Protection:	IP67	Feature:	Flow Controller
Operation interface::	LCD Display	Working Pressure:	10bar
Highlight:	digital valve positioner , double acting positioner

DONJOY Top Quality ON/OFF Valve Auto Electrical DC24V Stainless Steel Intelligent Valve Positioner

SPECIFICATION

Product Name	Intelligent Valve Positioner of Square Type
Power	DC.24V
Installation	Actuators of angular travel could be offered.
Work Pressure	10 bar
Pneumatic pressure	4-7 bar
Material	SS304 / 316
Working temperature	-10℃ ~ 130℃ (-10℃ ~ 150℃ for angle seat valve and globe valve)
Level of protection	IP67
Standard function	0/4-20mA to 0-5/10V signal input
Optional function	0/4-20mA, 0-5/10V position feedback output
Optional function	Device Net But Control
Operation interface	LCD display
Function	Flow control
Type	Square model

Function feature
Certification of explosion protection: EXD Ⅱ BT4
Level of protection: IP67
Signal input: 0-4/20mA, 0-5/10V
Signal feedback: 0-4/20mA, 0-5/10V
BUS protocol: DEVICE NET BUS

Technical feature
The control could be used as a positioner or process controller.
As a positioner, it could set the valve position according to set point.
As a process controller, MPU will be received the signal from control by comparing setting position value of valve with actual position of valve, through PIC control algorithm, process controller will drive the valve to the exact target positioner of valve.
The controller is composed of MPU, detection unit by controlling signal, position detector, LCD display, keyboard and piezoelectric valve etc..

Installation
The actuators of angular travel could be offered, such as butterfly valve, ball valve and the valves etc..
Specification: 1 inch - 12 inch, DN25 - DN200

Order information
IL-TOP-S Square Controller

Model	Feature	Position feedback	Description
IL-TOP-S-001-M	Positioner + Process control	4-20mA/0-5/10V	Single-acting
IL-TOP-S-002-M	Positioner + Process control	4-20mA/0-5/10V	Double-acting
IL-TOP-S-001	Positioner + Process control	NO	Single-acting
IL-TOP-S-002	Positioner + Process control	NO	Double-acting
IL-TOP-S-001-BUS	Positioner + Process control + BUS		Single-acting + BUS
IL-TOP-S-002-BUS	Positioner + Process control + BUS		Double-acting + BUS

IL-TOP-S Square Controller (Explosion Protection: EXD Ⅱ BT4)

Model	Feature	Position feedback	Description
IL-TOP-S-001-M-EX	Positioner + Process control	4-20mA/0-5/10V	Single-acting - Explosion levels
IL-TOP-S-002-M-EX	Positioner + Process control	4-20mA/0-5/10V	Double-acting - Explosion levels
IL-TOP-S-001-EX	Positioner + Process control	NO	Single-acting - Explosion levels
IL-TOP-S-002-EX	Positioner + Process control	NO	Double-acting - Explosion levels
IL-TOP-S-001-BUS-EX	Positioner + Process control + BUS		Single-acting, BUS - Explosion protection
IL-TOP-S-002-BUS-EX	Positioner + Process control + BUS		Double-acting, BUS - Explosion protection

Product display

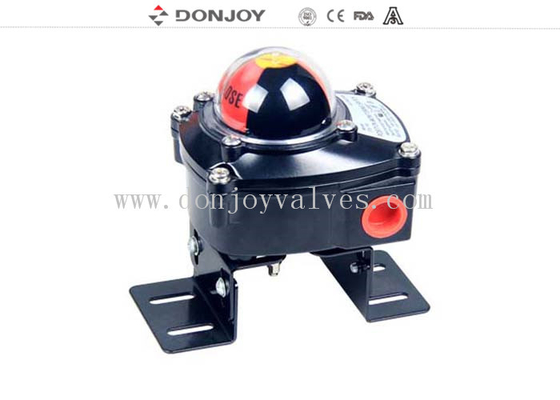

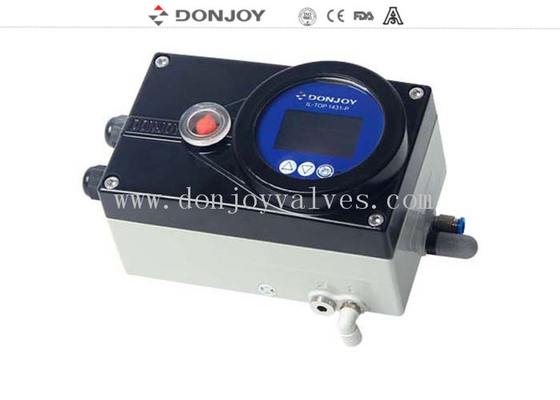

DONJOY Top Quality ON/OFF Valve Auto Electrical DC24V Stainless Steel Intelligent Valve Positioner 0

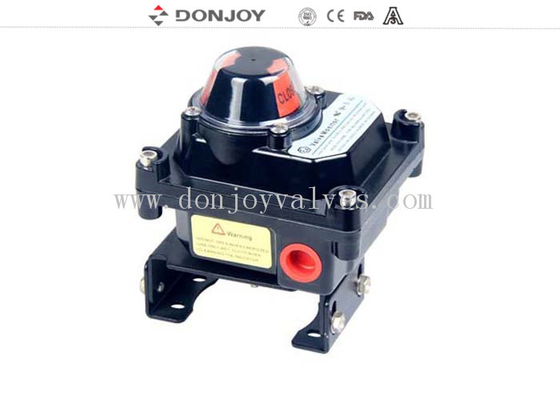

DONJOY Top Quality ON/OFF Valve Auto Electrical DC24V Stainless Steel Intelligent Valve Positioner 1

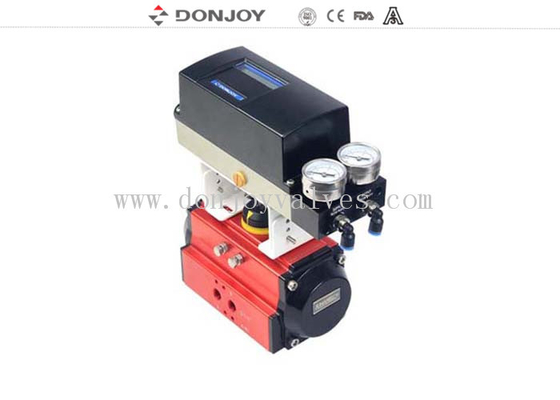

DONJOY Top Quality ON/OFF Valve Auto Electrical DC24V Stainless Steel Intelligent Valve Positioner 2
