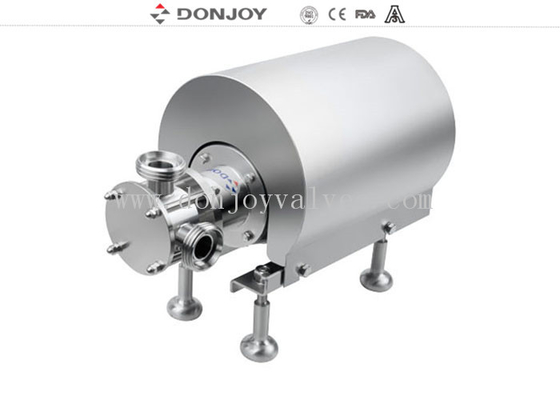

RX Flexibility Impeller High Purity Pumps Achieve Clockwise And Counterclockwise Rotation
Description
RX flexibility impeller pump
It can achieve clockwise and counterclockwise rotation.
It can be extracted and transferred liquid when liquid level lower than pump inlet enven max.5M
The pump is designed to transport and transfer low viscosity and high viscosity media and materials contains particles or gases
Specifications
|
Product Name:
|
316L Sanitary Flexible Impeller High Purity Pump - RX - series
|
|
Pump Body Material:
|
SS304/SS316L/1.4301/1.4404
|
|
Seal Material:
|
EPDM (Standard, FDA approval) FPM(Viton) and NBR
|
|
Max. Flow:
|
20m3/h
|
|
Max. Head:
|
80H(m)
|
|
Max. Working Pressure:
|
4 bar
|
|
Max. Working Temperature:
|
80 °C
|
|
Mechanical seal:
|
SIC/SiC/EPDM(Standard), C/SIC, TC/TC
|
|
Sealing type:
|
Flushed double mechanical seal/single mechanical seal(standard)
|
|
Motor power:
|
0.5kw, 0.75kw, 1.1kw, 1.5kw, 2.2kw, 3.0kw,
|
|
Voltage:
|
110V, 220V, 380V
|
|
Motor:
|
ABB/domestic/SIEMENS
|
|
Motor Frequency:
|
50HZ, 60HZ
|
|
Surface treatment:
|
Ra≤0.6μm, EP=Ra0.4μm
|
|
Model:
|
RX
|
|
Availably connection:
|
Tri-Clamp, Thread, Flange
|
|
Availably standard:
|
DIN, SMS, 3A, RJT, ISO/IDF
|
|
Operated:
|
Electic
|
|
Low discharge option :
|
Low discharge/diaphragm valve/ball valve/butterfly valve
|
|
Certificate:
|
3-A-02-11 NO.1759, FDA 177.2600 CE-MD/06-42 NO.705201402401-00
|
|
Application scope:
|
Dairy,food, beverage, pharmacy, cosmetic, etc
|
|

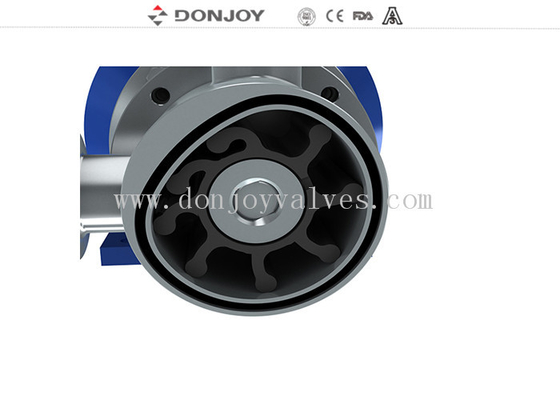

Impeller materials
|
NBR, EPDM, VITON
|
|
Packaging Details:
|
Plywood case or customerized. Or as per the request of customers.
|
|
Delivery details:
|
Usually within 20 days after receiving T/T down payment.
|
Technical features:
Max flow: 8m3/h
Max pressure: 4bar
Max suction: 5 M
Max Temperature: 80°C
Surface treatment: Ra≤0.6μm, EP=Ra0.4μm
Materials:
• Body and Fan: AISI 316L
• Gasket: EPDM (suitable for food)
• Mechanical shaft seal
RX application of sanitary
Hygiene is of paramount importance in the processing of food and dairy products. The RX is designed with polished stainless steel and food or milk grade impeller to meet rigorous hygiene requirement. The stainless steel sanitary RX is easy to clean, which use unsoltted shaft seal that dose not cause liquid deposition and the used impeller material has been tested and approved. and is certified to comply with FDA regulations. Typical products suitable for delivery by the pump including: Milk, skimmed milk, cream, curds,youghurt, whey, lumps, syrup, condiments, gelatin, honey, jam, ointment, canned food, beverage, wine, beer, fruit juice and spices.
RX application of Industry
RX flexible impeller pump also could be applied to the situation without sanitary requirement, however, it is still as main stainless steel pump.RX stainless steel pump is particularly suitable for conveying acidic liquids, clays, concrete additives, detergents, dyes, film processing chemicals, ink and sewage treatment cosmetic are also pumped in this type of pump frequently, including the following products: soap,shampoo, detergent, and moisturizer.
maintain

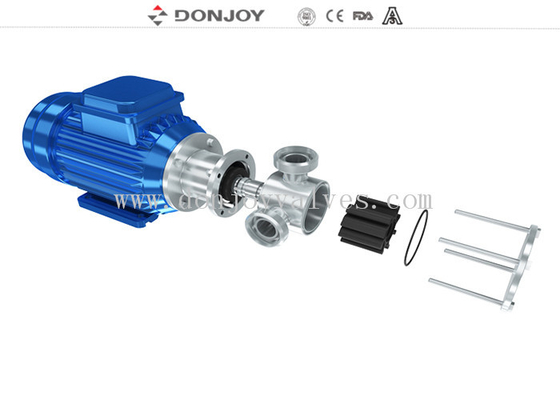

The pump cover is fixed by four loking nuts. It just need to disassembly pump cover when the rotor and shaft seal are completely overhauled, that makes pump very practical and downtime will be shortened
Slection Table
Drawing
Connection way
Flow rate and head
