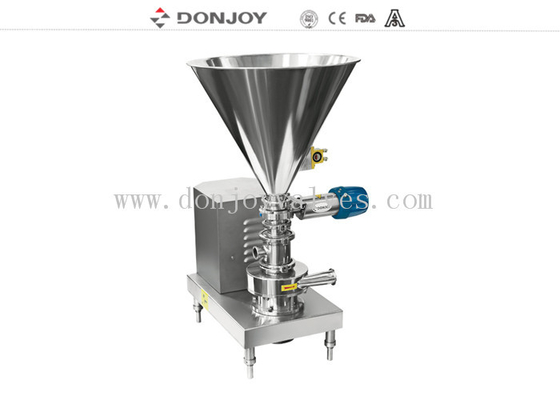

HHQ-20 Blender Mixing High Purity Pumps / Food Grade Transfer Pump 45L Hopper

HHQ-20 Blender Mixing High Purity Pumps / Food Grade Transfer Pump 45L Hopper

large.img.alt

Product Details:

Place of Origin: CHINA
Brand Name: DONJOY
Certification: CE,3A,FDA
Model Number: HHQ-20

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Wooden box
Delivery Time: 15-30 working days
Payment Terms: T/T, LC, Credit Card
Supply Ability: 20 sets 30 working days
Contact Now
Detailed Product Description
Materials: Stainless Steel 304 Flow: 20T/4.0KW
Mechanical: Single Seal Liquid Inlet: 1.5" Ferrule
Hopper: 45L Motor: 380V/50HZ
Item Name: Mixing Pump (blender)
High Light:

lobe rotary pump

,

high pressure pumps

HHQ-20 Blender Mixing High Purity Pumps for fluid and transfer

Specifications

Product Name:

HHQ-20, SS316L Blender, Mixing pump for mxing the powder and fluid and transfer

Material:

SS304 / SS316L / 1.4301 / 1.4404

Seal Material:

EPDM (Standard, FDA approval)

Max. Flow:

60m3/h / 264 GPM

Max. hopper volume:

65L

Max solid suction volume:

9000kg/h

Mechanical seal:

SIC/SiC/EPDM(Standard)

Optional: Cleanable and double mechanical seal with cooling system
Connecting: Pneumatic valve

Motor power:

1.1kw, 1.5kw, 2.2kw

Sealing option:

Sanitary single mechanical seal/Double mechanical seal with cooling system

Voltage:

110V, 220V, 380V

Motor:

ABB 50hz/60hz

Surface treatment:

Inner polished and Sandblast outside

Availably connection:

Tri-Clamp, Thread

Availably standard:

DIN, SMS, 3A, RJT, ISO/IDF

Operated:

Electic

Availably options:

Pneumatic actuator valve, 60°, hopper, sreen in the mixing chamber, drainage, sensor, vibrator

Certificate:

3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO9001/2008

Application scope:

Dairy, food, beverage, pharmacy, cosmetic, etc

Packaging Details:

Plywood case or customerized. Or as per the request of customers

Delivery details:

Usually within 20 days after receiving T/T down payment



Description Option
1. Pneumatic valve
2. High and low level sensors
3. vibrator: pneumaticaor electric

Application
1 .preparation of sugar syrup, sorbitol, glucose,lctose and derivatives
2. reconstitution of powdered milk
3. dissolution of coco and /or sugar in milk
4. reconstitution of powdered whey
5. preparation of flour and starch slurries
6. preparation of brines
7. pre-mixtures of yogurt and other milk-based desserts
8. dissolution of bentoites for wine filtering
9. dissolution of casein and caseinates in the cheese-making industry
10. Preparation of pesticiddes and fetlilizer.



Competitive Advantage
“DONJOY is the only company that pass nine series of products by American 3A certification organization in Asian sanitary pumps and valves field.”
