Intelligent valve Positioner control unit for mini size regulating valves

Intelligent valve Positioner control unit for mini size regulating valves

    • Intelligent valve Positioner control unit for mini size regulating valves
    • Intelligent valve Positioner control unit for mini size regulating valves
    • Intelligent valve Positioner control unit for mini size regulating valves
  • Intelligent valve Positioner control unit for mini size regulating valves

    Product Details:

    Place of Origin: CHINA
    Brand Name: DONJOY
    Certification: CE,3A,FDA
    Model Number: C-TOP-1881

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: US $600 - 1,000 / Piece
    Packaging Details: carton box
    Delivery Time: 200 Piece/Pieces per Month
    Payment Terms: T/T, LC, Credit Card
    Contact Now
    Detailed Product Description
    Product Name: Intelligent Control Unit Power: DC.24V
    Pneumatic Pressure: 4-7bar Level Of Protection: IP67
    Working Pressure: 10bar Operation: Pneumatic
    High Light:

    digital valve positioner

    ,

    double acting positioner

    Intelligent valve Positioner control unit for mini size regulating valves



    Technical Feature

    1 Input: PNP24VDC

    2.Feedback output:PNP DC24V& 4-20mA

    3.power Supply: DC24V±10%

    4.Bus Communication:AS-I BUS

    5.Accuracy: Repeat positioning accuracy of ≤0.2%

    6.Adjusting: Single button auto-adjusting function

    7.Operation mode: Manual/Automatic operation

    8.Leakproof diagnostic Function

    9.Display: two-section Light Color  open: Green/Red, Close:red/Green

    10.Stroke Range: 0-60MM/0-30MM



    SPECIFICATION

    Product Name

    Intelligent valve positioner

    Medium

    Lubricated compressed air, inert gases

    Max. Working temperature

    70℃

    Working pressure

    1.5 bar - 7 bar (22PSI to 102PSI)

    Connector

    G1/8"

    Level of protection

    IP67

    Stroke

    Min. 3mm; Max. 70mm

    Max. C - TOP units

    31 C - TOP units

    Connecting cable

    2m

    AS-I BUS

    max. length: 1m

    Operation mode

    Pneumatic operation

    Certificate

    3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO



    Applications

    C - TOP is a pneumatic controller that is designed to ensure an optimum control valve.

    It is compatible with most PLC automatic system. In the industry of food, beverage, pharmacy,

    it could be installed to all kinds of pneumatic valves such as mixture proof valve, butterfly valve,

    ball valve, diaphragm valve, reversing valve and globe valve, etc.



    Design and features

    Connecting sensors with solenoid valve ( actuator ) easily, fastly, and economically by AS - I BUS mastering.

    Since cables are largely decreased, installation and start-up become more convenient.

    Besides, start time is shortened, and some hidden troubles in the installation can be avoided.

    Parts are same as standard C - TOP. The only changed part is the built - in card,.

    AS - I insulation replacement connector and the cable connector itself.



    C - TOP Valve control unit - - 2014 Displacement regulating version



    Model



    Sensor

    Solenoid valve



    Power



    Connection



    Remarks

    1421-05-S1-V1



          1



            1



    DC. 24V



    Cable connection



    Single acting



    1421-05-S1-V2



          1



            2



    DC. 24V



    Cable connection



    Double acting



    1421-05-S1-V3



          1



            3



    DC. 24V



    Cable connection



    Three effects (mixture proof valve)



    1421-05-S1-V1-AS



          1



            1



    DC. 24V



    AS-I BUS



    Single acting



    1421-05-S1-V2-AS



          1



            2



    DC. 24V



    AS-I BUS



    Double acting



    1421-05-S1-V3-AS



          1



            3



    DC. 24V



    AS-I BUS



    Three effects (mixture proof valve)



    Mechanical regulating version



    Model



    Sensor

    Solenoid valve



    Power



    Connection



    Remarks



    1421-05-S1-V1-M



           1



          1



    DC. 24V



    Cable connection



    Single acting



    1421-05-S1-V1-M



           2



          1



    DC. 24V



    Cable connection



    Single acting



    1421-05-S1-V2-M



           2



          2



    DC. 24V



    Cable connection



    Double acting



    1421-05-S1-V3-M



          3



          3



    DC. 24V



    Cable connection



    Three effects (mixture proof valve)



    1421-05-S1-V1-AS-M



           1



          1



    DC. 24V



    AS-I BUS



    Single acting



    1421-05-S1-V1-AS-M



           2



          1



    DC. 24V



    AS-I BUS



    Single acting



    1421-05-S1-V2-AS-M



           2



          2



    DC. 24V



    AS-I BUS



    Double acting



    1421-05-S1-V3-AS-M



           3



         3



    DC. 24V



    AS-I BUS



    Three effects (mixture proof valve)



    Installation

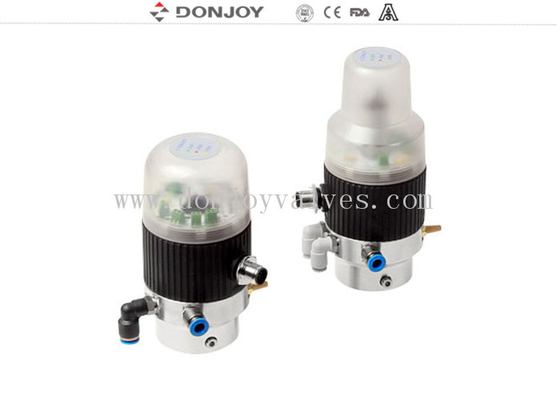

    Intelligent valve Positioner control unit for mini size regulating valves 0

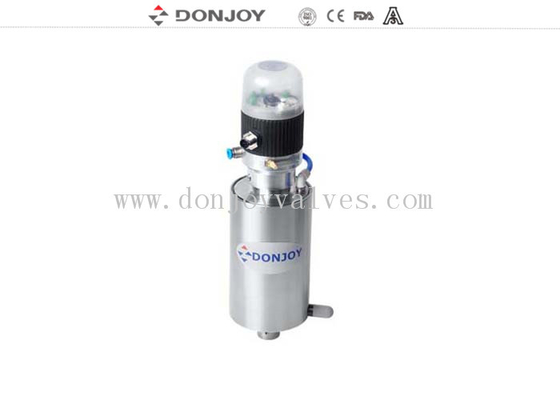

    Intelligent valve Positioner control unit for mini size regulating valves 1

    Product display

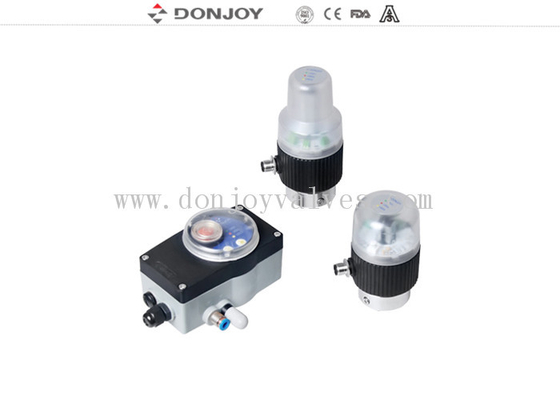

    Intelligent valve Positioner control unit for mini size regulating valves 2
