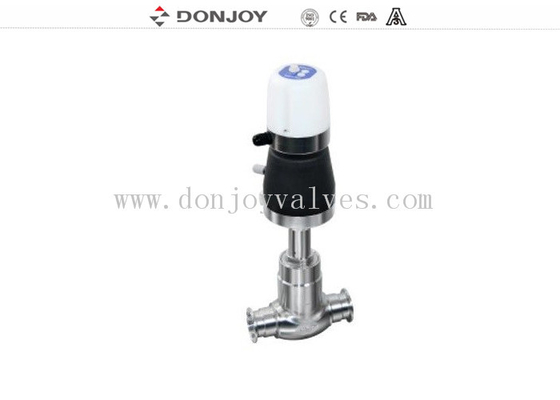

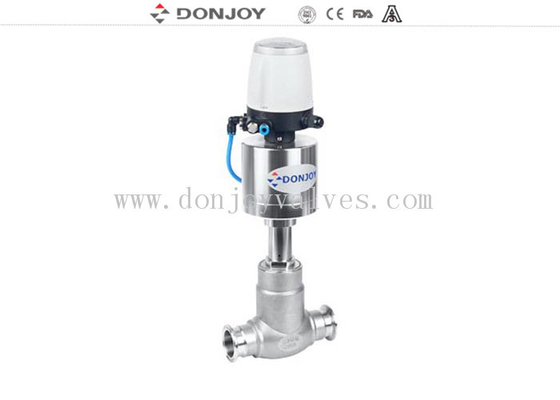

Globe Valve with Mini C-Top Basic / AS-1 Bus /IO LINK
Detail:
High purity globe Valve
Connection: Clamped, Thread, Welding,Flange
Standard: DIN,3A,SMS,ISO,IDF, RJT..
specifications:
| Product Name: |
3" ,Plastic Acuator globe valve+Mini C-Top,Regulation Valve, Steam Valve ,clamp connection |
| Valve Body Material: |
CF8M/316L |
| Seal Material: |
EPDM |
| Working Pressure: |
8 Bar, 10Bar(option). |
| Max. Working Temperature: |
120 degree ,180Degree(Option) |
| Availably size: |
DN10-DN80,1/2"-4" |
| Availably connection: |
Thread,Weld,Clamp,BSP/BSP/NPT |
| Operate: |
Pneumatic ,Control Head |
| Certificate: |
FDA,CE,ISO |
Operation Options for Globe Valve
1. Pnuematice: Plastic and stainless steel actuators
2. Control Head: Valve Positioner, Process controller, C-Top, Mini C-Top,Position Sensor
Applications:
Globe valve is a general switch in the automactic control system is widely used in printing, dyeing,bleaching, food,washing, chemical, water treatment,pharmacy and other automated machinery and equipment. It is featured with water hammer protection. Noise-free, reliable sealing performance.
Operationg Principles
1. Globe valve are operated automatically by a single-acting or a double-acting pneumatic acutor. By supplyiing compressed air, the shaft is moved to place the valve in the “open” or “closed” position.
2. The 180degree rotation of the pneumatic cylinder to realize the interchange of normally open and normally closed.
Target of competition
Donjoy ‘s vision is to be become leading supplier in fluid control, high purity sanitary valve &pump fields, with advanced technology and excellent quality.
Tag : Sanitary globe valves, Control valves, Donjoy valve
