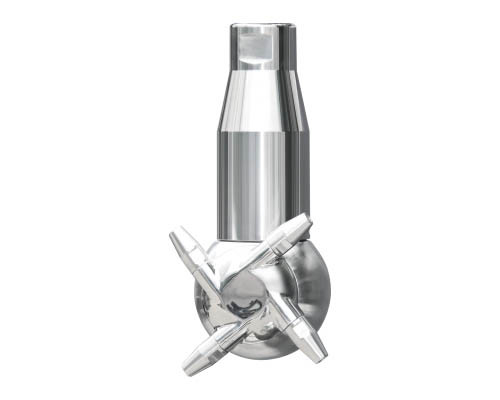

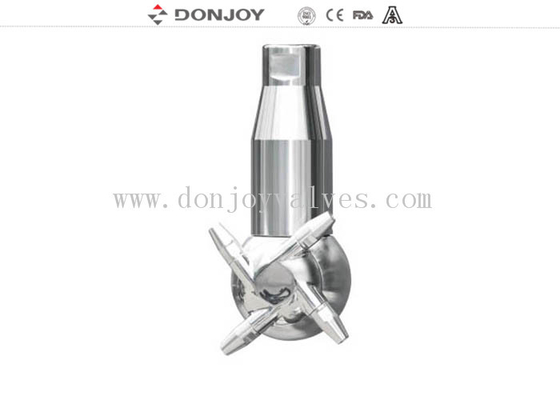

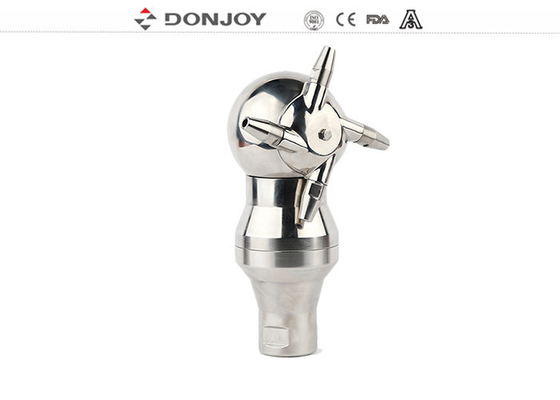

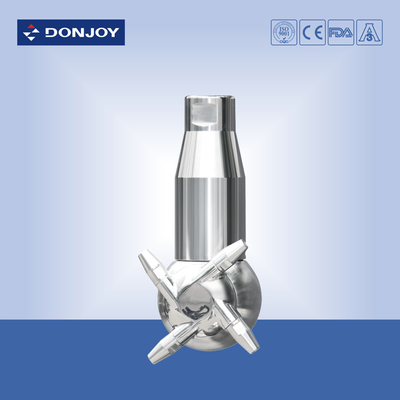

Rotary Jet Head 360° Inject Tank Cleaner 1.5" BSP Thread Connection

Large Image : Rotary Jet Head 360° Inject Tank Cleaner 1.5" BSP Thread Connection

Product Details:

Place of Origin:	CHINA
Brand Name:	DONJOY
Certification:	CE/FDA/ISO/3A

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Packaging Details:	Carton, Wooden Case
Payment Terms:	T/T,L/C, Credit Card

Contact Now

Detailed Product Description

Flow:	4-45 M³	Inlet Pressure:	4-10 Bar
Max Temperature:	95 ℃	Connection:	Thread BSP
Suggest Pressure:	6 Bar	Material:	316L, PTFE
Highlight:	stainless steel spray ball , spray ball for tank cleaning

Rotary Jet Head 360° Inject Tank Cleaner 1.5" BSP Thread Connection
Quick Detail

Cleaning Ball
Type: 360 Degree, 180 Degree, 270 Degree
Nozzle Size:5mm, 6mm, 7mm, 8mm, 4mm
Connection : Thread, NPT or BSP Thread , Clamp

Technical Parament
Flow :4-45m³
Inlet Pressure:4-10Bar
Suggest Pressure:6Bar
Max Temperature:90℃
Lubrication: Cleaning Medium

Specification

Product Name:	rotary jet head 360°,inject, Tank cleaner, 1.5" BSP Thread connection
Material:	SUS304/316L;PTFE
Flow:	4-45m³/h
Inlet Pressure:	4-10 bar
Suggest Pressure:	6 bar
Availably size:	1.5"-DN40
Connection way:	thread BSP,clamp
Max temperature:	95°C
Max environment temperature:	140°C
Application Scope:	Widely used in food and diary products ,Pharmaceutical, Chemicl treatment,Transport equipment, Beverage
Typical application:	process containers and reactor; tank; transport irrigation equipment; fermentation; yeast breeding
Advantages:	Self-cleaning; low liquid consumption; heath design
Typical cleaning methods:	fixed installation CIP system
Packaging Details:	Bubble pack for each. Outside packing are carton or plywood cases. Or as per the request of customers.
Delivery details:	Usually within 20 days after receiving T/T down payment.

Typical Application
1.Fixedinstallaiton CIP System
2.Process Containers and reator
3.Store tank
4.Transport tank equipment
5.Fermentation
6.Yeast Breeding

Operating Principle

1. Rotary injector is hygenic tank cleaner,with 360degree coverage in a given tank or process container, the rotary jet head is driven by flow liquid through impeller in the pressure and flow increase will increase the length of the jet and the impact to the tank or vessel surface

2. Rotary injector with unique self cleaning funciton, internal is completely cleaning.

Drawing

Delivery time: About one week/7 Days
Packing : If by air or by expres will put into the cartons. If by sea will packed in the woodencase
Payments: T/T,L/C,Western union. Credit Card
MOQ: 1PCS
If you need mor informations,Please do not hesitate to contact us.

Tag : Rotary head Jet, CIP Ball, Tank cleaning Ball.
