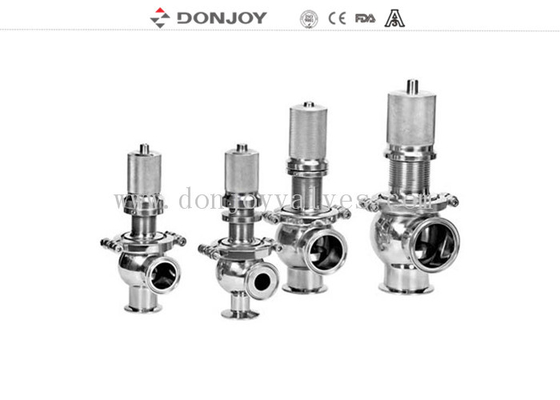

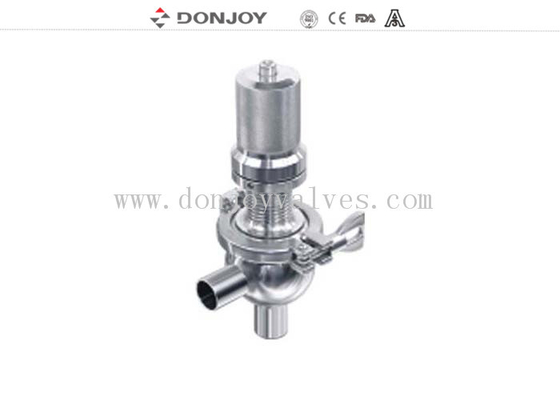

Sanitary EPDM Gasket 120℃ pressure Over Flow Valve Clamp Ends

Sanitary EPDM Gasket 120℃ pressure Over Flow Valve Clamp Ends

    • Sanitary EPDM Gasket 120℃ pressure Over Flow Valve Clamp Ends
    • Sanitary EPDM Gasket 120℃ pressure Over Flow Valve Clamp Ends
  • Sanitary EPDM Gasket 120℃ pressure Over Flow Valve Clamp Ends

    Product Details:

    Place of Origin: CHINA
    Brand Name: DONJOY
    Certification: CE/FDA/ISO/3A
    Model Number: No.VAQ100S1

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Packaging Details: Carton, Wooden Case
    Delivery Time: 5-30 working days
    Payment Terms: T/T,L/C, Credit Card
    Supply Ability: 1000pcs per month
    Contact Now
    Detailed Product Description
    Name: Pressure Safety Valve SIZE: 1"-4"
    Stanadard: DIN,3A,SMS,ISO Connection: Welded, Clamped,Thread,
    Polished: Mirror, Matte Inlet Pressure: 8 Bar
    Outlet Pressure: 0-10bar KV Value: 4-70 M3/h
    High Light:

    120℃ Over Flow Valve

    ,

    EPDM Over Flow Valve

    ,

    120℃ pressure release valve

    Sanitary pressure safety valve over flow valve EPDM gasket 120℃ temperature clamp ends


    Quick Detail
    Pressure Safety Valve, Over flow Valve
    Type: Manula, Pnuematic



    Technical Specifications

    ◆Size:1"-4",DN25-DN100
    ◆KV Value:8.5-180m3/h
    ◆Max. temperature:-20℃到150℃(depend on seal material)
    ◆Set pressure:(0-3bar/0-6bar/6-10bar)
    ◆Material:304/316L
    ◆Certification:
    safety valve manufacturing license for special

    Specification

    Product Name:

    manual pressure safety valve

    Valve Body Material:

    SS304 or SS316L

    Seal Material:

    EPDM,NBR,FPM

    Max.Working Pressure:

    8Bar 116PSI

    Max. Working Temperature:

    120 degree C

    Available size:

    DN25-DN80 or 1” - 3"

    Available connection:

    Flange,Clamp,Welded

    Available standard:

    DIN,INCH,IDF,3A,SMS

    Operate:

    Pneumatic ,Manual

    Certificate:

    FDA,CE



    Applications:
    1. Safety valve is used to protecting pipe,pump from over pressure
    2. Sanitary and safe design is to prevent operation danger and equipment break down due to pressure
    3. With sanitary design stainless steel, the valve is best choice for protection equipment in diary ,food, beverage, pharmacy and fine chemical industries.


    Operating Principle:
    1. Through the spring to adjustable the pressure.
    2. When the pressure in the pipe exceeds to the specified pressure, the valve open automatically to make the liquid flow in order to reduce pressure.



    Drawing

    Sanitary EPDM Gasket 120℃ pressure Over Flow Valve Clamp Ends 0

    Sanitary EPDM Gasket 120℃ pressure Over Flow Valve Clamp Ends 1

    Products

    Sanitary EPDM Gasket 120℃ pressure Over Flow Valve Clamp Ends 2

    Tag : Donjoy Valve, Sanitary valve, Pressure reducing Valve
