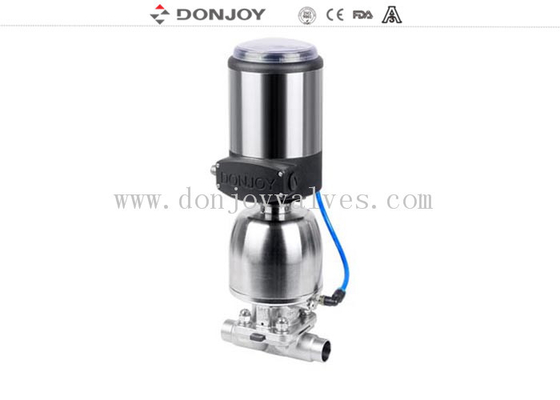

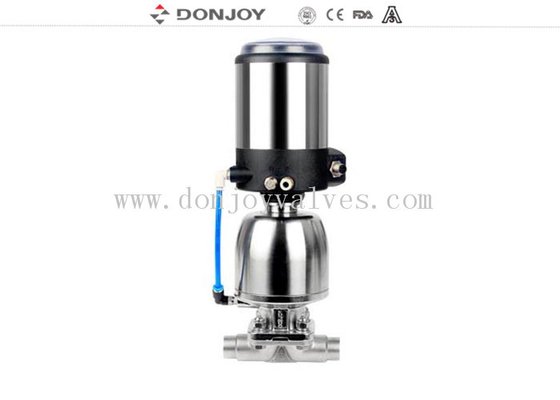

Stainless steel 316L / 304 Regulating Diaphragm Valve for flow control

Large Image : Stainless steel 316L / 304 Regulating Diaphragm Valve for flow control

Product Details:

Place of Origin:	CHINA
Brand Name:	DONJOY
Certification:	CE,3A,FDA
Model Number:	NO.VTJ111Q1

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Packaging Details:	carton box
Payment Terms:	T/T, LC, Credit Card
Supply Ability:	20 sets 30 working days

Contact Now

Detailed Product Description

Product Name:	Regulating Diaphragm Valve	Size Of Panel:	DN25-DN100
Operation:	Pneumatic	Materials:	Stainless Steel
Feature:	With Actuator	Gasket:	EPDM
Highlight:	ball valve diaphragm , pressure reducing valve

Stainless steel 316L / 304 Pneumatic Regulating diaphragm Valve for flow control

Specifications

Product Name:	Pneumatic Regulating Diaphragm Valve with Control Head
Valve Body Material:	AISI316L
Seal Material:	EPDM
Working Pressure:	10Bar
Max. Working Temperature:	120 degree
Available size:	DN20-DN100 or 1" - 4"
Available connection:	CLAMP, DIN, SMS
Air Operation:	can be configured to intelligent/C-TOP controller
Operate:	Pneumatic
Function	Flow regulating
Certificate:	FDA,CE, 3A
Application scope	Dairy, food, beverage, pharmacy, cosmetic etc

Description
Options for Regulating Valve
Heat Jacket type regulating valve
Diaphragm-Aseptic Regulating valve
Non-Retention Regulating Valve
Aseptic Regulating valve
Deadline regulating valve
Manual Regulating valve
High pressure actuator regulating valve
Body Combination Type: 20,30,11,12,21A,22A

Operating Principles

Adjustable diaphragm valve is mainly used in biomedical fluid flow control system, the flow rate adjustment the effect of section, the regulator has high standard diaphragm valve all clean characteristics fluid after adjustment body conveying cavitation will be less.
The position of valve tapered plug is adjusted by position.So as to control flow rate through the valve(PD).Also intelligent process controller can control position and flow rate(PID)

Technical feature
Size: DN25 - DN100 or 1" - 4"
Working temperature: -10℃ to + 120℃ ( EPDM ), 14℉
Working pressure: 10 bar / 145 PSI
Compressed air pressure: 6 - 8 bar / 87 - 116 PSI
Connection of pneumatic actuator: G1/8" (BSP)
Process signal: 4 - 20mA, 0 - 10V (optional)

Diaphragm regulating valve KV value curve flow

Stainless steel 316L / 304 Regulating Diaphragm Valve for flow control 0

Stainless steel 316L / 304 Regulating Diaphragm Valve for flow control 1

Stainless steel 316L / 304 Regulating Diaphragm Valve for flow control 2

Stainless steel 316L / 304 Regulating Diaphragm Valve for flow control 3
