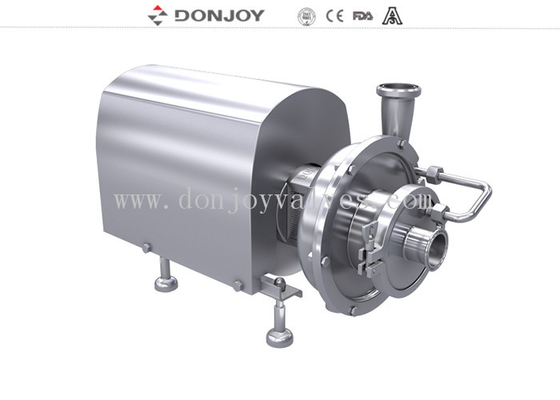

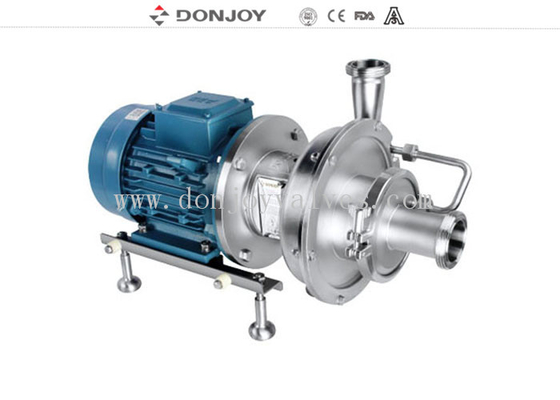

ZLX-30 304 self priming centrifugal pumps for oil and wine processing

Large Image : ZLX-30 304 self priming centrifugal pumps for oil and wine processing

Product Details:

Place of Origin:	CHINA
Brand Name:	DONJOY
Certification:	CE,3A,FDA
Model Number:	ZLX-30

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	Wooden box
Delivery Time:	10-30 working days
Payment Terms:	T/T, LC, Credit Card
Supply Ability:	20 sets 30 working days

Contact Now

Detailed Product Description

Materials:	Sanitary Self - Priming Pump	Flow:	10T/60M/5.5KW
Mechanical:	Single Sealing Parts	Inlet:	2" Thread/Clamp/Ferrule
Outlet:	1" Thread/Clamp/Ferrule	Medium:	Flow Tranfering And Controlling
Highlight:	self priming pump , high pressure pumps

ZLX-30 304 self priming centrifugal pumps for oil and wine processing

Description
Options
1. Mechanical seal: C/SIC/EPDM
2. Gasket: viton/NBR
3. Connection: Thread, Clamp, Flange(DIN, SMS, RJT, IDF)

Specifications

Product Name:	ZLX-30 304 self priming centrifugal pumps for oil and wine processing
Valve Body Material:	Stainless steel 304 / 316L
Seal Material:	EPDM (Standard, FDA approval) FPM(Viton) and NBR
Max. Flow:	35 m³/h
Max. Speed:	3600 min-1
Max. Head:	42H(m)
CIP selection:	As per real situation
Driving mode:	By impeller installed on the inlet.
Mechanical seal:	C/SIC/EPDM
Sealing type:	Flushed double mechanical seal/single mechanical seal (standard)
Motor:	ABB / domestic is optional
Motor Frequency:	50HZ, 60HZ
Surface treatment:	Inner polished and Sandblast outside
Application structure:	KS/BS
Available connection:	Tri-Clamp, Thread, Flange
Available standard:	DIN, SMS, 3A, RJT, ISO/IDF
Operated:	Electic
Low discharge option:	Low discharge/diaphragm valve/ball valve/butterfly valve
Certificate:	3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO9001/2008
Application scope:	Dairy,food, beverage, pharmacy, cosmetic, etc
Packaging Details:	Plywood case or customerized. Or as per the request of customers.
Delivery details:	Usually within 20 days after receiving T/T down payment.

Applications
1.This pump is a sanitary lateral design self priming pump,it's suitable for food processing, phamacy and chemical industry.
2.The pump is designed a side way pipe between inlet and outlet
3.It is specially designed for pumpling mterials containning air or gas, and it can also be used for negative sution with prior priming as well as with filtration equipment
4. It can be sued for wine, oil,syrups, volatile products such as alcohol,and other solvents or with products at temperatures close to boiling point.However, the main use of this pump is for cip recover.
Competitive Advantage
“DONJOY is the only company that pass nine series of products by American 3A certification organization in Asian sanitary pumps and valves field.”

Model Selection Table
ZLX-30 304 self priming centrifugal pumps for oil and wine processing 0
