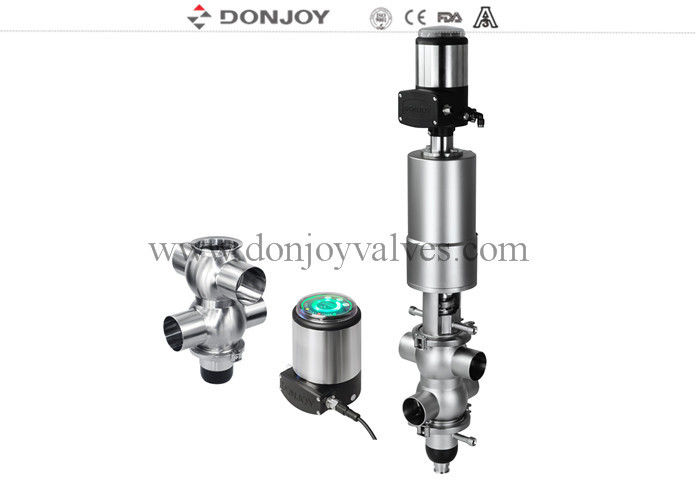

Sanitary SS316L Mixproof Double Seat Valve DN40-DN150 with Pneumatic Intelligent Positioner

Large Image : Sanitary SS316L Mixproof Double Seat Valve DN40-DN150 with Pneumatic Intelligent Positioner

Product Details:

Place of Origin:	CHINA
Brand Name:	DONJOY
Certification:	CE,3A,FDA
Model Number:	NO.VFT101Q1

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	carton box
Payment Terms:	T/T,LC,Credit Card

Contact Now

Detailed Product Description

Product Name:	Mixproof Double Seat Regulating Valve With Intelligent Positioner	Size:	DN40 - DN150 Or 1.5" To 6"
Operation:	Pneumatic With Intelligent Positioner	Materail:	SS316L
Compressed Air Pressure:	5.5bar-7bar	Air Supply Connection:	R1/8''(BSP)
Gasket:	EPDM / HNBR / VITON	Feature:	Precise Control
Highlight:	SANITARY DOUBLE SEAT MIXPROOF VALVE , SANITARY SEAT MIXPROOF VALVE , DOUBLE SEAT MIXPROOF VALVE

Donjoy SANITARY DOUBLE SEAT VALVE / MIXPROOF VALVE

Product Description

Donjoy Mixproof Double Seat Reversing Seat Valve with Intelligent Positioner

Specifications

Product Name:	Mixproof Double Seat Reversing Seat Valve with Intelligent Positioner
Valve Body Material:	AISI316L
Seal Material:	EPDM / FPM / HNBR (Optional)
Max. Working Pressure:	10Bar
Max. Working Temperature:	130 degree C
Available size:	DN40-DN150 or 1.5" - 6"
Available connection:	CLAMP, DIN, SMS
Air Operation:	Can be configured to intelligent positioner / C-TOP controller
Operate:	Pneumatic
Characteristic:	Precise regulation
Valve body:	Whole valve body or clamp valve body connection
Basic cleaning:	Seat lift cleaning
Pressure balance:	Upper stem balance / lower stem balance / upper and lower stem balance
Certificate:	FDA, CE
External surface:	CNC fine machining

Sanitary Double Seat Mixproof Valve

Sanitary Double Seat Mixproof Valve Features

Continuous production capabilities, CIP cleaning and liquid processing at the same time
Leakage chamber and the leakage detector could be self-cleaned by lifting off the seat
Two independent plug seals
One-piece Body & Clamped Body for choose from
A wide selection of different body combinations
Easy disassembly by releasing the clamp
Cleaning/Sterilization Parts for Options
Ease of maintenance and service
100% hydraulic tested / 100% inspected

Sanitary Double Seat Mixproof Valve Body

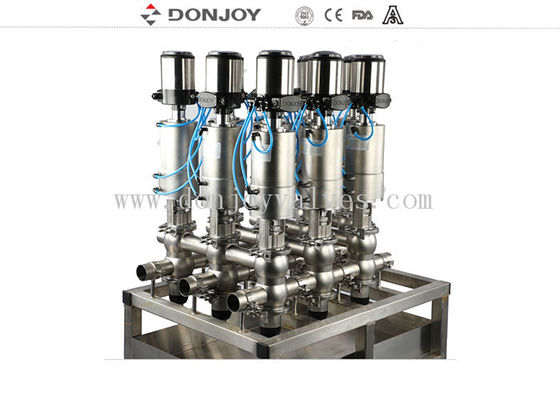

Sanitary Double Seat Mixproof Valve Different Body

Sanitary Double Seat Mixproof Valve Working Principle

Lift type mixing proof valve is remotely operated by compressed air. It is normally closed before running
The mixing proof valve is constructed with two independent plugs, which will form a leakage chamber to atmosphere under normal working status
When occasional failure causes leakage happens, the medium will flow into the chamber and be discharged at the outlet port
The leakage chamber is closed when the valve is operating, the medium can flow through one pipeline to another
This valve can be clean in place. Many options of CIP and SIP combination are available to users
Clean system can clean the upper, lower stem and leakage chamber, which ensure the valve to be high hygienic
Effectively cleaning system makes the fluid that special for (CIP) clean in place directly wash all the inside calve body, it takes shorter time than common cleaning system
Another benefit of the high cleaning system is that the lift type mixing proof valve can be applied to aseptic processing

Sanitary Double Seat Mixproof Valve Dimension

Mixing proof valves Double seat valves Donjoy mixproof valves
